Description
Overview

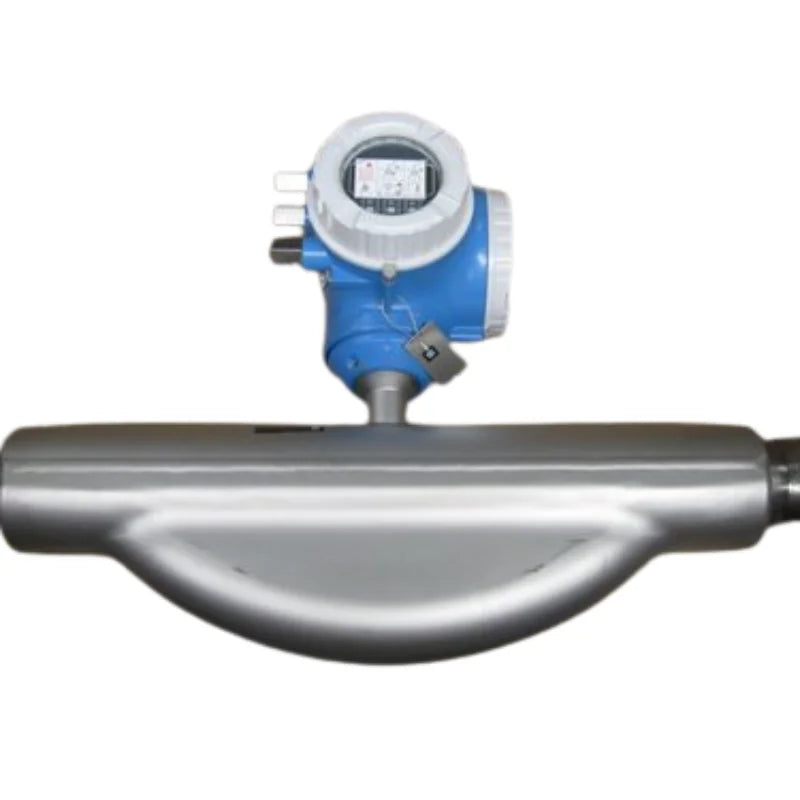

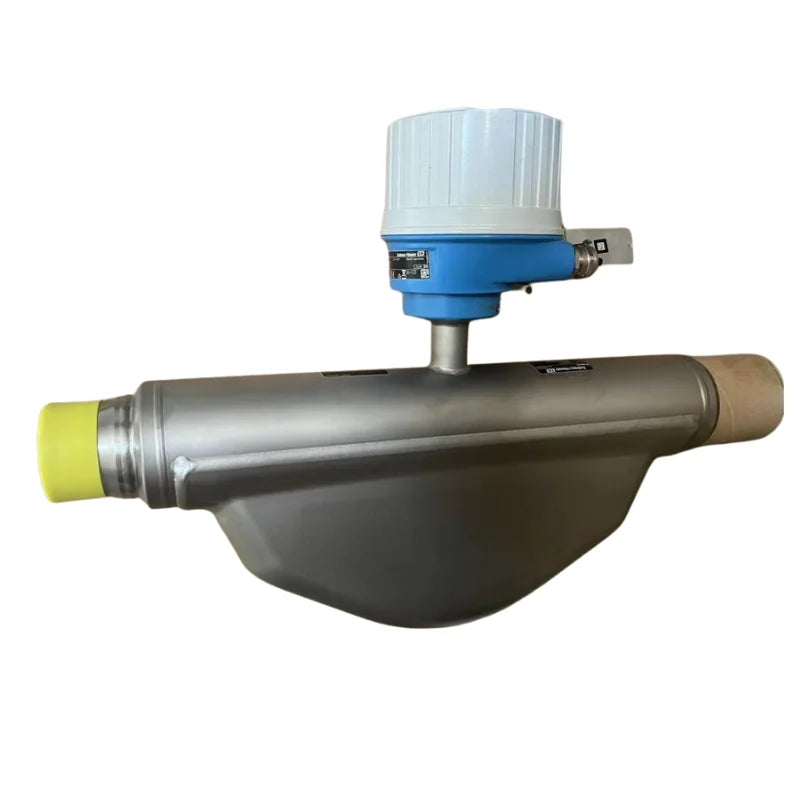

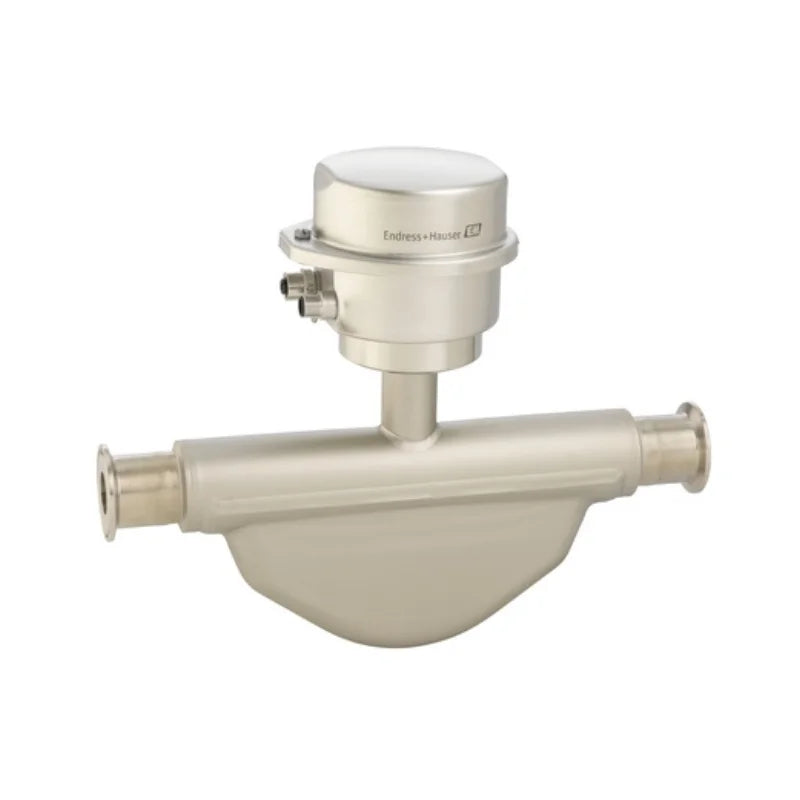

Endress+Hauser 8E1C Proline Promass E100 Coriolis Flowmeter is a Mid-range Coriolis flowmeter with an ultra-compact transmitter.
Specs at a glance
* Max. measurement error Mass flow (liquid): ±0.15 % (standard), ±0.10 % (option) Volume flow (liquid): ±0.15 % Mass flow (gas): ±0.50 % Density (liquid): ±0.0005 g/cm³ * Measuring range 0 to 180 000 kg/h (0 to 6600 lb/min) * Medium temperature range –40 to +150 °C (–40 to +302°F) * Max. process pressure PN 100, Class 600, 63K * Wetted materials Measuring tube: 1.4539 (904L) Connection: 1.4404 (316/316L)
Application
The robust Promass E has a long-standing reputation as reliable solution accurately measuring liquids and gases in a wide range of standard applications. Its ultra-compact transmitter delivers full performance on the smallest footprint and enables seamless system integration, making Promass E 100 the preferred choice for skid builders, equipment manufacturers and system integrators. Heartbeat Technology enables measurement reliability and compliant verification. * Measuring principle operates independently of physical fluid properties such as viscosity or density * Accurate measurement of liquids and gases for a wide range of standard applications. Device properties * Compact dual-tube sensor * Medium temperature up to +150 °C (+302 °F) * Process pressure: up to 100 bar (1450 psi) * Robust, ultra-compact transmitter housing * High ingress protection: IP69 * Local display available
Benefits
* Cost-effective – multipurpose device; an alternative to conventional volumetric flowmeters * Fewer process measuring points – multivariable measurement (flow, density, temperature) * Space-saving installation – no in-/outlet run needs * Space-saving transmitter – full functionality on the smallest footprint * Time-saving local operation without additional software and hardware – integrated web server * Integrated verification – Heartbeat Technology
Specification
item
value
Warranty
1 Year
Customized support
OEM
Place of Origin
Switzerland
Brand Name
Endress+Hauser
Model Number
Promass E100
Type
Coriolis meters, Coriolis flowmeter
Measuring Principle
Coriolis
Product Headline
Flowmeter with minimized total cost of ownership and an ultra-compact transmitter. Accurate measurement of liquids and gases for a wide range of standard applications.
Sensor Features
Cost‐effective – multi‐purpose device; an alternative to conventional volumetric flowmeters. Fewer process measuring points – multivariable measurement (flow, density, temperature). Space‐saving installation – no in-/outlet run needs. Compact dual-tube sensor. Medium temperature up to +150 °C (+302 °F). Process pressure up to 100 bar (1450 psi).
Transmitter Features
Space‐saving transmitter – full functionality on the smallest footprint. Time‐saving local operation without additional software and hardware – integrated web server. Integrated verification – Heartbeat Technology. Robust, ultra-compact transmitter housing. Highest degree of protection: IP69. Local display available.
LR approval, DNV approval, ABS approval, BV approval, CCS approval
Pressure Approvals And Certificates
PED, CRN
Material Certificates
3.1 material
Hygienic Approvals And Certificates
3-A, EHEDG, cGMP
