[shortdesc]16x PoE+ GE ports, 8x GE SFP, 4x 1/10G SFP+ uplinks, Network Advantage, rack-mountable[/shortdesc]
[properties]
| Model |
Cisco Catalyst IE-9310-16P8S4X-A |
| Product Type |
Rugged Managed Ethernet Switch |
| Ports |
28 total (16x 10/100/1000 PoE+, 8x 100/1000 SFP, 4x 1/10G SFP+ |
| Software License |
Network Advantage |
| PoE Budget |
Up to 480W (with dual 400W power supplies |
| Forwarding Rate |
95.23 Mpps |
| Switching Capacity |
128 Gbps full-duplex |
| DRAM / Flash |
4 GB DRAM / 8 GB onboard flash |
| Form Factor |
1RU rack-mountable, fanless design |
| Operating Temperature |
-40°C to 75°C (-40°F to 167°F |
| Dimensions (H × W × D |
1.72 × 17.5 × 14.0 in (with PWR-RGD-AC-DC-H or PWR-RGD-LOW-DC-H; 1.72 × 17.5 × 15.18 in (with PWR-RGD-AC-DC-250; 1.72 × 17.5 × 15.57 in (with PWR-RGD-AC-DC-400 |
| Weight |
10.6 lb (4.81 kg |
| Power Consumption |
105W (system |
| Mean Time Between Failures (MTBF |
265,827 hours |
[/properties]
[specifications]
| Layer Support |
Layer 2 and Layer 3 (static, RIP, OSPF, BGP, IS-IS, EIGRP with Network Advantage |
| Redundancy |
REP, PRP, HSR, MRP, dual redundant PSU support |
| Security |
MACsec-256 encryption, Cisco TrustSec, Cisco Trust Anchor, Cisco Cyber Vision |
| Management |
Cisco Catalyst Center, WebUI, RESTCONF, NETCONF, SNMP, CLI |
| Industrial Standards |
EN 61000-6-2, EN 61000-6-4, IEC 61850-3, IEEE 1613, UL/CSA 62368-1 |
| Environmental Rating |
IP30, fanless convection cooling |
| Altitude |
Up to 15,000 ft (no derating, 40,000 ft with derating |
| Relative Humidity |
5% to 95% non-condensing |
| Shock & Vibration |
IEC 60068-2-6, -27, -31, -32, -64 |
| Certifications |
IEC/ANSI/ISA-62443, FIPS 140-2, Common Criteria, NEMA TS2:2021 |
[/specifications]
[accesories]
| Included |
Rack-mount kit (standard, User documentation |
| Optional – Power Supplies |
PWR-RGD-LOW-DC-H (150W, PWR-RGD-AC-DC-H (150W, PWR-RGD-AC-DC-250 (250W, PWR-RGD-AC-DC-400 (400W |
| Optional – Rack Kits |
RM-RGD-19IN (19” rack, RM-RGD-23IN (23” NEBS, RM-RGD-ETSI (ETSI rack |
| Optional – Memory |
SD-IE-16GB (16 GB SD card |
| Optional – Cables |
Not applicable (stacking not supported on IE-9310 |
[/accesories]
High-Performance Rugged Switching for Demanding Industrial Networks

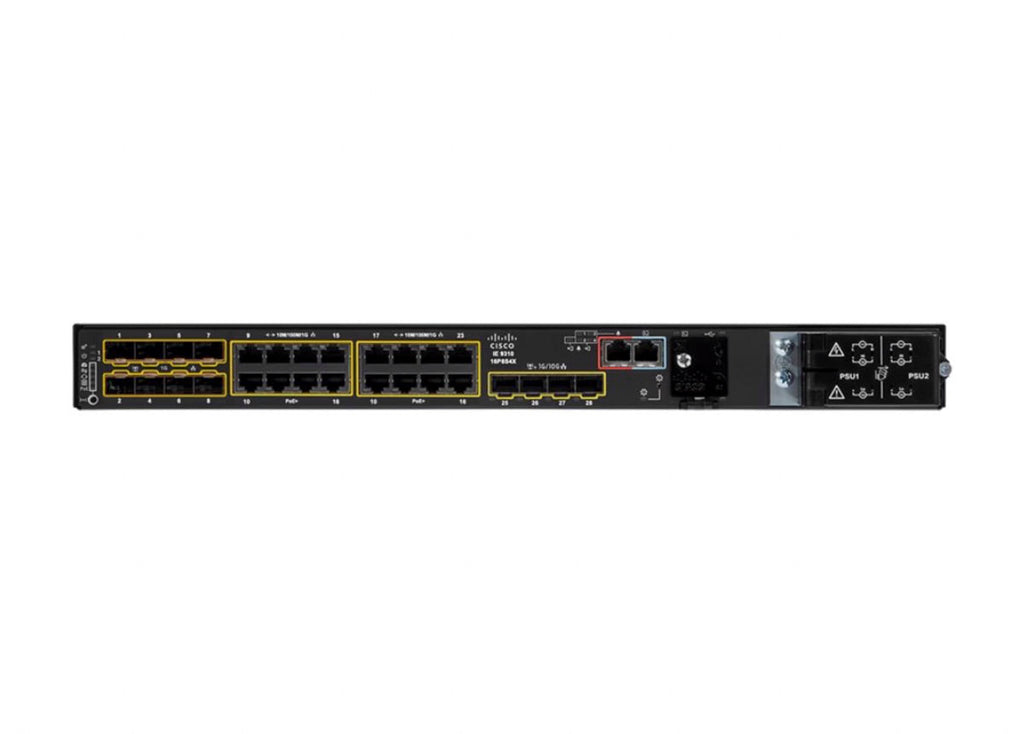

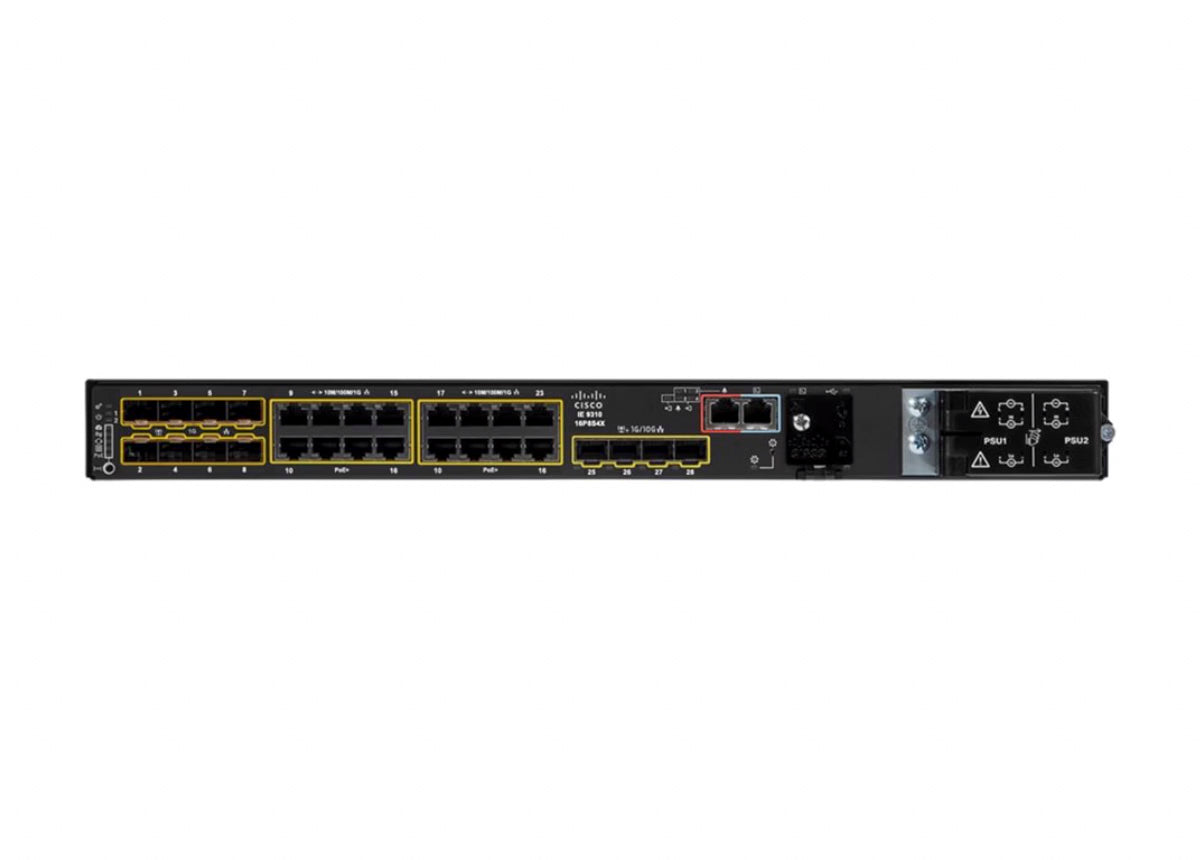

The Cisco Catalyst IE-9310-16P8S4X-A is a ruggedized 28-port Layer 3 switch built for mission-critical industrial and extended enterprise environments. With 16 PoE+ Gigabit Ethernet ports, 8 Gigabit SFP downlinks, and 4 high-speed 1/10G SFP+ uplinks, it delivers reliable connectivity and advanced security in a compact 1RU rack-mountable form factor. Powered by Cisco IOS XE with Network Advantage, it enables advanced routing, segmentation, and automation capabilities essential for modern OT/IT convergence.
Key Benefits & Features
-
Industrial-Grade Design: Operates in harsh environments (-40°C to 75°C with fanless convection cooling and resistance to shock, vibration, and electrical noise.
-
High PoE Power: Supports up to 480W PoE budget for IP cameras, Wi-Fi 6 access points, and IoT devices with Perpetual and Fast PoE functionality.
-
Advanced Security: Built-in Cisco Trust Anchor, MACsec-256 encryption, Cisco Cyber Vision, and TrustSec segmentation for zero-trust industrial networks.
-
Flexible Management: Cisco Catalyst Center, intuitive WebUI, and API-driven automation for simplified deployment and visibility.
-
High Availability: Supports REP, MRP, HSR, PRP, and dual redundant power supplies for maximum resiliency.
Ideal Use Cases
- Industrial automation and control networks in manufacturing and utilities
- Smart cities, transportation, and energy infrastructure
- Outdoor and hazardous environments requiring ruggedized design
- Secure OT/IT convergence for critical infrastructure
- High-bandwidth deployments requiring PoE+ and 10G uplinks
Technical Specifications
-
Total Ports: 28 (16x 10/100/1000 PoE+, 8x 100/1000 SFP, 4x 1/10G SFP+
-
Software License: Network Advantage
-
PoE Budget: Up to 480W with dual 400W supplies
-
Performance: 95.23 Mpps forwarding, 128 Gbps switching capacity
-
Memory: 4 GB DRAM, 8 GB flash
-
Operating Temperature: -40°C to 75°C (-40°F to 167°F
-
Form Factor: 1RU rack-mount, fanless design
-
Dimensions: 1.72 × 17.5 × 14.0 in (150W PSUs; 15.18 in (250W PSU; 15.57 in (400W PSU
-
Weight: 10.6 lb (4.81 kg
-
Resiliency: Dual AC/DC inputs, REP, PRP, HSR, MRP support
Upgrade Your Network with Rugged Reliability
Built for the most demanding environments, the Cisco Catalyst IE-9310-16P8S4X-A combines industrial durability with enterprise-grade performance. Buy now to secure and scale your critical infrastructure.
