[shortdesc]

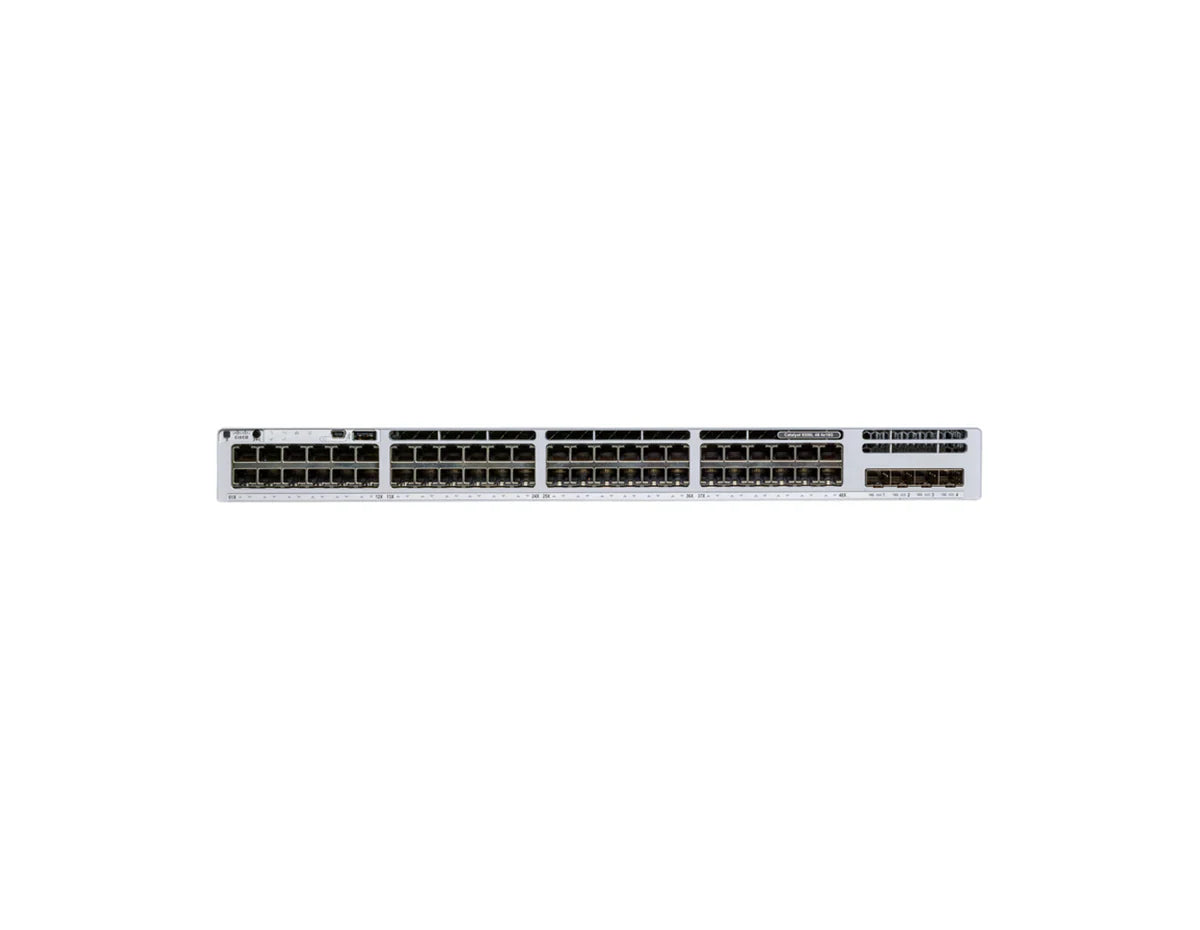

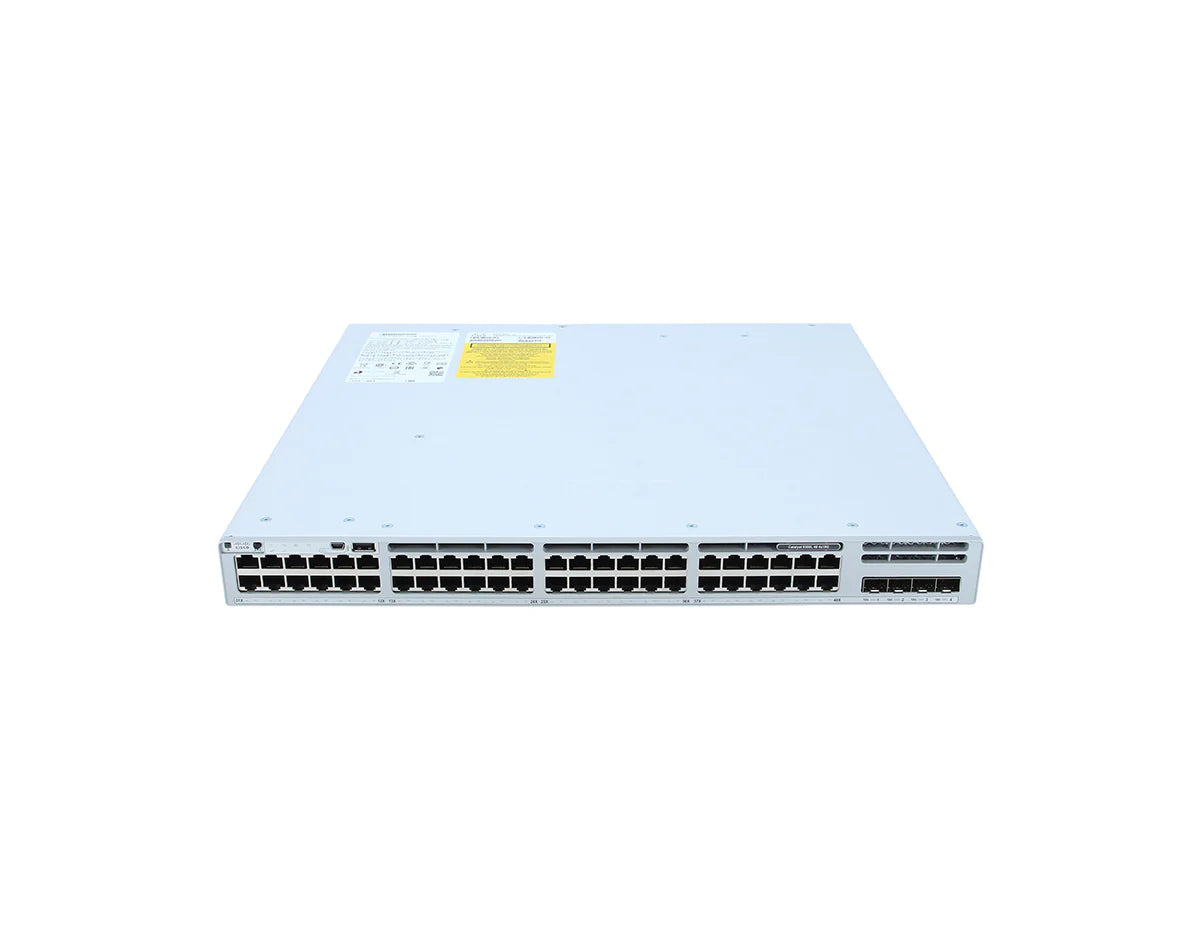

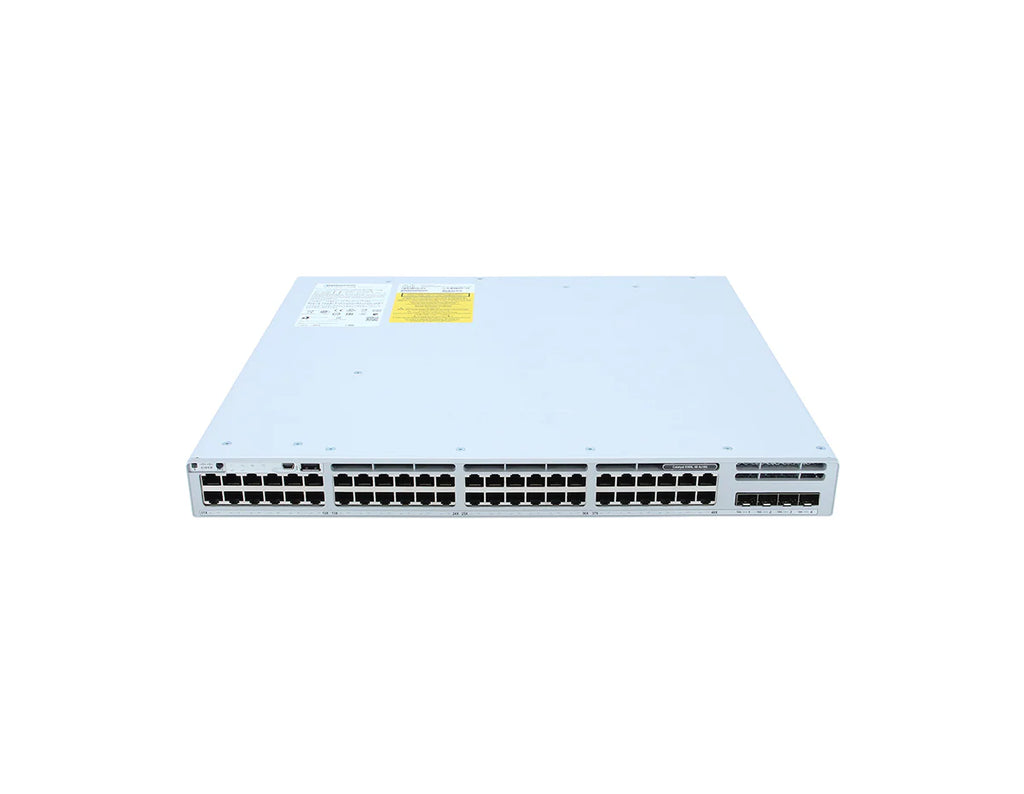

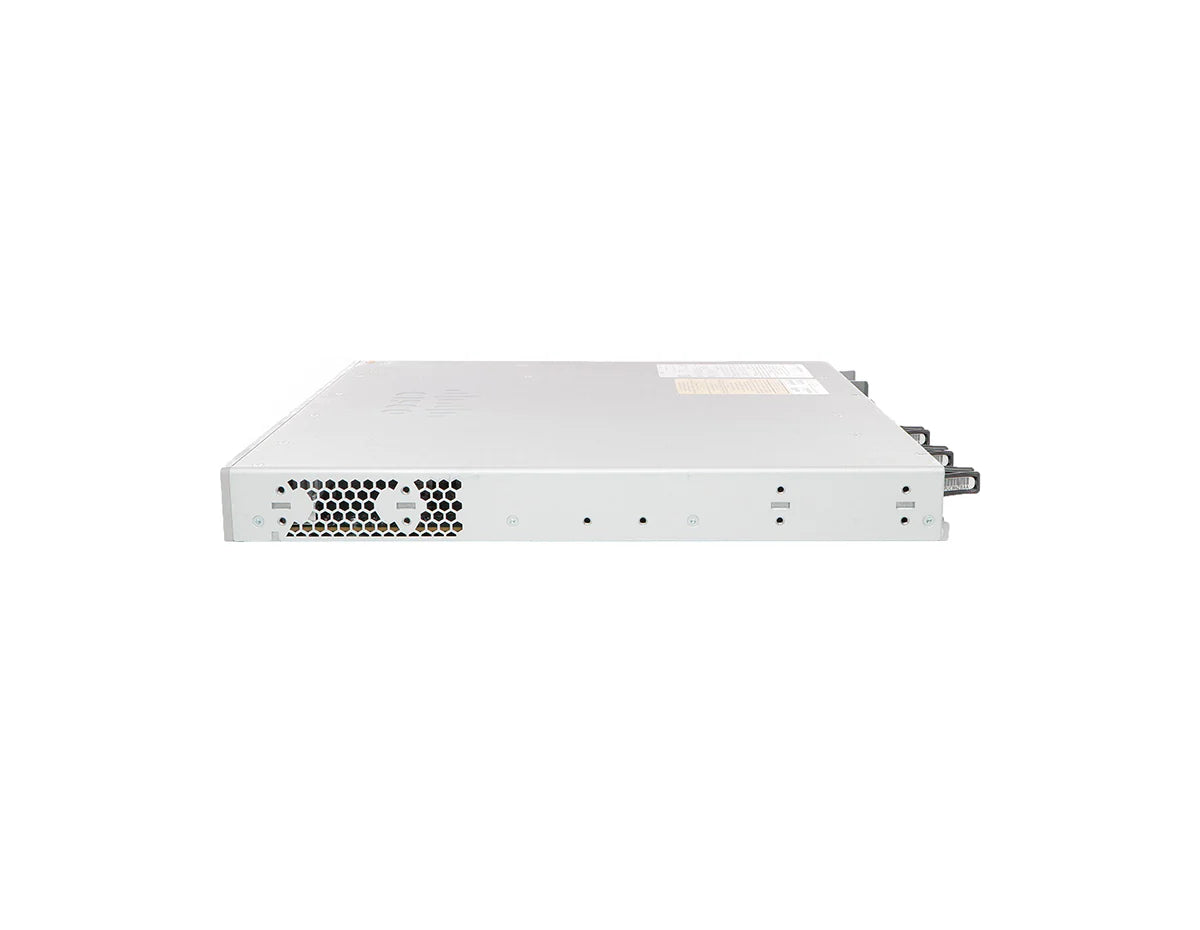

Cisco C9300L-48T-4X-A is a 48× 1G non-PoE Layer 3 switch with 4× 10G SFP+ uplinks, StackWise-320 support, and a Network Advantage license.
[/shortdesc]
[properties]
| Properties |
C9300L-48T-4X-A |
| Description |
Catalyst 9300L 48-port 1G copper with fixed 4x10G/1G SFP+ uplinks, data-only, Network Advantage |
| Product Family |
Catalyst 9300L |
| Product Type |
Ethernet Switch |
| Number of Ports |
48 |
Downlinks total 10/100/1000
or PoE+ copper ports |
48 port Data (non-PoE |
| Uplink configuration |
4x 10G/1G fixed uplinks |
| Cisco IOS Software |
Network Advantage |
Default primary AC
power supply |
PWR-C1-350WAC-P |
Available PoE power with
additional secondary
power supply |
No PoE |
| Fans |
Three field-replaceable fans |
Chassis + FEP +
Fan Dimensions (HxWxD Inches |
1.73 x 17.5 x 17.7 |
[/properties]
[specifications]
| Specifications |
C9300L-48T-4X-A |
| Console Ports |
RJ-45 console (RJ-45-to-DB9 cable; USB console supported on some revisions |
| DRAM |
8 GB |
| Flash Memory |
16 GB |
| Switching capacity |
176 Gbps |
| Forwarding rate |
130.95 Mpps |
| MAC addresses |
32,000 |
Operating Temperature
Up to 5,000 ft (1500 m |
-5°C to +45°C |
Operating Temperature
Up to 10,000 ft (3000 m |
-5°C to +40°C |
| Safety |
UL 60950-1
CAN/CSA-C222.2 No. 60950-1 EN 60950-1
IEC 60950-1
AS/NZS 60950.1
IEEE 802.3 |
Electromagnetic compatibility
certifications |
47 CFR Part 15
EN 300 386 V1.6.1 EN 55032 Class A CISPR 32 Class A
EN61000-3-2
EN61000-3-3
ICES-003 Class A
TCVN 7189 Class A V-3 Class A
CISPR 35
EN 300 386
EN 55035
TCVN 7317
V-2/2015.04
V-3/2015.04
CNS13438
KN32
KN35
QCVN 118:2018/BTTTT
VCCI-CISPR 32 Class A |
EMC
compliance |
FCC Part 15 (CFR 47 Class A ICES-003 Class A
EN 55032 Class A
CISPR 32 Class A
AS/NZS 3548 Class A
BSMI Class A
(AC input models only
VCCI Class A
EN 55024, EN300386,
EN 61000-3-2, EN 61000-3-3
EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6 |
| Environmental |
Reduction of Hazardous Substances (ROHS 5 |
[/specifications]
[accesories]
| Stacking Support |
StackWise-320 |
| Stacking bandwidth support |
320 Gbps |
| Stacking hardware |
C9300L-STACK-KIT or C9300L-STACK-KIT2 |
Number of
members |
8 |
| Supported stack members |
Other C9300L and C9300LM models with the same license level |
| Stacking accessories |
|
| STACK-T3-50CM |
Data stack 50cm cable (default cable with C9300L Stack Kit |
| STACK-T3-1M |
Data stack 1m cable (cable option with C9300L Stack Kit |
| STACK T3-3M |
Data stack 3m cable (cable option with C9300L Stack Kit |
[/accesories]
At a Glance
-
Ports: 48 × 1G Ethernet (non-PoE
-
Uplinks: 4 × 10G SFP+ fixed uplinks
-
Stacking: StackWise-320 (up to 8 units, 320 Gbps bandwidth
-
Software: Network Advantage license (advanced Layer 3, SD-Access ready
Product Overview
The Cisco C9300L-48T-4X-A is an enterprise-grade Layer 3 switch for high-performance access in campus and branch environments. It provides 48 non-PoE Gigabit ports with four 10G SFP+ uplinks and supports StackWise-320 for simplified, resilient operations. With Network Advantage, it enables advanced routing, segmentation, and automation on Cisco IOS XE and UADP ASIC.
Technical Specifications
Hardware
-
Model: C9300L-48T-4X
-
Ports: 48 × 10/100/1000 Ethernet ports (non-PoE
-
Uplinks: 4 × 10G SFP+ fixed uplink ports
-
Stacking Support: StackWise-320
-
Stacking Bandwidth: 320 Gbps
-
Power Supply: 1 × 350W AC (standard efficiency
-
Fan Modules: 3 × field-replaceable fans
-
Physical Dimensions: 1.73 × 17.5 × 17.7 in (4.4 × 44.5 × 44.9 cm
-
Weight: 15.41 lbs (7.0 kg
Performance
-
Switching Capacity: 176 Gbps
-
Forwarding Rate: 130.95 Mpps
-
DRAM: 8 GB
-
Flash Memory: 16 GB
-
VLAN Support: 4094 VLANs
-
MAC Address Table Size: 32,000 entries
-
Jumbo Frame Support: Up to 9198 bytes
Software & Features
-
Operating System: Cisco IOS XE
-
License Tier: Network Advantage
-
Routing Protocols: OSPF, EIGRP, BGP, IS-IS, VRF
-
Security Features: MACsec (AES-128/256, 802.1X, ACLs
Frequently Asked Questions (FAQ
Can the C9300L-48T-4X-A be stacked with other Catalyst 9300L switches?
Yes. This model supports StackWise-320 and can stack with other compatible Catalyst 9300L/C9300LM switches, up to 8 units.
Does this switch support Cisco StackPower?
No. StackPower is not supported on Catalyst 9300L models. Power redundancy is via optional dual PSUs.
How can I manage the switch?
Manage via CLI (console, Cisco DNA Center, and model-dependent monitor-only visibility in the Meraki dashboard. Full programmability is available through Cisco IOS XE.
