[shortdesc]A high-performance 2 MP outdoor PTZ camera featuring a 1/2" sensor, 31x optical zoom, Lightfinder, Forensic WDR, and OptimizedIR reaching 300 m, powered by ARTPEC-9 with advanced AI analytics and hardened IP66/IP67/IK10/NEMA 4X durability. This NM variant ships without a midspan.[/shortdesc]
[properties]
| Model |
AXIS Q6355-LE PTZ Camera (02976-301 |
| Product Type |
PTZ Camera |
| Image Sensor |
1/2” progressive scan CMOS |
| Optical Zoom |
31x optical zoom |
| Minimum Illumination |
Color: 0.06 lux (30 IRE, F1.36; B/W: 0.001 lux (30 IRE, F1.36; 0 lux with IR |
| Shutter Speed |
1/111000 s to 1/2 s |
| Video Resolution |
1920x1080 (HDTV 1080p to 320x180 |
| Frame Rate |
Up to 50/60 fps (50/60 Hz in all resolutions |
| IR Range |
OptimizedIR, 300 m m (984 ft or more depending on scene |
| Operating Conditions |
Full power: −50 °C to 55 °C (−58 °F to 131 °F;
Low power: −10 °C to 55 °C (14 °F to 131 °F;
Arctic start-up down to −40 °C (−40 °F;
NEMA TS2 max temperature: 74 °C (165 °F;
Humidity 10–100% RH (condensing |
| Storage Conditions |
−40 °C to 65 °C (−40 °F to 149 °F; 5–95% RH (non-condensing |
| Environmental Protection |
IP66, IP67, IK10, NEMA 4X, NEMA TS2 |
| Dimensions |
Height 261 mm; Ø239 mm (with shield / Ø192 mm (without shield |
| Weight |
4400 g (9.7 lb |
| Power |
IEEE 802.3bt Type 3 Class 6; typical 13.7 W (no IR; max 51 W |
| Interfaces |
RJ45 10BASE-T/100BASE-TX/1000BASE-T; RJ45 push-pull connector (IP66 |
| Casing |
Repaintable metal casing (aluminum, hard coated
Polycarbonate (PC clear dome with Sharpdome
technology |
| Storage |
SD/SDHC/SDXC; AES-XTS 256-bit SD encryption; NAS support |
[/properties]
[specifications]
| Lens |
6.91–214.64 mm; HFOV 60.6°–2.0°; VFOV 36.5°–1.1°; laser focus; autofocus; P-iris |
| Pan/Tilt |
Pan: 360° endless, 0.05°–550°/s; Tilt: +20° to −90°, 0.05°–500°/s |
| Zoom |
31x optical; 12x digital; 372x total; quick-zoom; speed dry; 300 presets; guard tours |
| Video Compression |
AV1; H.264 Baseline/Main/High; H.265 Main; Motion JPEG |
| Video Streaming |
Multiple streams; Zipstream for AV1/H.264/H.265; VBR/ABR/MBR; low-latency mode |
| Image Features |
Forensic WDR up to 120 dB; EIS; defogging; local contrast; 100 polygon privacy masks |
| Audio |
Input/output via Portcast technology |
| Network Protocols |
IPv4/IPv6, HTTPS/HTTP/2, TLS, FTP/SFTP, SMB, SMTP, UPnP, SNMP, RTP/RTSP/SRTP, DHCP, MQTT, LLDP/CDP, NTCIP, secure syslog |
| System Integration |
Open API (VAPIX, ACAP; One-Click Cloud Connection; ONVIF Profiles G/M/S/T |
| Analytics |
AXIS Object Analytics; humans & vehicles classification; line crossing; object in area; time in area; crossline counting; tailgating detection; PPE monitoring (BETA; motion in area; motion line crossing |
| Scene Metadata |
Humans, faces, vehicles, license plates; attributes include vehicle color, clothing color, confidence, position |
| Cybersecurity |
Secure boot; signed OS; encrypted filesystem; AES-XTS SD encryption; Axis Edge Vault; secure element (CC EAL6+; 802.1X; MACsec; firewall |
| Approvals |
EMC: EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, CISPR 35, RCM AS/NZS CISPR 32, ICES-3(A, VCCI Class A, KS C 9835, KS C 9832, FCC Class A, IEC 62236-4;
Safety: IEC/EN/UL 62368-1, IEC/EN 62471 RG2, IEC 60825-1 Class 1;
Environment: IK10, IP66/IP67, NEMA 4X, NEMA TS2, ISO 21207, ISO 12944-6 C5 |
| IR Illumination |
OptimizedIR, 850 nm LEDs, 300+ m (984 ft reach |
[/specifications]
[accesories]
| Included |
Installation guide; IP66-rated network connector; repaint template; paint paper |
| Optional Accessories |
AXIS TQ6808-E Hard-Coated Clear Dome; AXIS TQ6815-E Dome Hard-Coated Smoked; AXIS TU8003 90 W Connectivity Midspan; AXIS T91/T94 Mounting Accessories; AXIS Surveillance Cards |
[/accesories]

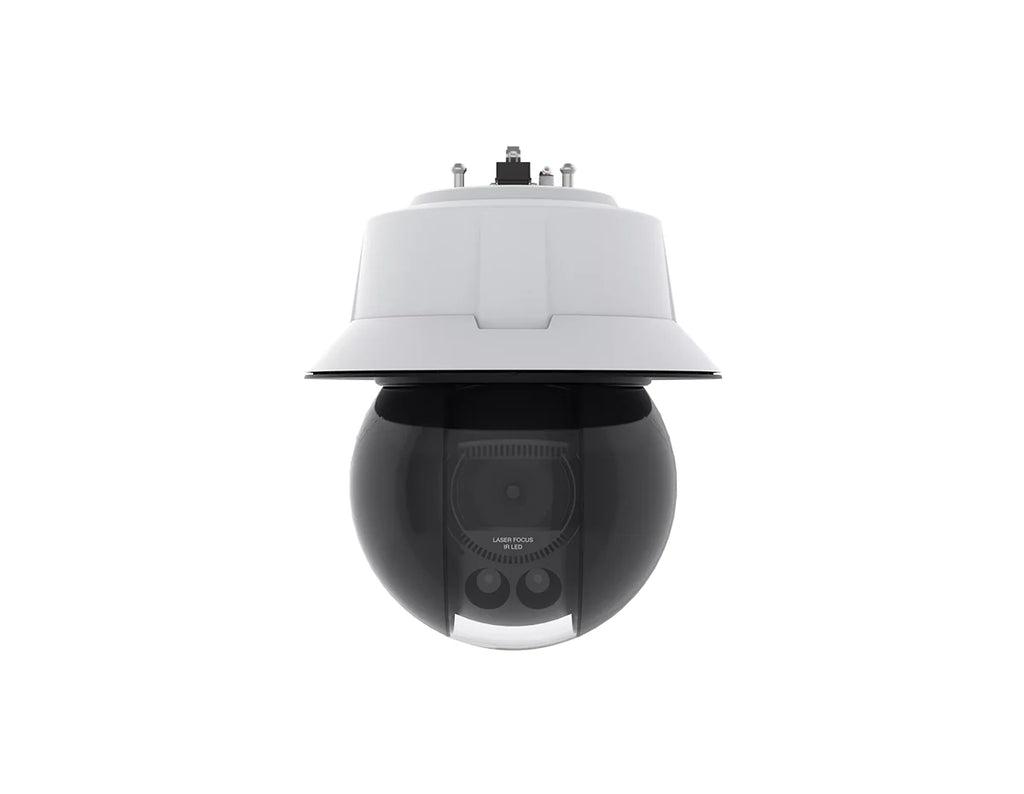

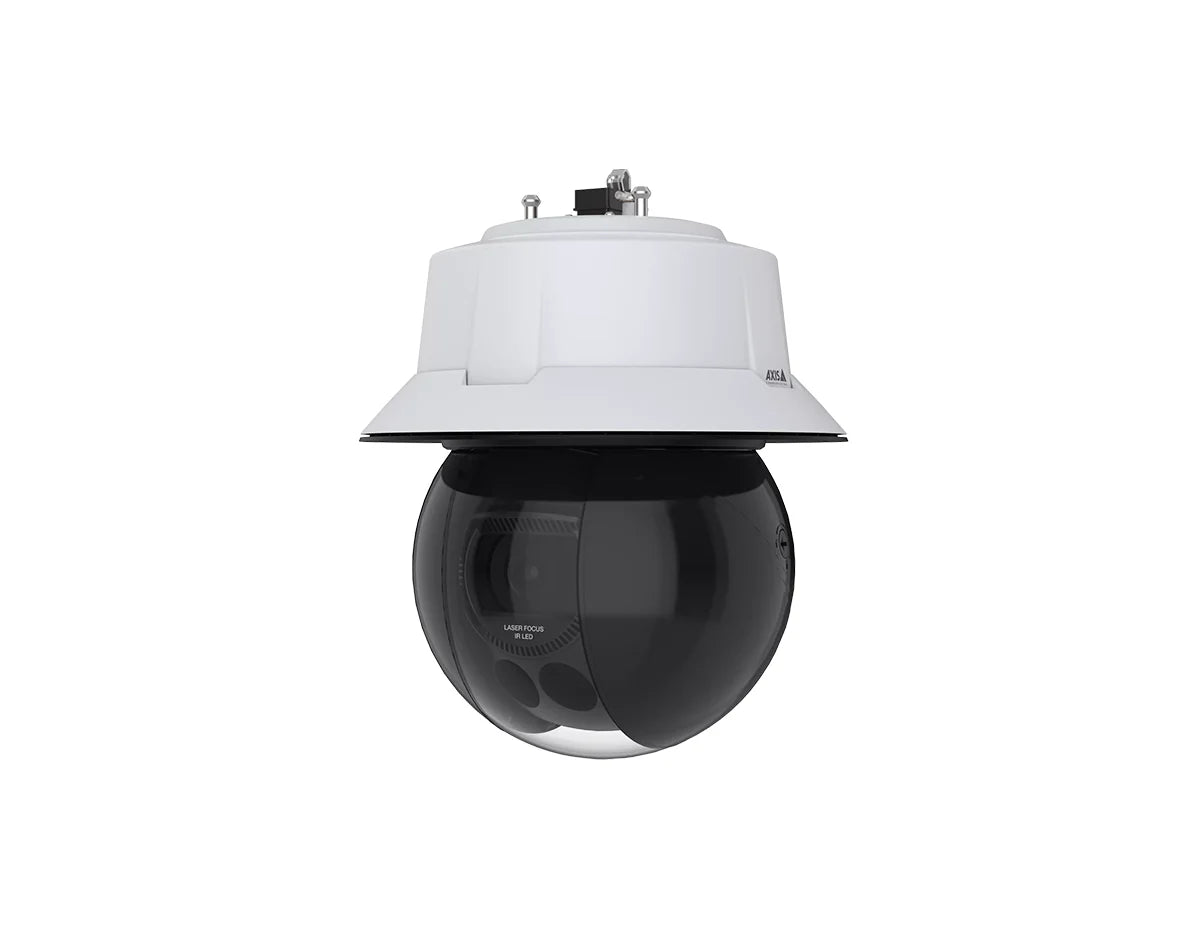

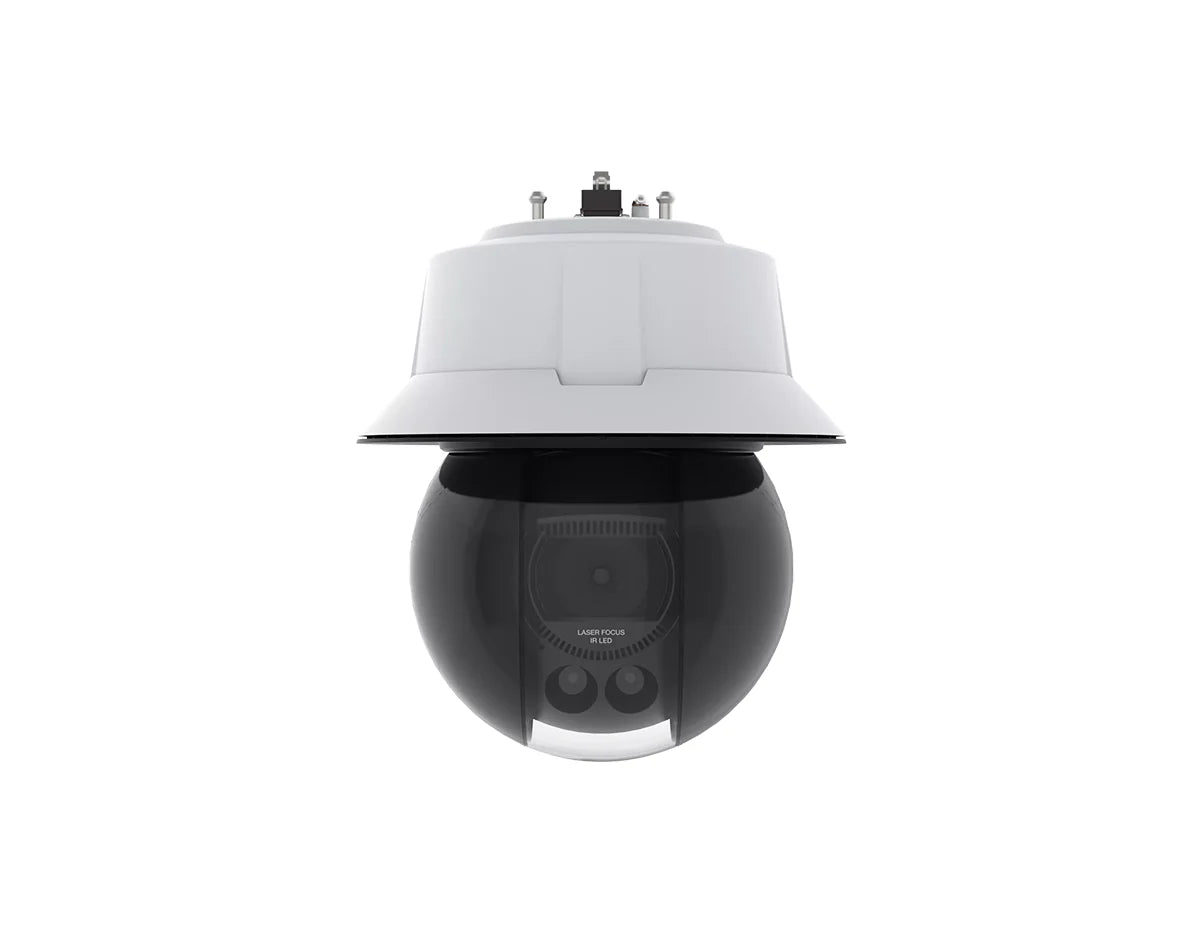

Premium 2 MP PTZ with Advanced AI and Extreme Low-Light Clarity
The AXIS Q6355-LE delivers exceptional surveillance performance with its large 1/2" sensor, Lightfinder technology, Forensic WDR, and powerful 31x optical zoom. With OptimizedIR providing illumination at distances of 300 m or more, it ensures reliable nighttime identification across vast outdoor areas.
Powered by the ARTPEC-9 SoC and deep learning processing unit, it supports next-generation analytics including AXIS Object Analytics and Scene Metadata. With IP66/IP67, IK10, and NEMA 4X ratings, it is engineered for harsh environments and mission-critical deployments.
Key Benefits
- 1/2” light-sensitive sensor delivers outstanding image quality in challenging lighting.
- 31x optical zoom and 372x total zoom enable long-range observation and identification.
- OptimizedIR provides high-performance illumination reaching 300+ meters.
- AI-powered analytics enhance detection, classification, and situational awareness.
- Rugged IP66/IP67/IK10/NEMA 4X construction withstands extreme outdoor conditions.
- Zipstream with AV1/H.264/H.265 reduces bandwidth and storage usage.
- Edge Vault and secure boot deliver robust, hardware-anchored cybersecurity.
Ideal Use Cases
- City surveillance and large public spaces requiring long-range PTZ coverage.
- Critical infrastructure and perimeter protection with nighttime visibility.
- Transportation hubs, highways, and high-altitude mounting points.
- Industrial and energy facilities demanding hardened outdoor security.
Technical Specifications Summary
-
Image sensor: 1/2” progressive scan CMOS
-
Lens: 6.91–214.64 mm; HFOV 60.6°–2.0°
-
Video: 1080p up to 60 fps; Forensic WDR; Lightfinder; EIS
-
IR: OptimizedIR, 300+ m reach
-
Compression: AV1, H.264, H.265, Motion JPEG
-
PTZ: 360° endless pan; +20° to −90° tilt; 31x optical zoom
-
Protection: IP66/IP67, IK10, NEMA 4X
-
Power: IEEE 802.3bt Type 3 Class 6
Upgrade Your Operations
Deploy long-range, AI-powered PTZ surveillance built for the toughest outdoor environments.
