[shortdesc] 200 km/h LPR capture, 20–100 m range, OptimizedIR, ARTPEC-8 SoC, IK10/IP66, Varifocal 7–137 mm lens [/shortdesc]
[properties]
| Model |
AXIS Q1800-LE-3 (03108-001 |
| Product Type |
License Plate Verifier Kit |
| Image Sensor |
1/2.8” progressive scan RGB CMOS |
| Lens |
Varifocal 7–137 mm, F1.5–4.0; Remote zoom & focus; P-Iris |
| Field of View |
Horizontal 38°–2.3°; Vertical 22°–1.3° |
| Minimum Illumination |
Color: 0.06 lux; B/W: 0.01 lux; 0 lux with IR on |
| IR Illumination |
OptimizedIR, 850 nm, 40–50 m range (scene dependent |
| Vehicle Speed Support |
Up to 200 km/h (124 mph |
| Detection Range |
Day: 20–100 m; Night: 20–50 m (up to 100 m with optional IR |
| Internal Storage |
microSD/microSDHC/microSDXC supported |
| Operating Temperature |
−40 °C to 60 °C (−40 °F to 140 °F |
| Power |
PoE IEEE 802.3af/at; 10–28 V DC; 20–24 V AC |
| Power Consumption |
Typical 12.6 W; Max 25.5 W |
| Dimensions |
See datasheet dimension diagram |
| Weight |
3200 g (7.05 lb |
| Casing |
IP66 / NEMA 4X; IK10 aluminum; IK08 glass |
[/properties]
[specifications]
| Video Resolution |
1400×1050 to 160×120 (4:3; 1920×1080 to 320×180 (16:9 |
| Frame Rate |
Up to 25/30 fps with WDR; Up to 90 fps without WDR |
| WDR |
Forensic WDR up to 120 dB |
| Image Processing |
Zipstream, Lightfinder 2.0, OptimizedIR |
| Shutter Speed |
1/111000 s to 2 s (depending on mode |
| System on Chip |
ARTPEC-8 with Deep Learning Processing Unit (DLPU |
| Network Protocols |
IPv4/IPv6, HTTPS, TLS, QoS, FTP/SFTP, RTSP, TCP/UDP, DHCP, ONVIF Profiles G/M/S/T |
| Audio |
Two-way audio; AAC-LC, LPCM, G.711, Opus |
| I/O Ports |
2 configurable supervised inputs/outputs |
| Storage Options |
microSD; SD card encryption; NAS recording |
| Operating Humidity |
10–100% RH (condensing |
| Environmental Ratings |
IEC/EN 60529 IP66; IK10; NEMA TS 2 |
| Supported Analytics |
License Plate Verifier, Scene Metadata, Speed Monitor, VMD, Tampering Alarm |
| Cybersecurity |
Axis Edge Vault, TPM 2.0, Secure Boot, Signed OS, Encrypted Filesystem |
[/specifications]
[accesories]
| Included in the Box |
Camera, installation guide, terminal block connector, RJ45 cable, connector guard, cable gaskets, owner authentication key |
| Optional Accessories |
AXIS T8415 Wireless Installation Tool; AXIS Surveillance Cards; Additional accessories listed on Axis product page |
[/accesories]

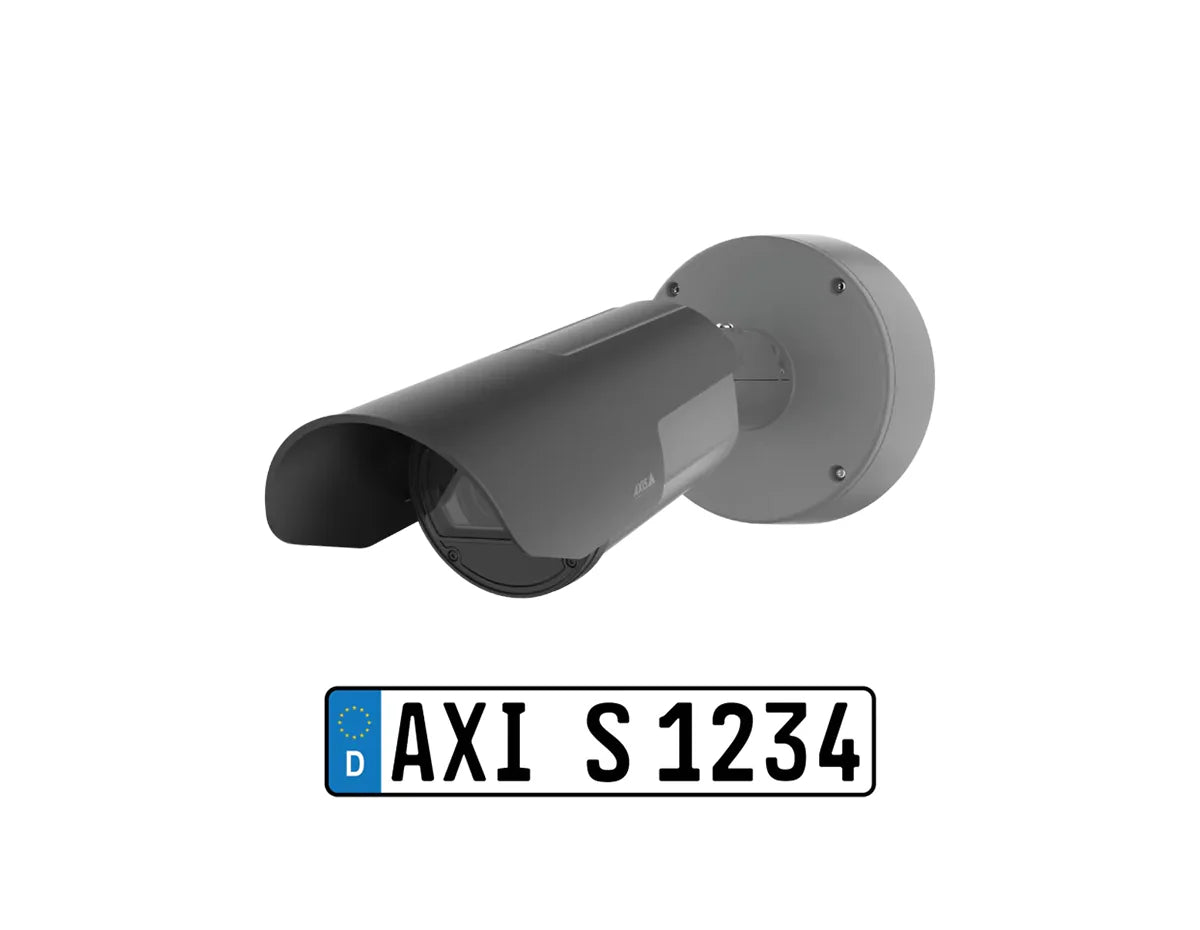

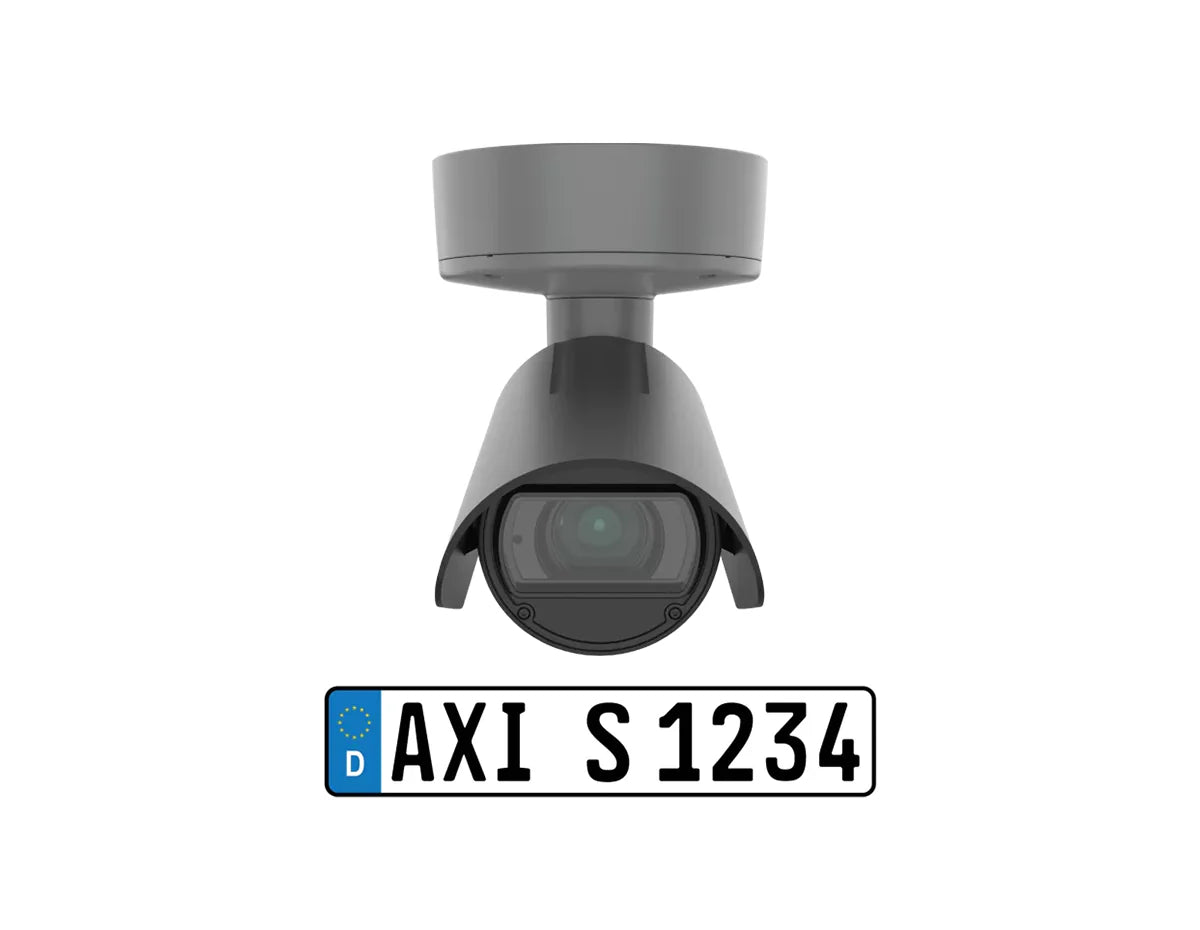

High-Speed, Precision License Plate Recognition in Any Environment
The AXIS Q1800-LE-3 License Plate Verifier Kit delivers 24/7, purpose-built vehicle plate recognition for demanding environments. Powered by the ARTPEC-8 SoC and AXIS License Plate Verifier preinstalled, it captures plates at speeds up to 200 km/h (124 mph with exceptional accuracy in both day and night conditions. This robust, weatherproof system ensures consistent performance in extreme temperatures and harsh outdoor deployments.
With a powerful varifocal 7-137 mm lens, OptimizedIR, and intelligent analytics at the edge, the AXIS Q1800-LE-3 enables fast, reliable vehicle verification without the need for expensive external servers or complex infrastructure. The unit is designed with a built-in weathershield to withstand wind forces up to 60 m/s (134 mph, making it ideal for exposed traffic installations.
Key Benefits & Features
-
High-speed LPR accuracy: Captures clear license plates at up to 200 km/h using purpose-tuned optics and built-in edge analytics.
-
Long-range detection: Daytime reading range of 20–100 m and nighttime range up to 50 m, extendable to 100 m with optional IR illuminator.
-
Edge-based processing: ARTPEC-8 with Deep Learning Processing Unit (DLPU enables fast recognition, lower bandwidth use, and reduced server dependency.
-
Rugged outdoor build: IP66, IK10, NEMA 4X-rated housing with integrated dehumidifying membrane ensures reliability in tough weather.
-
OptimizedIR illumination: Adaptive 850 nm IR LEDs deliver even coverage in full darkness for higher recognition accuracy without external light sources.
Ideal Use Cases
- Highway and expressway speed checkpoints
- Commercial and industrial gate control and access management
- Parking facility automation, vehicle search, and enforcement
- Perimeter security for logistics and distribution centers
- Municipal traffic monitoring and law enforcement
Technical Specifications
-
Sensor: 1/2.8” progressive scan RGB CMOS
-
Lens: Varifocal 7–137 mm, F1.5–4.0, remote zoom and focus
-
Field of View: 38°–2.3° horizontal, 22°–1.3° vertical
-
IR Range: 40 m wide FOV, 50 m tele, scene dependent
-
Vehicle Speed Support: Up to 200 km/h (124 mph
-
Detection Distance: 20–100 m (day, 20–50 m (night
-
Video Resolution: Up to 1920×1080, 90 fps (without WDR
-
WDR: Forensic WDR up to 120 dB
-
Operating Temperature: -40 °C to 60 °C (-40 °F to 140 °F
-
Power: PoE 802.3af/at, 10–28 V DC, 20–24 V AC
Upgrade Your Vehicle Monitoring Today
Enhance your traffic or access control system with reliable high-speed plate verification. Order now to secure your perimeter with the AXIS Q1800-LE-3.
