[shortdesc]AI-powered 1-channel 4K main unit for high-vibration and onboard environments, supporting advanced edge analytics, FAKRA-connected sensor units, secure TPM-based key storage, and rugged operation from -40 °C to 60 °C (-40 °F to 140 °F.[/shortdesc]
[properties]
| Model |

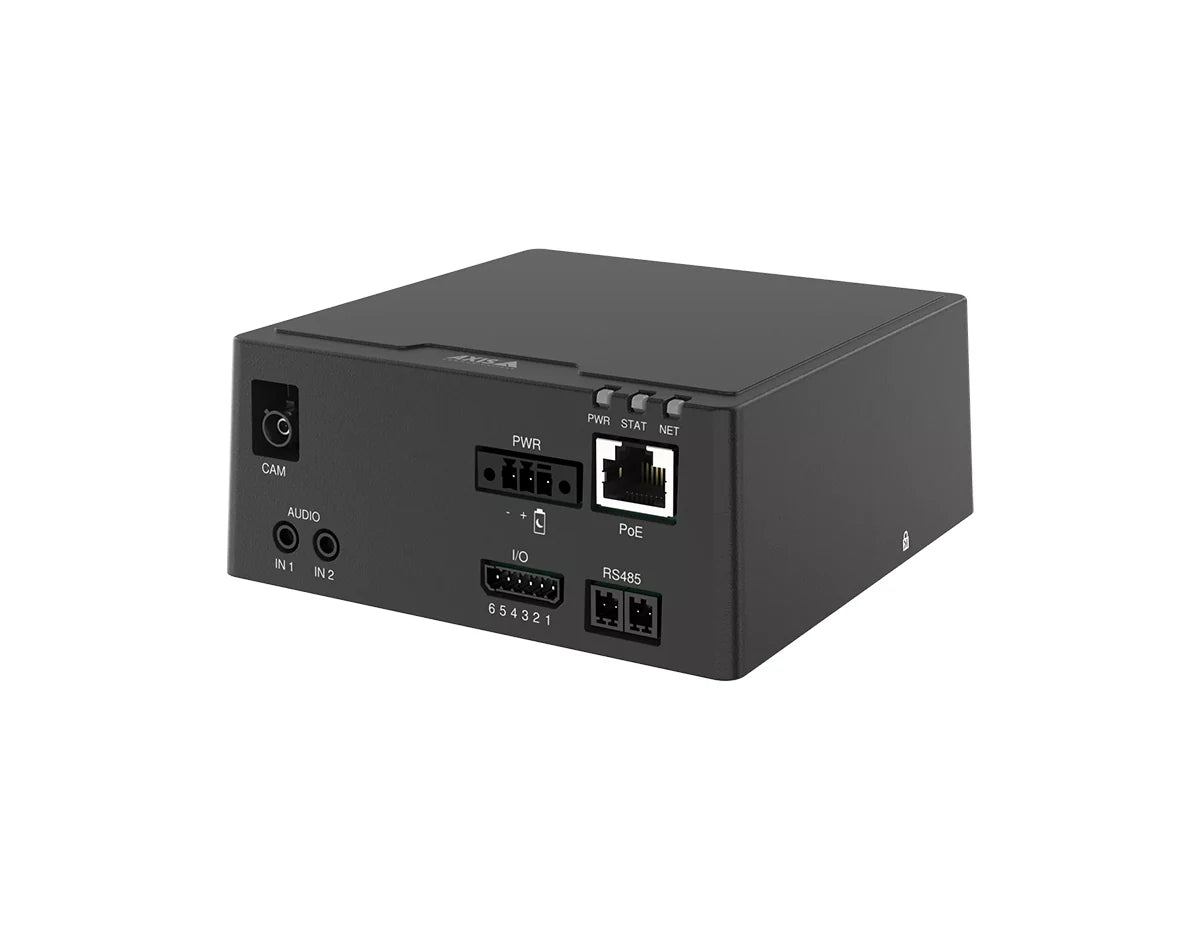

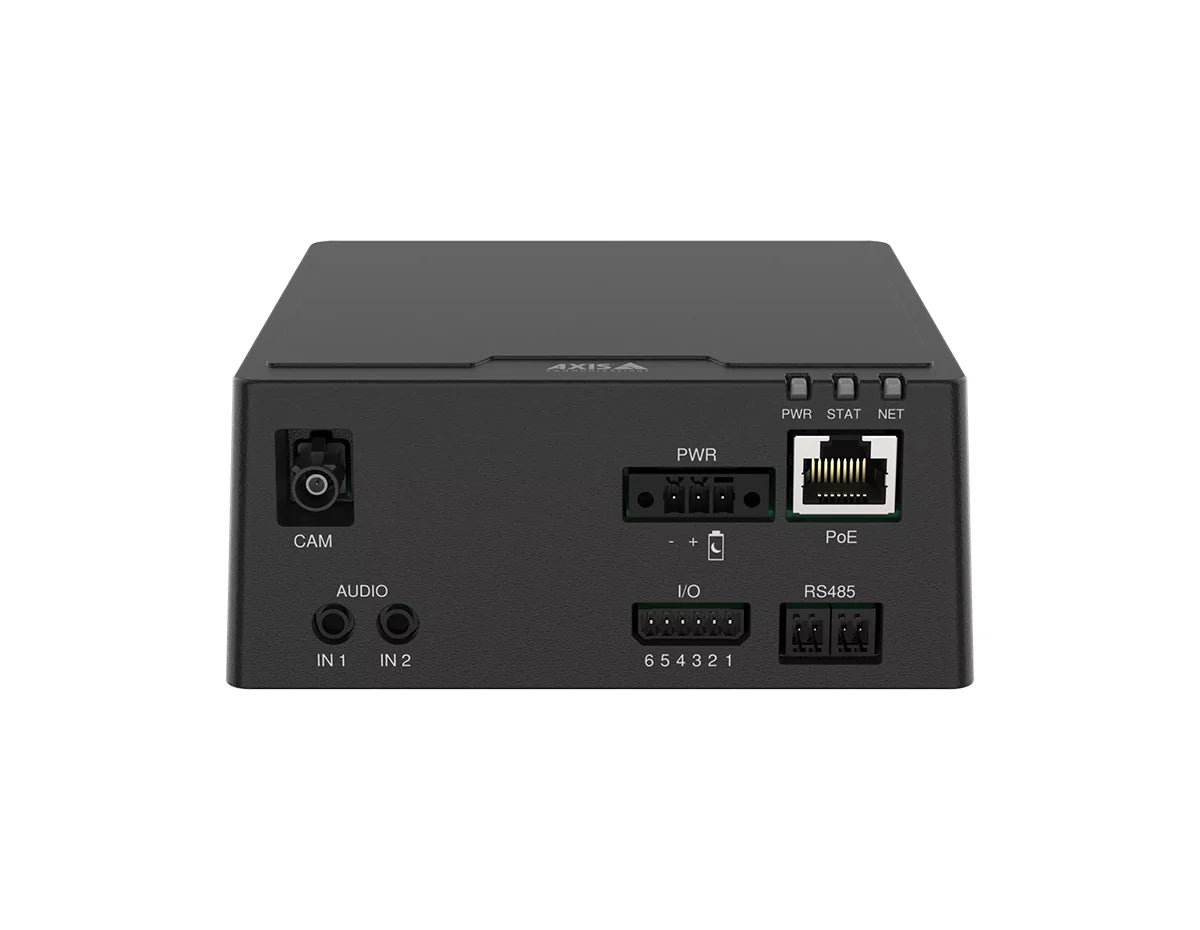

AXIS F9111-R Mk II Main Unit (02998-001 |
| System on Chip |
ARTPEC-8 |
| RAM / Flash |
4096 MB RAM, 8192 MB Flash |
| Casing |
Aluminum, IP3X-rated, black (NCS S 9000-N |
| Operating Temperature |
-40 °C to 60 °C (-40 °F to 140 °F, up to 74 °C (165 °F per NEMA TS 2 |
| Operating Humidity |
10–95% RH (non-condensing |
| Storage Conditions |
-40 °C to 65 °C (-40 °F to 149 °F, 5–95% RH (non-condensing |
| Weight |
675 g (1.5 lb |
| Power Input |
PoE IEEE 802.3af/at Type 2 Class 4 or 10–48 V DC |
| Connectors |
RJ45 PoE LAN, FAKRA sensor, 6-pin terminal block for 4× configurable I/Os (12 V DC output, max load 50 mA, 2× audio inputs, RS485 terminal, USB-A, 3-pin DC connector |
| Storage |
microSD/microSDHC/microSDXC support with AES-XTS-Plain64 256-bit encryption |
| Certifications |
FCC, UL/cUL, CE, KC, VCCI, E-mark, NEMA TS 2, ETSI EN 303 645, FIPS 140 compliance |
[/properties]
[specifications]
| Performance |
Deep learning processing unit (DLPU for advanced analytics |
| Video |
Up to 4K 30 fps or 720p 180 fps; H.264, H.265, Motion JPEG; Signal-to-noise ratio >55 dB; corridor mode; Zipstream |
| Analytics |
AXIS Object Analytics, Scene Metadata, People Counter, Audio Analytics, VMD, Sensor Metrics Dashboard |
| Audio |
Two-channel unbalanced microphone input; 24-bit LPCM, AAC-LC, G.711, G.726, Opus audio encoding |
| Security Features |
Axis Edge Vault, secure boot, signed OS, encrypted filesystem, TPM 2.0, secure element (CC EAL 6+, brute force delay protection, OAuth 2.0, IEEE 802.1X, MACsec, TLS |
| Network Protocols |
IPv4, IPv6, HTTPS, QoS, FTP, SFTP, CIFS/SMB, SNMP, DNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, MQTT v3.1.1, mDNS (Bonjour, SSH, LLDP, CDP |
| I/O Interface |
4× configurable digital I/Os via 6-pin terminal block, 12 V DC output, 50 mA max load |
| Power Consumption |
Typical 8.6 W, max 25.5 W |
| System Integration |
VAPIX®, ACAP, ONVIF profiles G/M/S/T |
| Software Tools |
AXIS Site Designer, AXIS Device Manager, lens calculator |
| Languages Supported |
English, German, French, Spanish, Italian, Russian, Chinese (Simplified & Traditional, Japanese, Korean, Portuguese, Polish, Dutch, Czech, Swedish, Finnish, Turkish, Thai, Vietnamese |
[/specifications]
[accesories]
| Included |
Main Unit, Installation Guide |
| Optional Accessories |
TU6001 Connector 3-pin, Connector A 2-pin, TU6009 Connector 6-PIN, TF9902 Surface Mount, AXIS Surveillance Cards |
[/accesories]
The AXIS F9111-R Mk II is engineered for extreme reliability in high-vibration conditions such as inside vehicles, trains, or industrial machinery. With AI-based detection and sensor-driven insights, it supports mission-critical use cases including object tracking, scene metadata extraction, and security-grade authenticated video recording.
Its rugged aluminum chassis and FAKRA sensor interface give maximum mounting flexibility across multiple onboard sensor types. Combined with Axis Edge Vault hardware security and FIPS-certified cryptographic storage, the device ensures the integrity of video data and platform authentication against tampering or intrusion.
4K onboard performance with deep-learning-powered analytics
- 4K/30fps or 720p/180fps capture enables optimal resolution for any operational scenario.
- DLPU architecture supports real-time human and vehicle analytics at the edge.
- FAKRA sensor connector supports multiple Axis modular sensor units.
- Secure OS, signed video, encrypted storage, and TPM-secured identities.
- Hard-rated environmental endurance from -40 °C to 60 °C (-40 °F to 140 °F.
- Extensive protocol support, including ONVIF profiles for multi-system integration.
Ideal Use Cases
- Vehicle-mounted mobile surveillance
- Industrial machinery monitoring
- Railway-standard control and recording applications
- Smart fleet monitoring and diagnostics
- Ruggedized security installations with vibration exposure
Technical Specifications Summary
-
Resolution: Up to 3840×2160
-
Frame rate: Up to 180/175 fps
-
Memory: 4096 MB RAM / 8192 MB Flash
-
Operating temp: -40 °C to 60 °C (-40 °F to 140 °F
-
Security: TPM 2.0, Edge Vault, secure element (CC EAL 6+, encrypted filesystem
-
Casing: IP3X-rated rugged aluminum
-
Weight: 675 g (1.5 lb
Upgrade Your Operations
Deploy AI-driven 4K rugged sensing in the harshest environments with trusted Axis-grade cybersecurity.
