[shortdesc] 8-channel all-in-one NVR, 8-port PoE switch (135W, 4 TB storage, Intel Core i3, 16 GB DDR5, FIPS 140-2 Level 2 TPM, Windows 11 IoT Enterprise. [/shortdesc]
[properties]
| Model |
AXIS S2208 Mk II (02807-004 |
| Product Type |
Standalone Recording Appliance |
| Included Licenses |
8× AXIS Camera Station Pro Core Device NVR licenses; 10× AXIS Audio Manager Pro licenses |
| System Scalability |
Up to 8 video channels; Up to 16 doors; Up to 128 Mbps recording rate |
| Processor |
Intel Core i3 |
| Memory |
16 GB DDR5 (2× 8 GB |
| Storage |
4 TB Surveillance Class HDD included (1× 4 TB; 2 total slots; 1 free slot |
| PoE Switch |
8 ports integrated; 135 W total power budget; IEEE 802.3at Class 4 |
| Graphics |
Intel UHD Graphics |
| Power Input |
Max 270 W; 135 W PoE dedicated; 100–240 V AC (Adapter; 54 V DC (Unit |
| Operating System |
Windows 11 IoT Enterprise LTSC 2024 |
| Operating Temperature |
0 °C to 40 °C (32 °F to 104 °F |
| Storage Temperature |
−40 °C to 65 °C (−40 °F to 149 °F |
| Humidity |
10–90% RH (non-condensing |
| Dimensions |
330 × 230 × 78 mm (13 × 9.1 × 3.1 in |
| Weight |
5.8 kg (12.8 lb |
| Security |
FIPS 140-2 Level 2 TPM 2.0; Secure boot; Signed switch firmware |
[/properties]
[specifications]
| Video Streaming (Windows Client |
1× 4K @30 fps; 4× 1080p @30 fps*; 9× 720p @30 fps*; 16/25/36 split @360p @15 fps; Supports dual 4K monitors or one 8K monitor (@20 fps |
| Video Streaming (Web Client |
1× 8K @30 fps; 1× 4K @30 fps; 4× 1080p @30 fps; 9× 720p @30 fps*; Max 18 streams total |
| Playback |
Same split scenarios as live view (Windows; Up to 8K @30 fps (Web |
| Power Consumption |
Typical 75 W; Max 95 W (Excluding PoE loads |

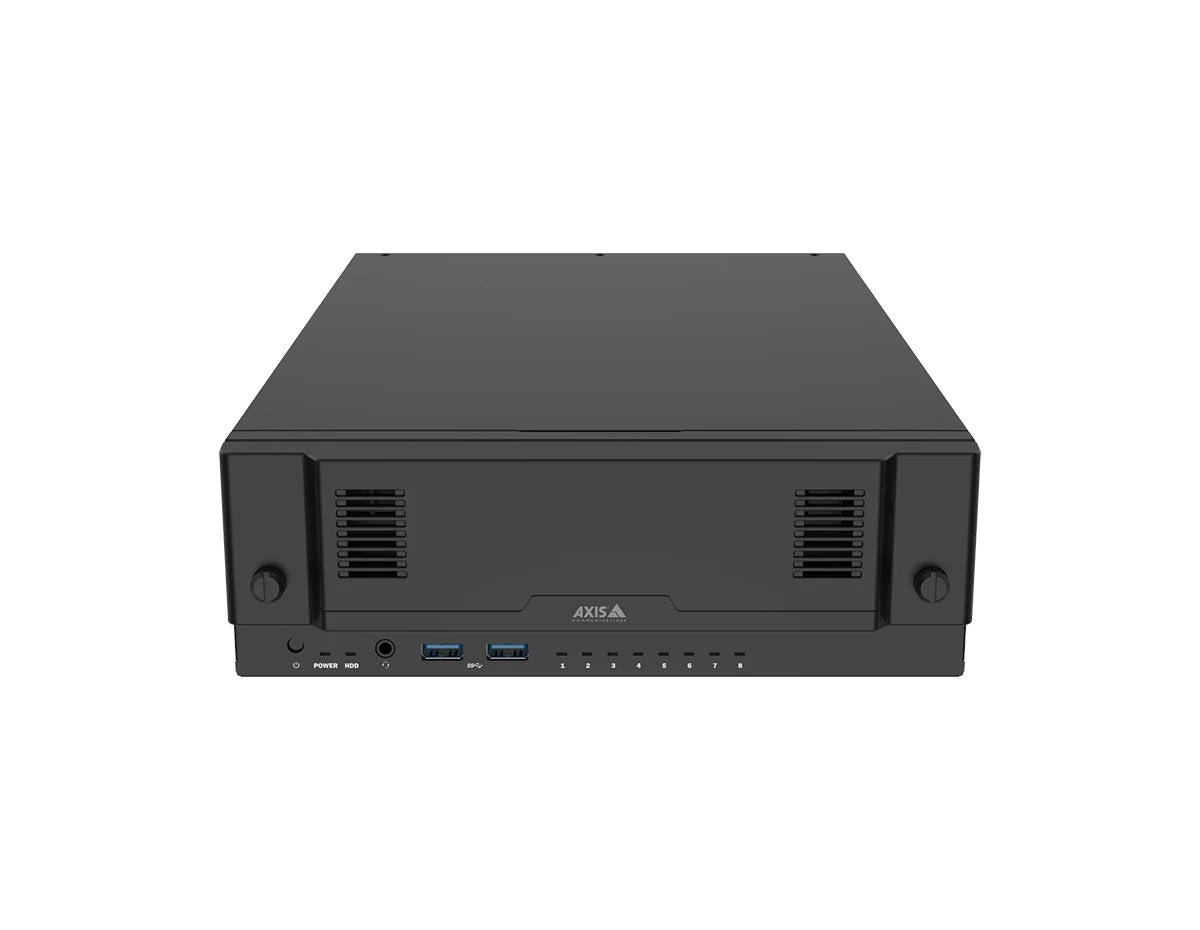

| Connectors (Front |
2× USB 3.2; 1× Universal audio jack |

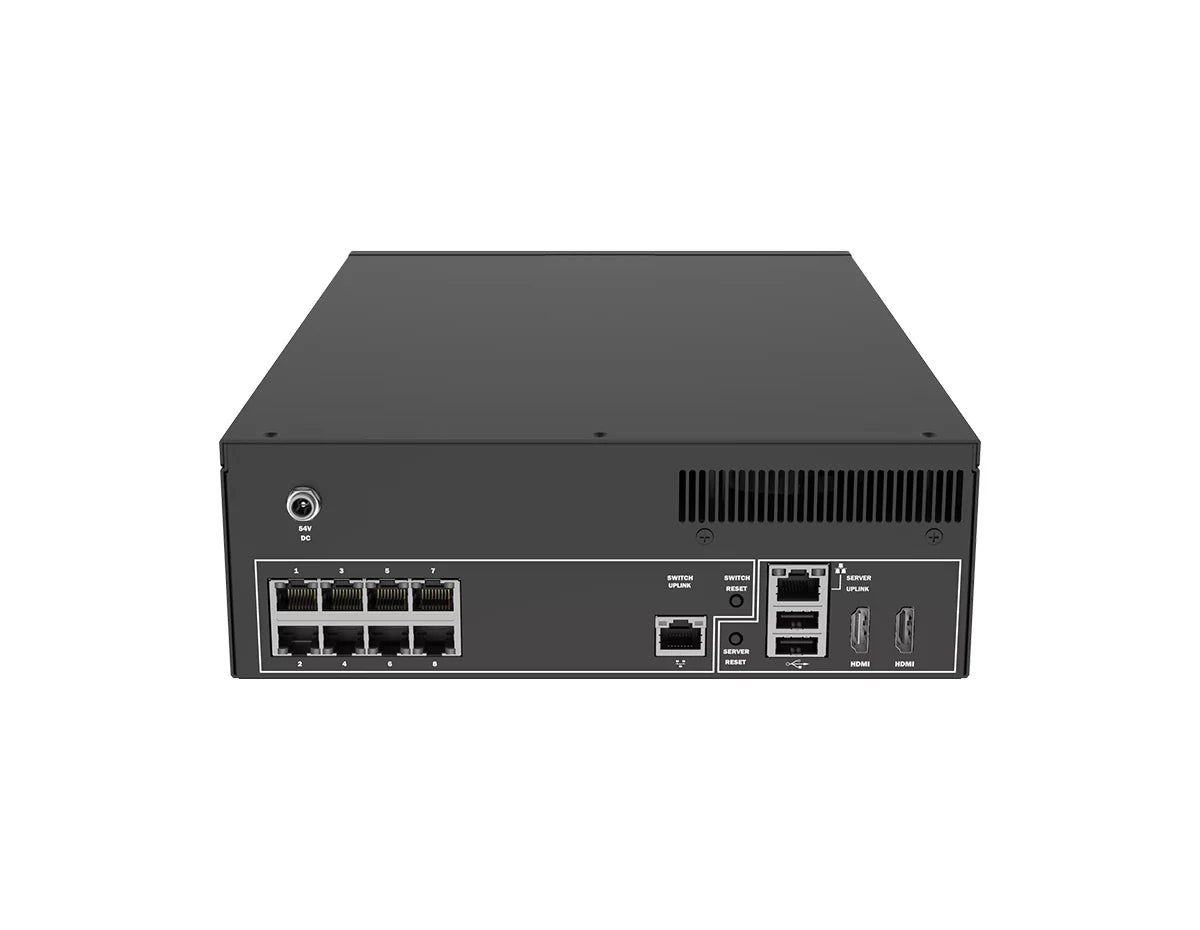

| Connectors (Rear Switch |
8× PoE RJ45 1 Gbps; 1× RJ45 1 Gbps |
| Connectors (Rear Server |
1× RJ45 1 Gbps; 2× USB 2.0; 2× HDMI 2.1 |
| Operating System Drive |
256 GB SSD |
| Certifications & Compliance |
UL/cUL, BIS, CE, KC, VCCI, RCM, BSMI, FCC, NOM; TAA compliant |
| EMC Standards |
EN 55035; EN 55032 Class A; EN 61000-3-2; EN 61000-3-3; FCC Part 15 Class A |
| Safety Standards |
CAN/CSA C22.2 No. 62368-1; IEC/EN/UL 62368-1 |
[/specifications]
[accesories]
| Included |
Rack ears; Power adapter |
| Optional |
Surveillance Hard Drive 6 TB; Surveillance Hard Drive 4 TB; AXIS TS2901 Appliance Stand; Axis desktop terminals; Axis Ethernet surge protector |
[/accesories]
Powerful All-in-One Surveillance Built for Professional Security
The AXIS Camera Station S2208 Mk II Standalone Appliance delivers a comprehensive, enterprise-grade recording solution designed for seamless deployment. Engineered as an all-in-one recorder, it integrates a powerful 8-port PoE switch, 4 TB of surveillance-class storage, and the advanced AXIS Camera Station Pro software directly into the hardware. This standalone unit is built to manage up to eight video channels with high-definition clarity, making it the perfect core for small to mid-sized security installations.
Beyond simple recording, the S2208 Mk II prioritizes operational silence and data security. Its fan-optimized design ensures whisper-quiet performance, allowing it to reside in customer-facing environments or office spaces without causing disruption. Simultaneously, it meets rigorous cybersecurity standards, including FIPS 140-2 Level 2 compliance, ensuring your sensitive video data is protected against evolving threats.
Key Benefits & Features
-
Integrated High-Power PoE Switching: Features 8 dedicated PoE ports with a substantial 135 W power budget (IEEE 802.3at Class 4, eliminating the need for external switches and simplifying camera cabling.
-
Next-Gen Processing Power: Equipped with an Intel Core i3 processor and 16 GB of fast DDR5 memory, ensuring smooth handling of high-resolution streams, including 4K and 8K live viewing.
-
Robust Cybersecurity Architecture: Built with a FIPS 140-2 Level 2 certified Trusted Platform Module (TPM 2.0, Secure Boot, and digitally signed firmware to prevent unauthorized access and tampering.
-
Silent & Discreet Operation: A compact form factor coupled with a low-noise thermal design makes it suitable for desktop placement in quiet professional environments.
-
Turnkey Deployment: Comes preloaded with AXIS Camera Station Pro (8 licenses included and the AXIS Recorder Toolbox, featuring an intuitive installation wizard for rapid system setup.
-
Future-Proof Scalability: While ready for 8 channels out of the box, the system supports easy expansion using the AXIS S30 Recorder Series to add more storage and channels as your needs grow.
Ideal Use Cases
-
Retail Environments: Reliable, high-definition recording for loss prevention in stores where silent equipment is preferred.
-
Corporate Offices: Secure, local video management that fits neatly into server rooms or IT closets without excess noise.
-
Educational Facilities: Centralized monitoring for schools requiring up to eight cameras with the ability to integrate access control.
-
Regulated Industries: Government and healthcare sectors requiring TAA compliance and FIPS-certified hardware security.
Technical Specifications Overview
-
Video Channels: Qualified for up to 8 video channels and 16 access control doors.
-
Recording Rate: Supports a total recording rate of up to 128 Mbps.
-
Storage: Includes 4 TB (1× 4 TB Surveillance HDD; expandable via 1 free drive slot.
-
Connectivity: 2× RJ45 1 Gbps (1 for Server, 1 uplink on Switch, 8× PoE Ports.
-
Peripherals: 2× USB 3.2 (Front, 2× USB 2.0 (Rear, 2× HDMI 2.1 (supports up to 8K output.
-
Power: Universal input 100–240 V AC; Max power consumption 270 W.
Upgrade Your Surveillance Infrastructure
Order the AXIS S2208 Mk II today to secure your facility with a silent, powerful, and cyber-secure all-in-one recording solution.
