Descripción
- (1) AMD 4th/5th Generation Processors
- (12) DDR5 6400MHz - Max Memory 128 GB
- (2) PCIe5 x16 (16, 8, 4, 1)
- (1) OCP slot
- Supports up to (12 LFF or 24 SFF or 36 EDSFF) Drives
- Drives supported in Midtray and rear bay.
- Optional NS204i-u RAID 1 NVMe M.2 Boot device
- HPE iLO 6 ASIC & TPM 2.0
- (8) PCIe Slots
- (4x SW or 2x DW) GPUs
(Click to View)
- AI
- Edge Servers

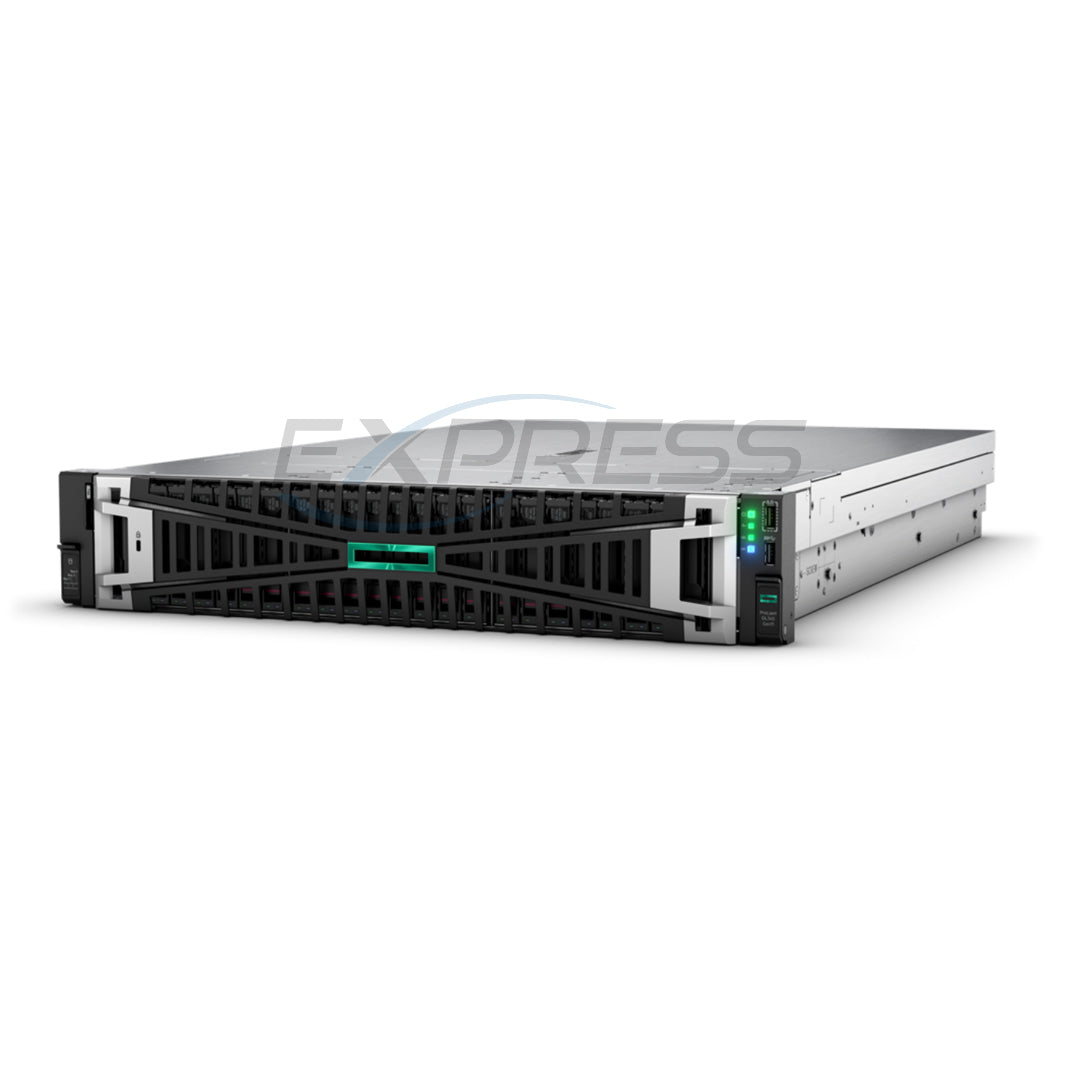

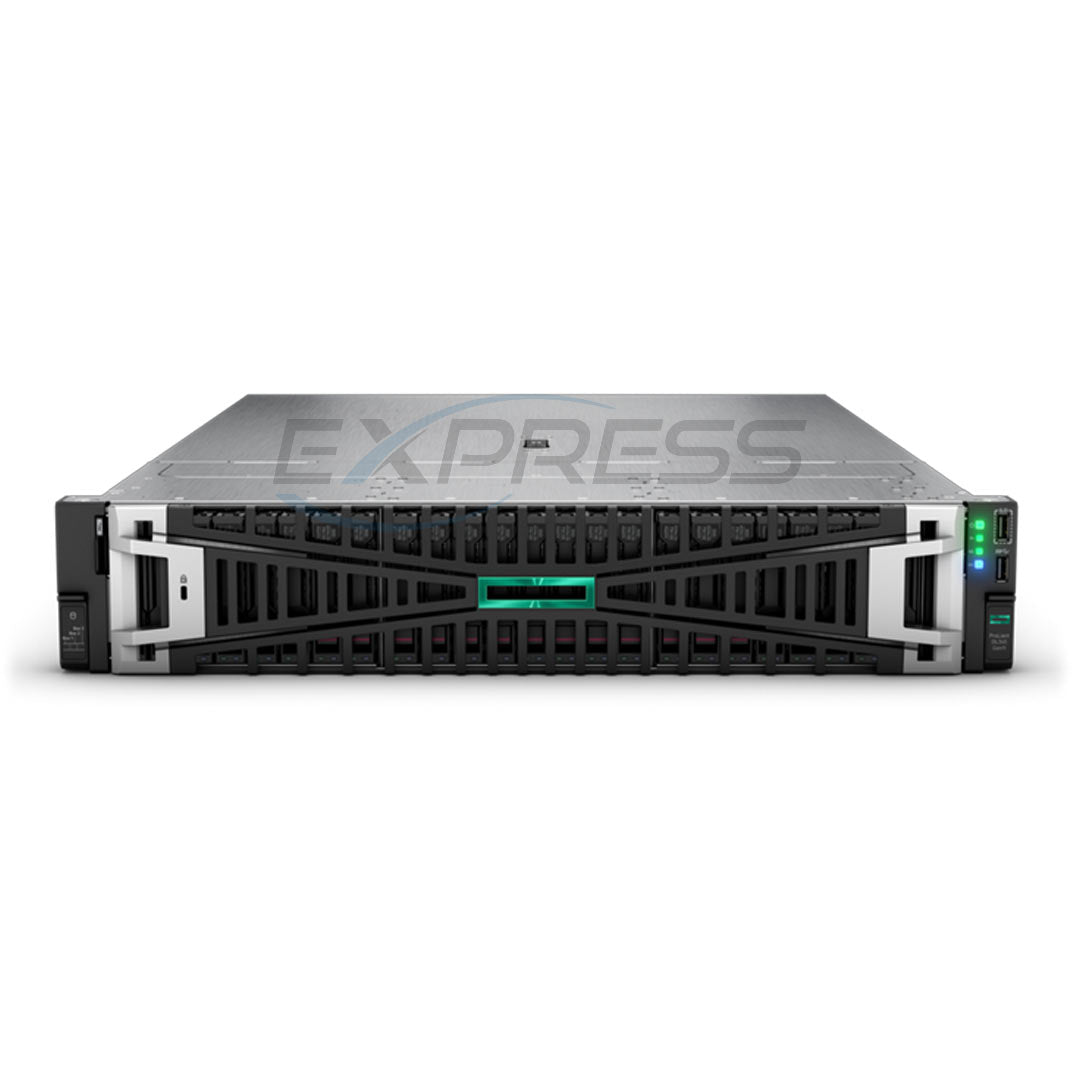

The HPE ProLiant DL345 Gen11 is a scalable 2U, single-processor (1P) server built for enterprise data centers, delivering strong compute performance and large-capacity storage at 1P economics. Powered by 4th and 5th Generation AMD EPYC™ processors with up to 160 cores, this high-performance server solution offers increased memory bandwidth (up to 3TB at 6400 MT/s), high-speed PCIe Gen5 I/O, and flexible EDSFF storage — supporting up to 20 LFF, 34 SFF, or 36 EDSFF drives, plus up to four front-accessible GPUs.
8 LFF P54204-B21
8 SFFP54205-B21
24 SFFP54206-B21
EDSFFP54207-B21
GPUP54208-B21

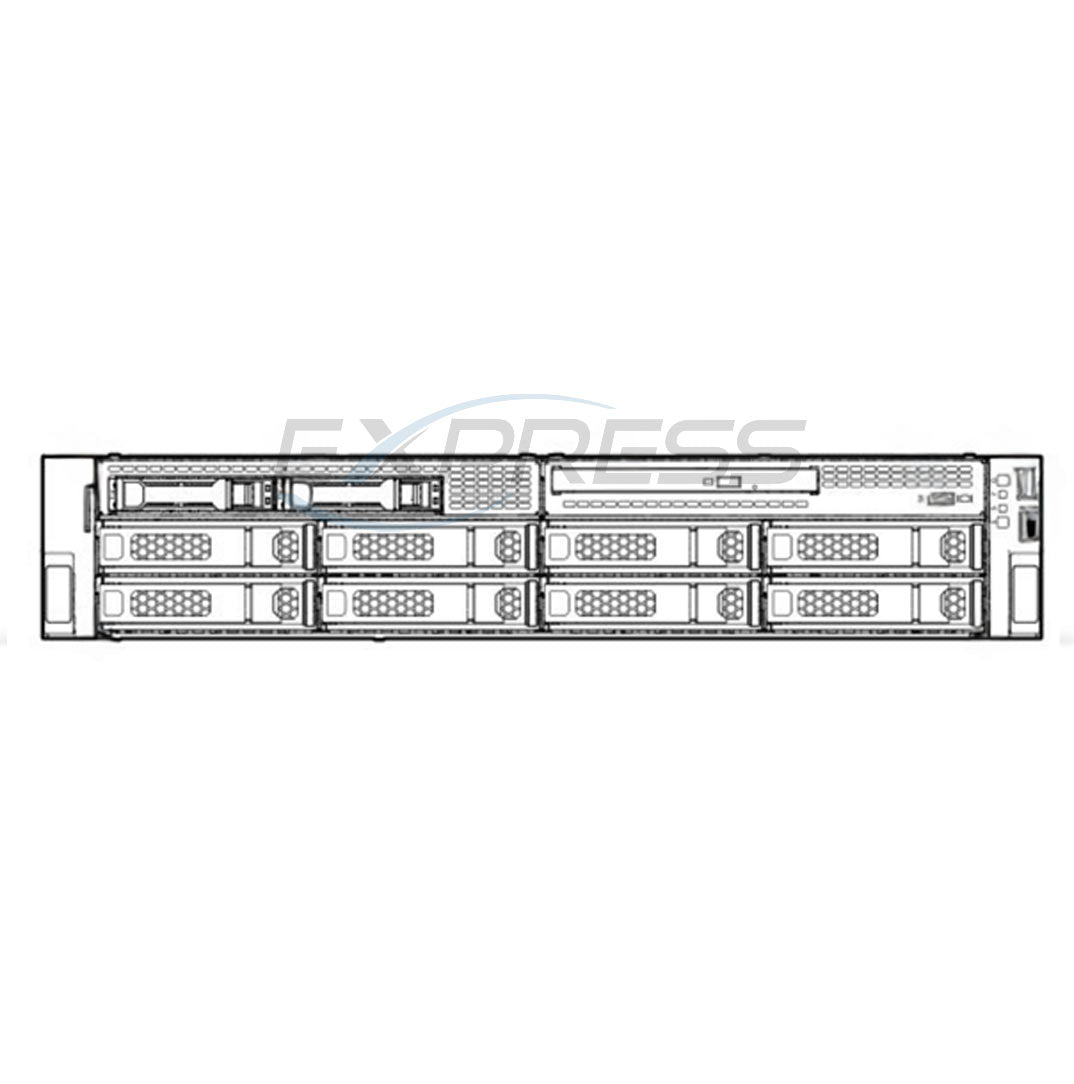

8 LFF Backplane options
4LFF x1 Front Box 1P57114-B21
Drives: 4LFF x1 SAS/SATA
If installed, does not support (P57111-B21) or (P52150-B21)
4LFF x1 Mid TrayP57112-B21
Drives: 4LFF x1 SAS/SATA
Requires Performance Fan Kit (P58465-B21)
Requires 1U Performance Heat Sink (P58457-B21).
Requires processor less than or equal to 300W.
4LFF x1 Rear TrayP57113-B21
Drives: 4LFF x1 SAS/SATA
Requires 4LFF front drive bay (P57114-B21).
Requires Performance Fan Kit (P58465-B21).
2SFF x4 Side-by-Side Box 1P57111-B21
Drives: 2SFF x4 Tri-Mode U.3 BC
Cant be installed with (P57114-B21) or (P57110-B21).
2SFF x4 Stackable Drive CageP57110-B21
Drives: 2SFF x4 Tri-Mode U.3 BC
Only supported in the Rear on the 8LFF and requires Performance Fan Kit (P58465-B21)
Can't be installed with (P57111-B21) or (P57113-B21)

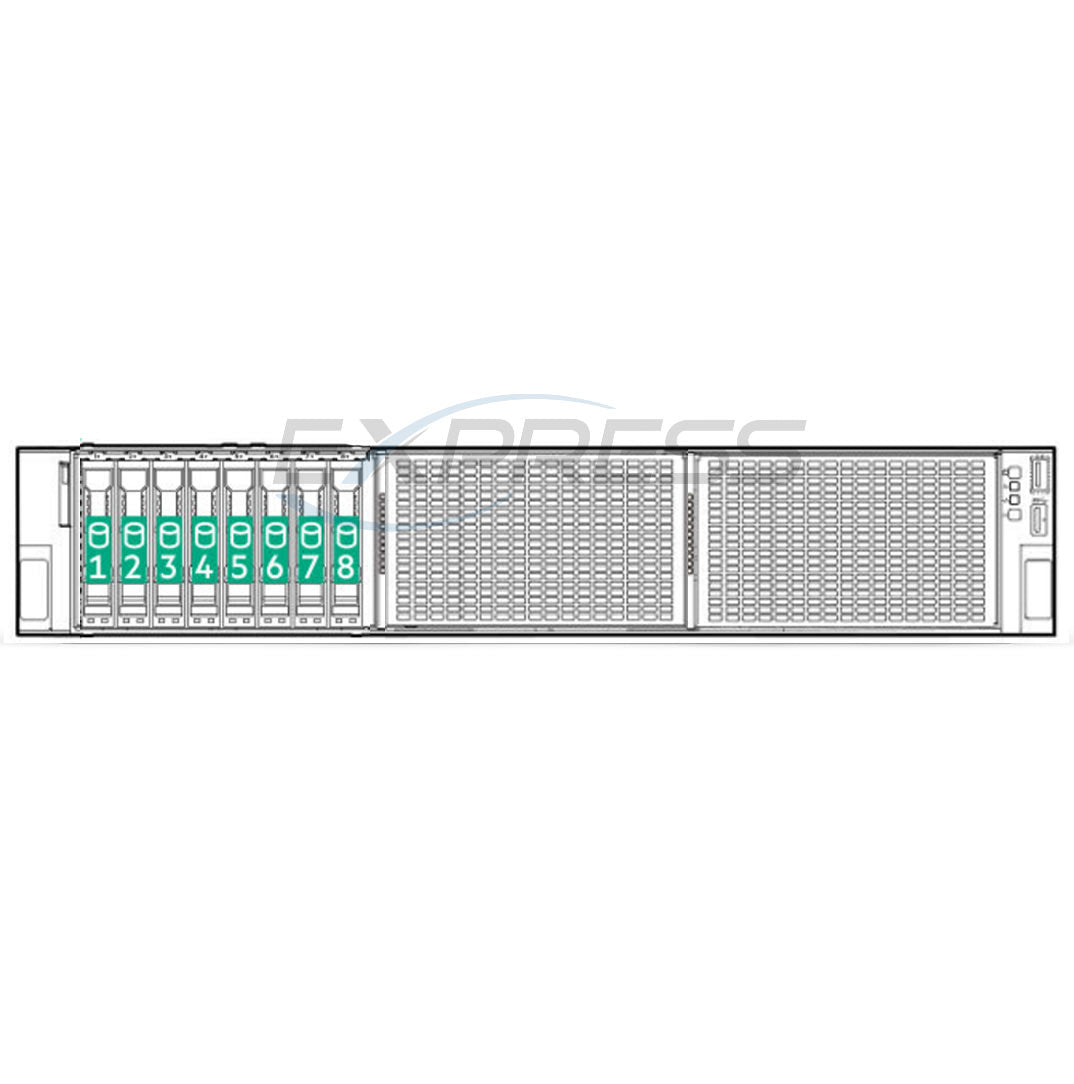

8 SFF Backplane options
8SFF Tri-Mode U.3 x1 BCP55082-B21
Drives: 8SFF Tri-Mode SAS/SATA/ NVMe x1 BC
Select 24SFF (P54206-B21) for three (3) 8SFF x1 U.3 drive cage
Mixing of 8SFF x4 and x1 backplane kit is not supported.
Max = 2
8SFF Tri-Mode U.3 x4 BCP55083-B21
Drives: 8 SFF SAS/SATA/ NVMe (U.3) x4 BC
Same backplane in the 24SFF NVMe Bundle Kit (P59256-B21)
Max = 3
24SFF x4 NVMe FIO Bundle KitP59256-B21
Drives: 24LFF x4 SAS/SATA
Includes: 3x 8SFF x4 U.3 backplane (P55083-B21)
Includes: Direct Attach Cable Kit (P57124-B21)
Includes: 2x PCs OCP retimer (P65876-B21)
SFF Universal Media Bay KitP57857-B21
Supports Drives: 2SFF x4 Tri-Mode U.3 BC
ODD Supported: 701498-B21, 726536-B21, and 726537-B21
ODD Cable: ODD cable kit P59602-B21
Includes: 2 USBs, and 1 DP port, and supports 1 Optical Drive.
2SFF x4 Stackable Drive CageP57110-B21
Drives: 2SFF x4 Tri-Mode U.3 BC
Supported in the Front with the Media Bay or the Rear
Requires Performance Fan (P58465-B21) if installed at the rear
Max = 1

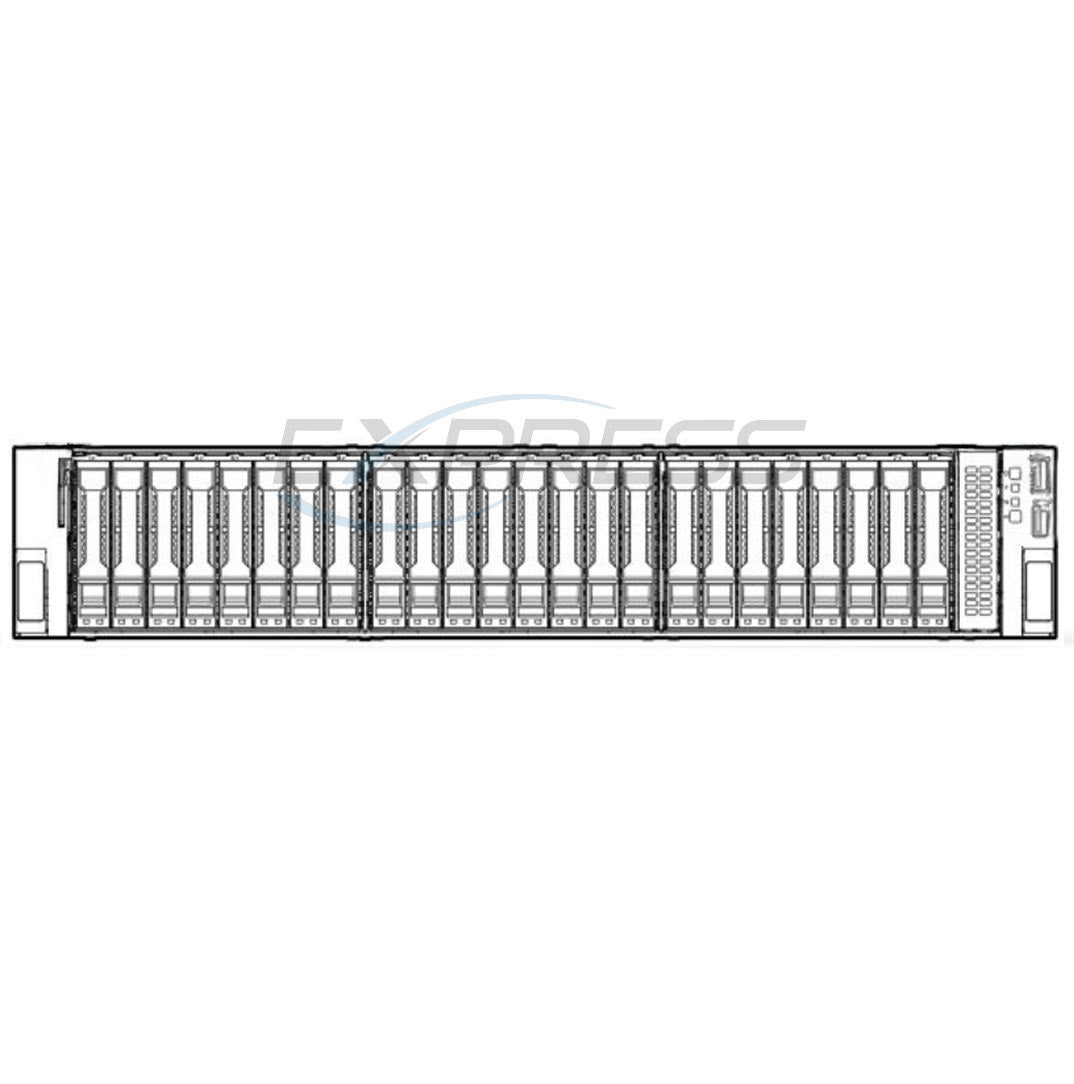

24 SFF Backplane options
24 SFF Deafult CTOP54206-B21
3 Bays of: 8SFF Tri-Mode SAS/SATA/ NVMe x4 BC
Max = 1
8SFF Mid TrayP57108-B21 - P57109-B21
Drives: 8 SFF SAS/SATA/ NVMe (U.3) BC
P57108-B21 - 8SFF x1 Mid Tray
P57109-B21 - 8SFF x4 Mid Tray
Only way to install 32 SFF Configuration
Requires Performance Fan Kit (P58465-B21)
Requires 1U Performance Heat Sink (P58457-B21
Max = 1
2SFF x4 NVMe Stackable Drive KitP57110-B21
Drives: 2SFF x4 Tri-Mode U.3 BC
This plus P57108-B21 make a 36 SFF Configuration
Requires Performance Fan Kit (P58465-B21)
Max = 1

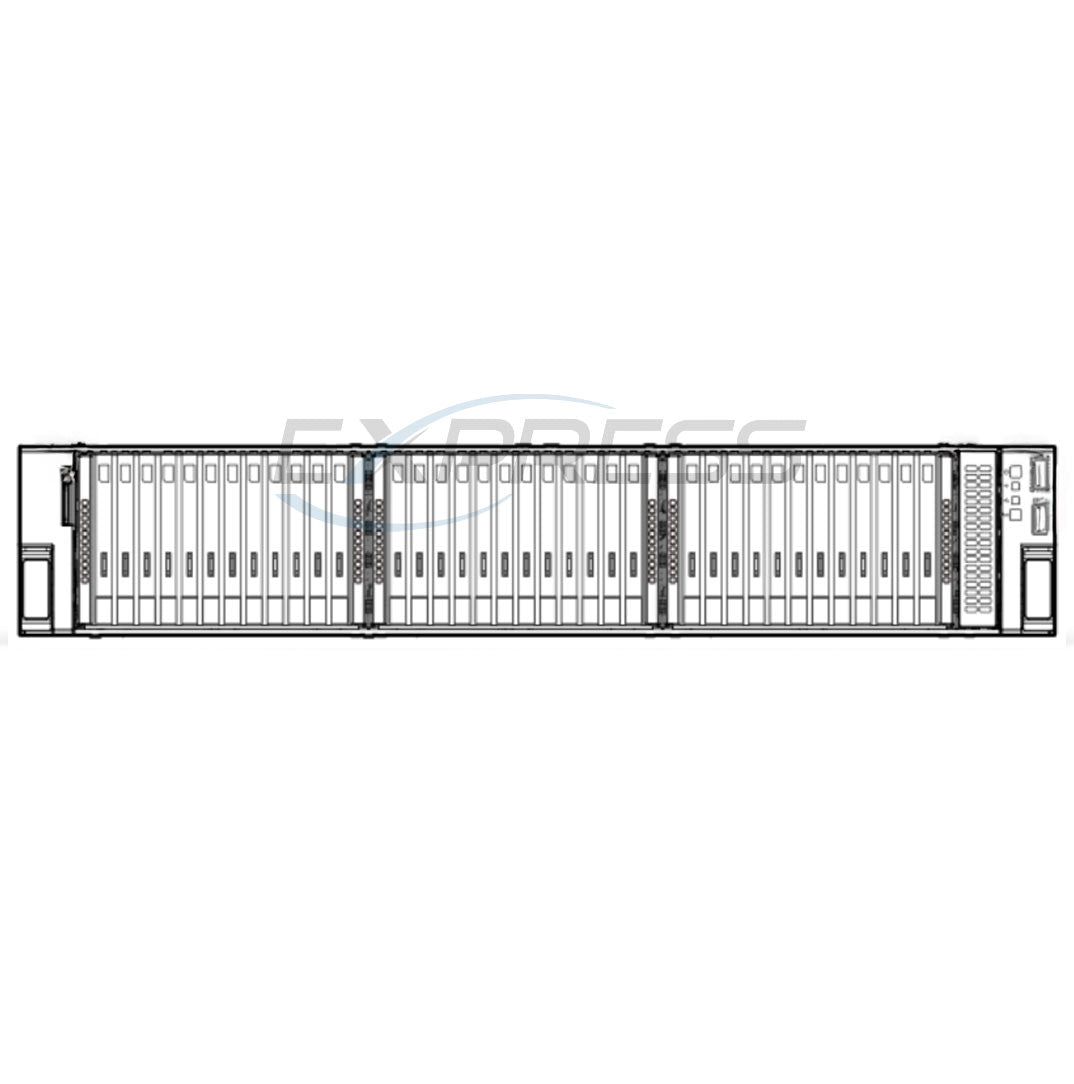

EDSFF Backplane options
36EDSFF x2 NVMe Box 1-3 P55090-B21
Supports 36 EDSFF NVMe Drives in Box 1-3 at x2 speed
Max = 1
24EDSFF x4 Box 2-3 Tri-Mode P70438-B21
Drives: 24 EDSFF NVMe Drives in Box 2-3
Requires 3pcs 32 lanes controllers to support 24 drives at x4 speed.
Max = 1
20EDSFF x4 Box 2-3P64383-B21
Drives: 20 EDSFF NVMe Drives in Box 2-3 at x4 speed
Bay #9-12 of box 2 is blocked from drive installation due to PCIe lane limitation.
Max = 1

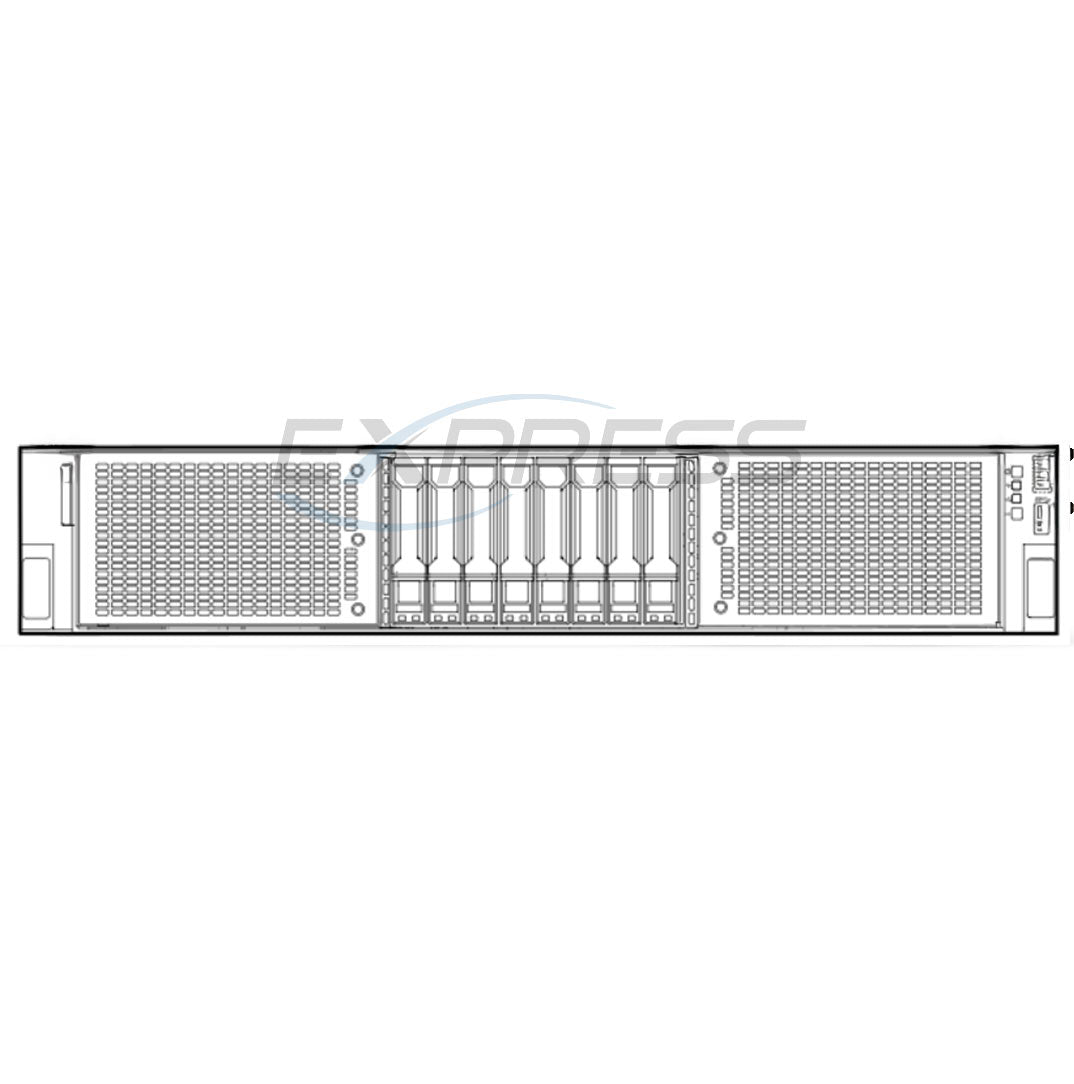

GPU Backplane options
8x SFF U.3 Backplane KitDrives: 8 SFF NVMe
P57867-B21 + P70406-B21 | 8SFF x4 Tri-Mode PCIe Cable Kit
P57867-B21 + P69868-B21 | 8SFF x2 Tri-Mode OCP Cable Kit
One Cable kits is Required
8x EDSFF NVMex4 to CtrlrDrives: 8EDSFF NVMex4 to Ctrlr
Both P62355-B21 + P69866-B21 are Required
Max = 1
12x EDSFF NVMe x4 DADrives: 12EDSFF NVMe x4 DA
Both P62355-B21 + P64381-B21 are Required
Max = 1
Standard Heatsink (STD) P58458-B21
up to 240W
2U Performance HeatsinkP58459-B21
more than or equal to 260W
1U Performance HeatsinkP58457-B21
Mid tray installed, and Less than 300w
DLC from PCIeP80871-B21
DLC from NS204i-uP80876-B21
55cm Quick DisconnectP62042-B21
450mm Quick DisconnectP62046-B21
- NOTE: Just the DLC; you still need to riser and NS204u-i if desired.
- Seven (7) performance fan kits are required.
- 450mm Quick Disconnect for GPU-optimized server.
- 55cm Quick Disconnect for non-GPU-optimized configuration
Standard Fan P58461-B21
Performance Heat SinkP58462-B21
- Performance Fan Requirements
- GPU CTO server (P54208-B21)
- 8SFF/4LFF Midtray drive cage (P57108-B21, P57109-B21, P57112-B21)
- Rear drive cage (P57110-B21, P57113-B21)
- 100/200GB network adapters or InfiniBand network adapters
A PCIe-based add-in card that provides two M.2 slots (supporting both 2280 and 22110 form factors) for either SATA or NVMe SSDs via SlimSAS connection. Place is Slot 1, takes a PCIe slot.
- No RAID supported on this option
- Cannot be selected with the NS204i-u boot device
- If 96W Smart Batt OR Smart Hybrid Capacitor are selected, then Megacell Ext cable Kit is required.
- If this M.2 enablement kit is selected along with GPU CTO server, then Battery and Hybrid Capacitor (P02377-B21 and P01366-B21) are not allowed.
A dedicated hot-plug boot device that mounts externally accessible at the rear of the server, housing two M.2 NVMe SSDs pre-configured in RAID 1 mirror. It does not occupy a PCIe slot but requires the secondary low-profile riser (P55029-B21)
- RAID 1 is pre-configured and cannot be changed
- Cannot be selected with the M.2 enablement kit
- 4LFF Rear Cage selected, LP Riser kit (P59260-B21) must be selected
- NS204i-u Cable Kit (P57013-B21) must be selected.
NS204i-u Options
v1 2x 480GB NVMeP48183-B21
v2 2x 480GB NVMeP78279-B21
v2 2x 960GB NVMe P81160-B21
v2 2x 960GB NVMe SED P62046-B21
- v1 - Supported by AMD 4th Gen
- v2 - Supported by AMD 5th Gen
The MR (MegaRAID) and SR (SmartRAID) series use different RAID configuration tools and cannot be mixed in the same server. Both series support SAS, SATA, and NVMe drives when used with a tri-mode U.3 backplane, enabling mixed drive configurations. The server has no embedded software RAID — direct attached SATA drives operate in AHCI mode only, so a controller is required for any hardware RAID.
SR Series (SmartRAID)
SR Series
Installation Service Manual
The SR series is the high-end controller line, only available in type-p PCIe form factor.
This is the go-to choice for high drive count configurations or maximum storage throughput. Like the cached MR controllers it requires a battery or capacitor for cache protection.
MR Series (MegaRAID) - View PDF
MR Series
Installation Service Manual
The MR series is the broader, more flexible controller line available in both type-o and type-p form factors.
The cached models (MR408i-o, MR416i-o, MR416i-p) add a Flash-Backed Write Cache (FBWC)
Choosing Between MR and SR
- Need OCP slot deployment → MR type-o only
- Simple RAID, no cache needed → MR216i-o or MR216i-p
- Need cache, moderate drive count → MR408i-o or MR416i-o/p
- Maximum drive count or throughput → SR932i-p
- External SAS/SATA storage → E208e-p (Gen10, type-p, external only)
The OCP slots are not the same.
Slot 21 does not have any connection to the drives; this is why Slot 22 supports a Type-O Storage controller.
When installing a single OCP NIC, install it in Slot 21.
OCP Slot 21Form Factor: OCP PCIe 5.0 x8
Supports OCP NIC
Supports OCP retimer card
P56658-B21 - OCP 21 PCIe Gen5 x16 Upgrade Kit
- Required if below are selected:
- OCP InfiniBand (P31323-B21, P31348-B21)
- BCM 57504 10/25GbE (P26269-B21)
- Intel E810 100GbE (P22767-B21)
OCP Slot 22Form Factor: OCP PCIe 5.0 x8
Supports Type-o storage controller
Supports OCP NIC with speed less than 100 Gb
Supports OCP retimer card

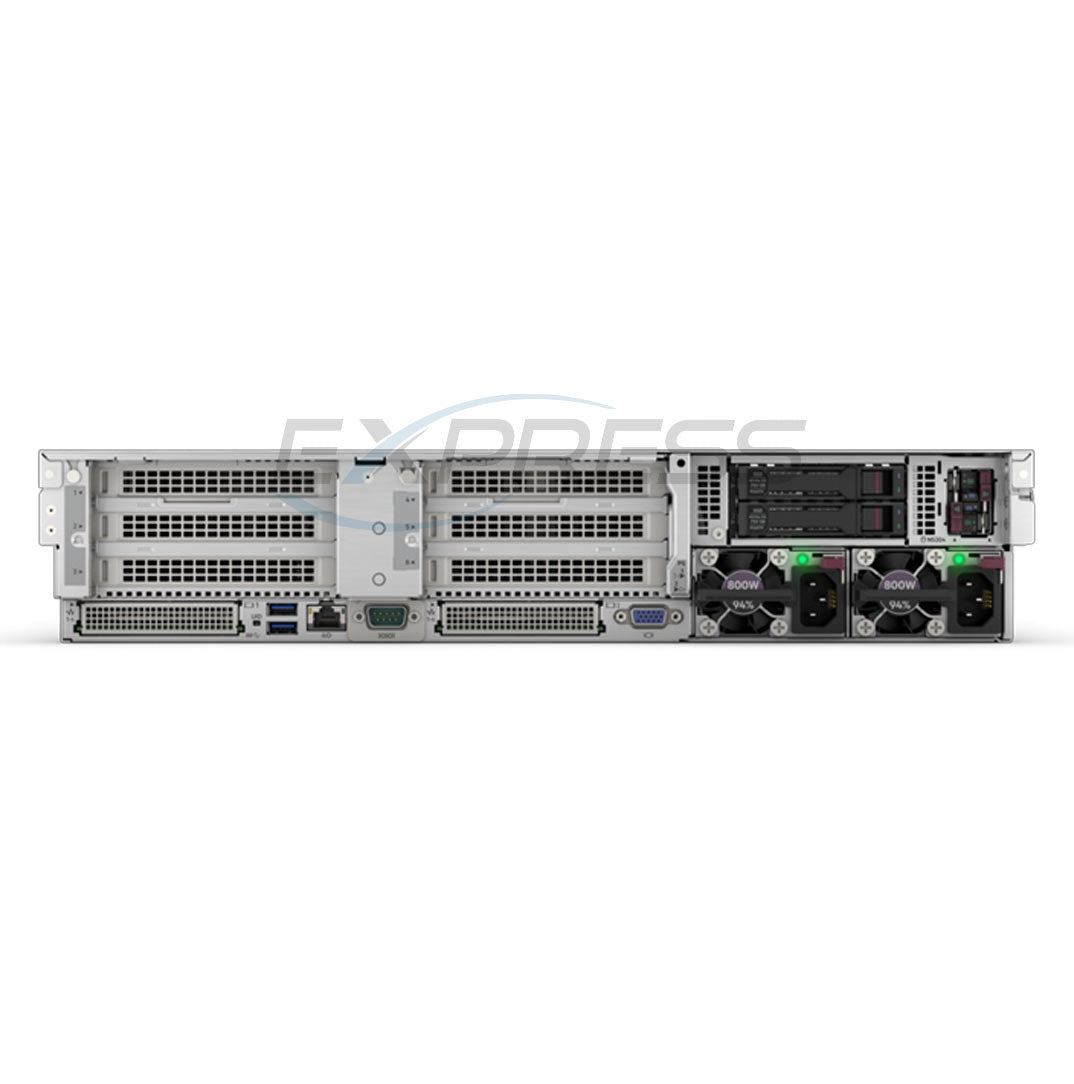

Default2x PCIe 5.0 x16 Slots 3 & 6
No NS204u-i - P55098-B211x PCIe Gen5 x16 riser slot 3 or 6
Requires 4LFF rear drive cage (P57113-B21)
Max = 2
With NS204u-i - P59260-B211x PCIe Gen5 x16 riser slot 6
Requires 4LFF rear drive cage (P57113-B21)
Requires NS204i-u boot device (P48183-B21)
Max = 1
4 PCIe x16 Enablement KitSupports (4) PCIe Gen5 x16 risers
Three (3) at the primary riser slots 1/2/3
One (1) at the secondary riser slot 6
4LFF Rear Drives Not Supported
6 PCIe x16 Enablement KitSupports (6) PCIe Gen5 x16 risers
Three (3) at the primary riser slots 1/2/3
Three (3) at the secondary riser slots 4/5/6
4LFF Rear Drives Not Supported
- When a DLC is installed, the secondary Riser will be replaced.
4 SW GPU - P55068-B21Supports (4) PCIe Gen5 x16 risers
Three (3) at the primary riser slots 1/2/3
One (1) at the secondary riser slot 6
4LFF Rear Drives Not Supported
2x DW GPU - P55067-B21Supports (6) PCIe Gen5 x16 risers
Three (3) at the primary riser slots 1/2/3
Three (3) at the secondary riser slots 4/5/6
4LFF Rear Drives Not Supported
- When a DLC is installed, the secondary Riser will be replaced.
The Manuals are very poor in this GPU section. They do not explain how 4 SW GPUs are installed in this server. They also dont have any information about supported GPUs other than the L4 SW GPU. Below are GPUs that work for the DL320 Gen 11.
NVIDIA L4 24GBS0K89
- 24 GB GDDR6
- 72 W TDP
- SW FH/FL
- 4.0 x16
NVIDIA A16 64GBR8T26C
- 64 GB GDDR6
- 250 W TDP
- DW LP
- 4.0 x16
NVIDIA L40 48GBS0K90C
- 48 GB GDDR6
- 300 W TDP
- DW
- 4.0 x16
NVIDIA L40S 48GBS2L70C
- 48 GB GDDR6
- 350 W TDP
- DW
- 4.0 x16
Notes:
- Cannot mix GPUs Models.
- All 7 high-performance fans are required for any GPU installation
- Front-end GPU riser cage — Slot 4 and Slot 5
- Rear primary riser cage — Slot 1
HPE iLO 6 is the 6th-generation Integrated Lights-Out management processor built into HPE ProLiant Gen11 servers (including the DL345 Gen11).
It delivers secure out-of-band remote management, allowing you to monitor, control, and troubleshoot the server even when the OS is down or the server is powered off.
Key features include a hardware Silicon Root of Trust, enhanced security (secure boot, attestation), Redfish-compliant RESTful API, improved remote console, virtual media, and seamless integration with HPE Compute Ops Management and OneView.
