Descripción
Quick Specs

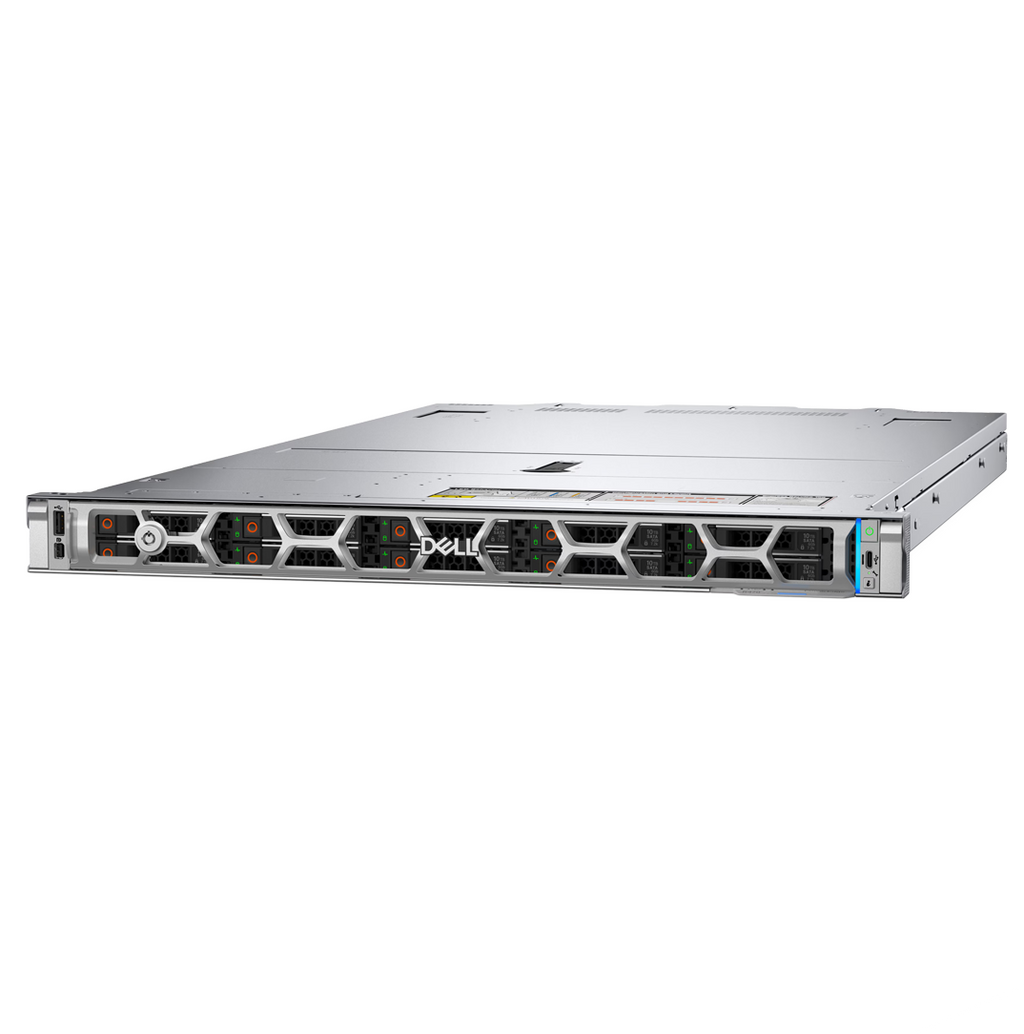

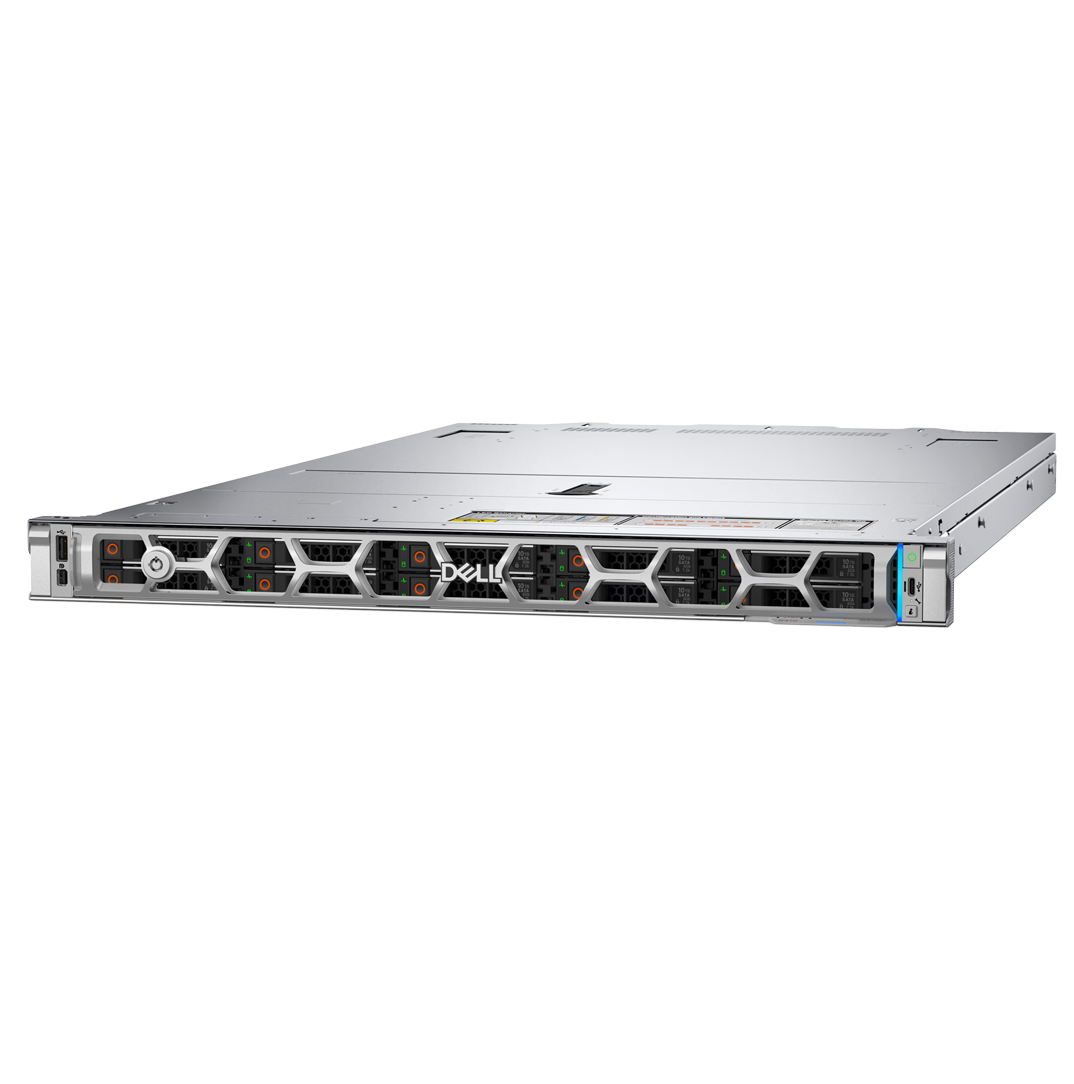

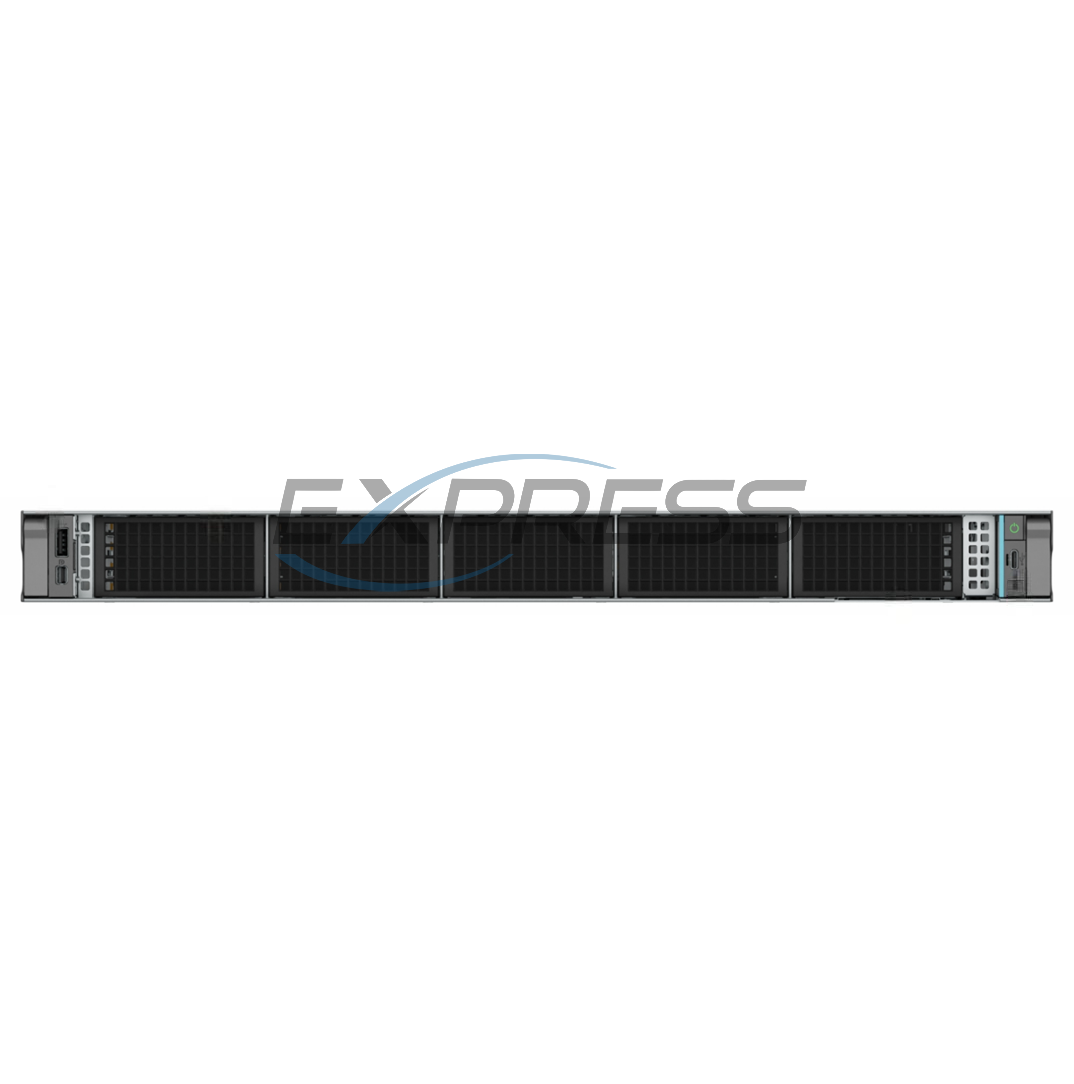

1U rack server
Processor | Max: 144 E-Cores / 88 P-Cores2x Intel Xeon 6 E-Core / P-Core
Memory | Max: 8TB32 ECC DDR5 RDIMM 6400Mhz
Supports registered ECC DDR5 DIMMs only

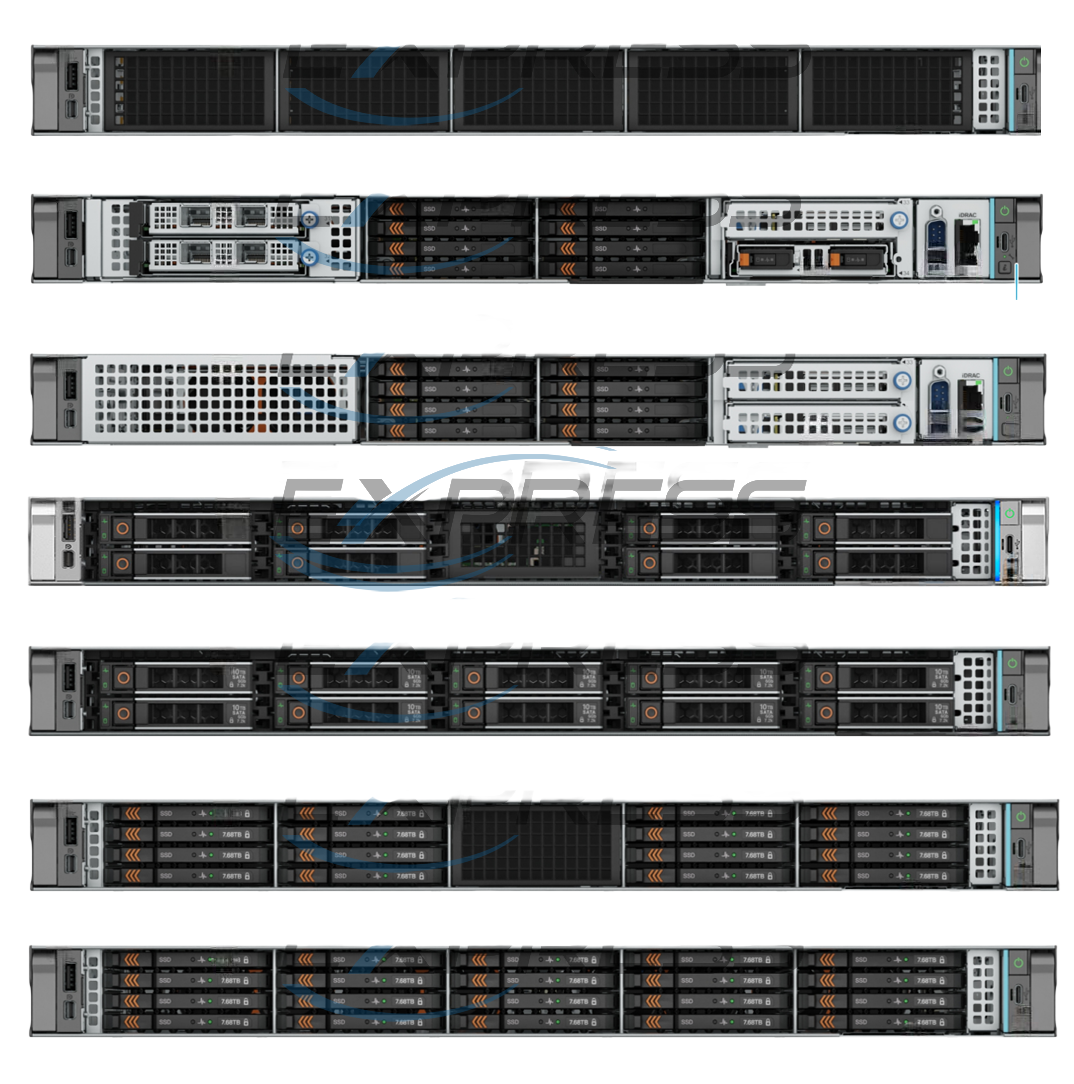

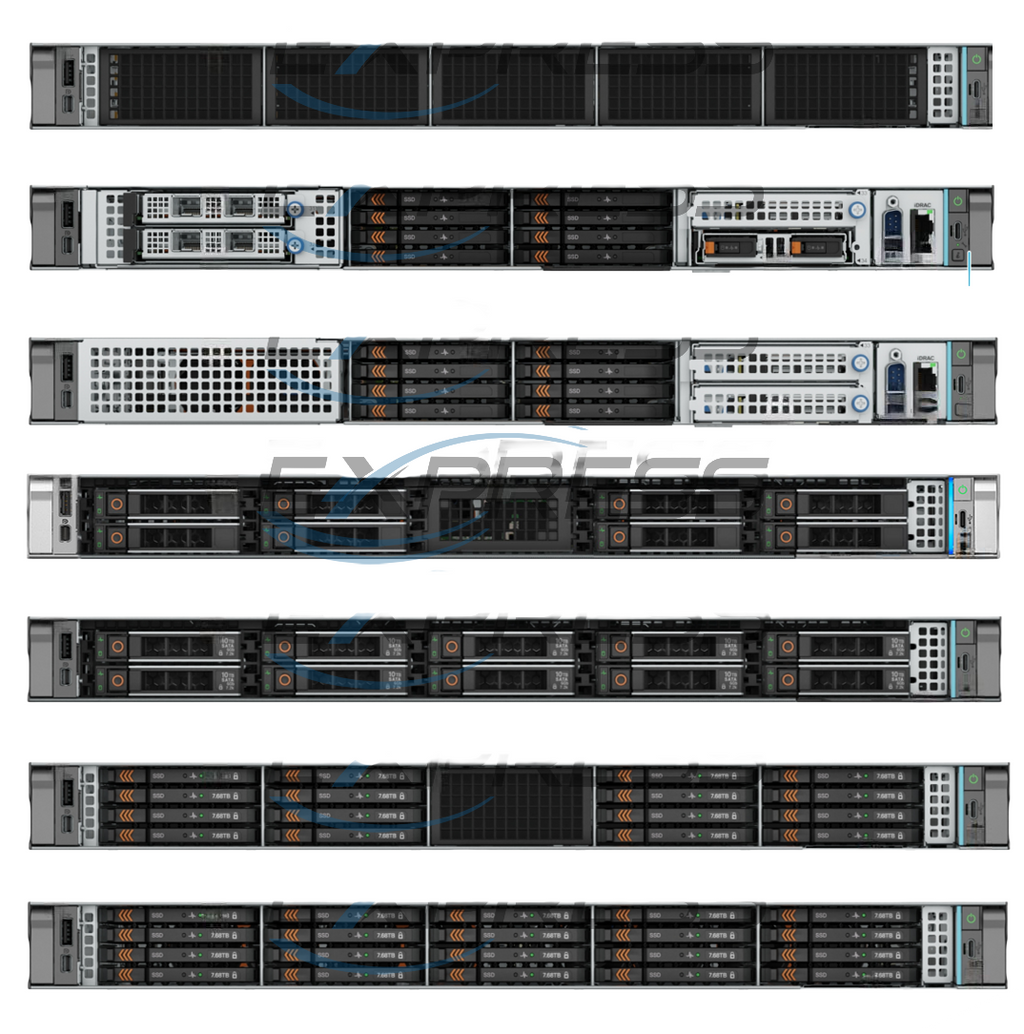

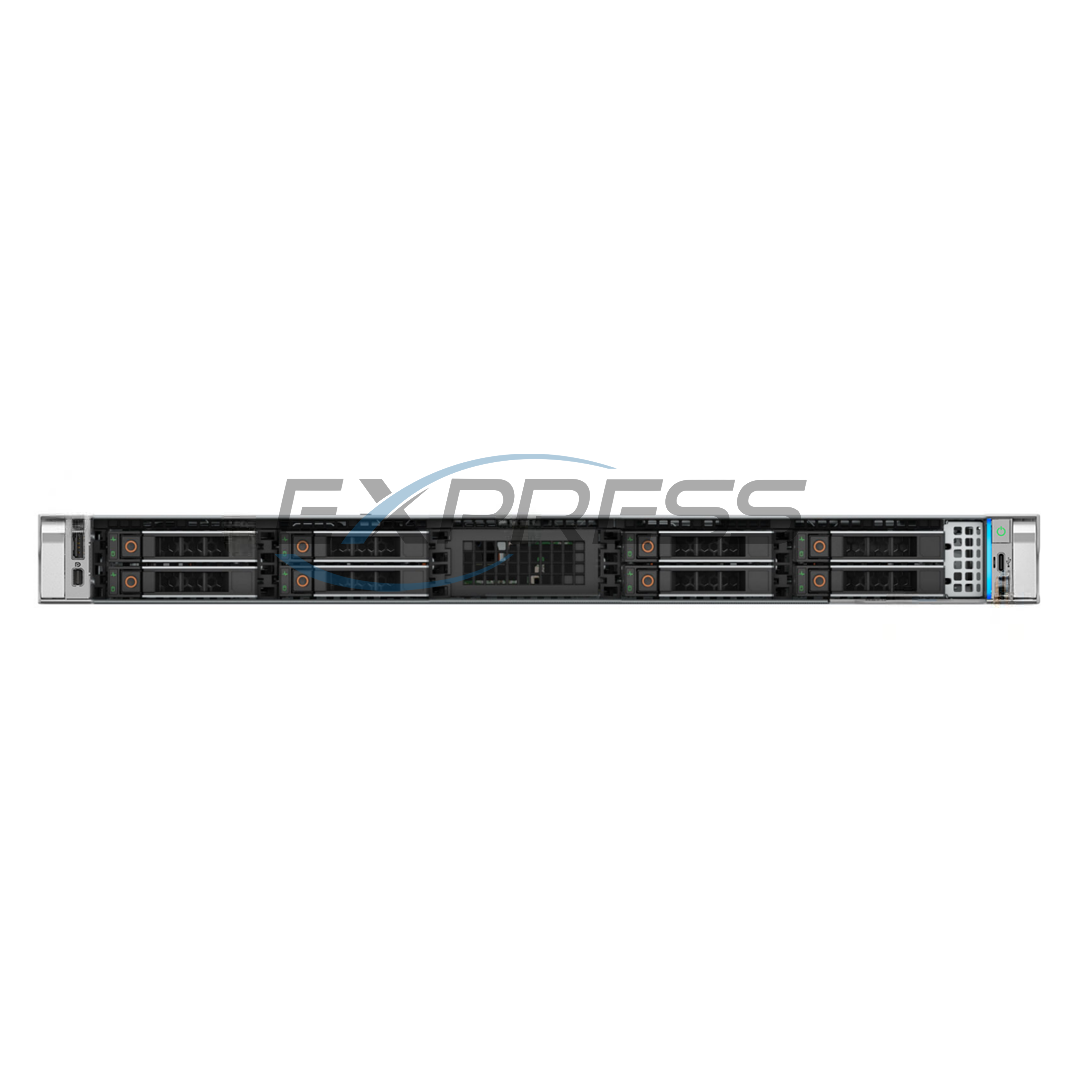

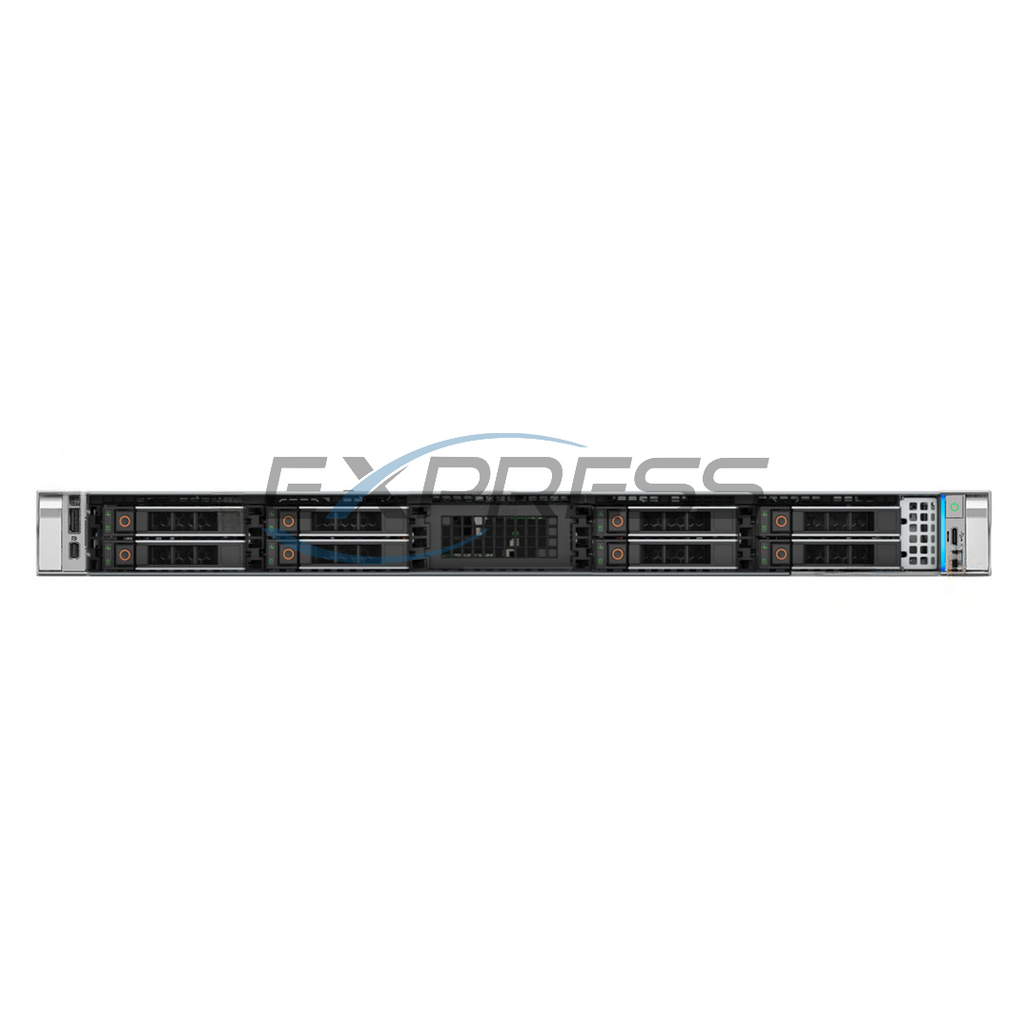

8x 2.5" (SAS/SATA/NVMe)

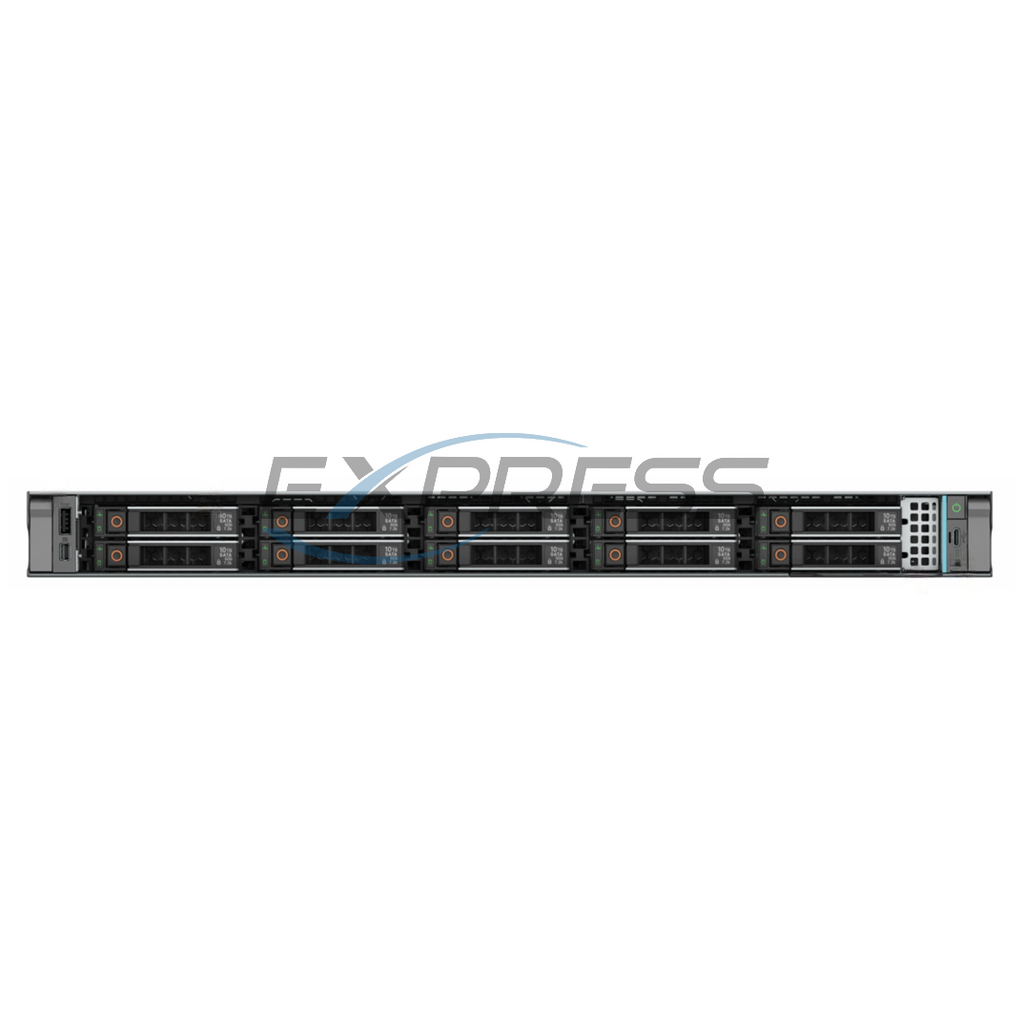

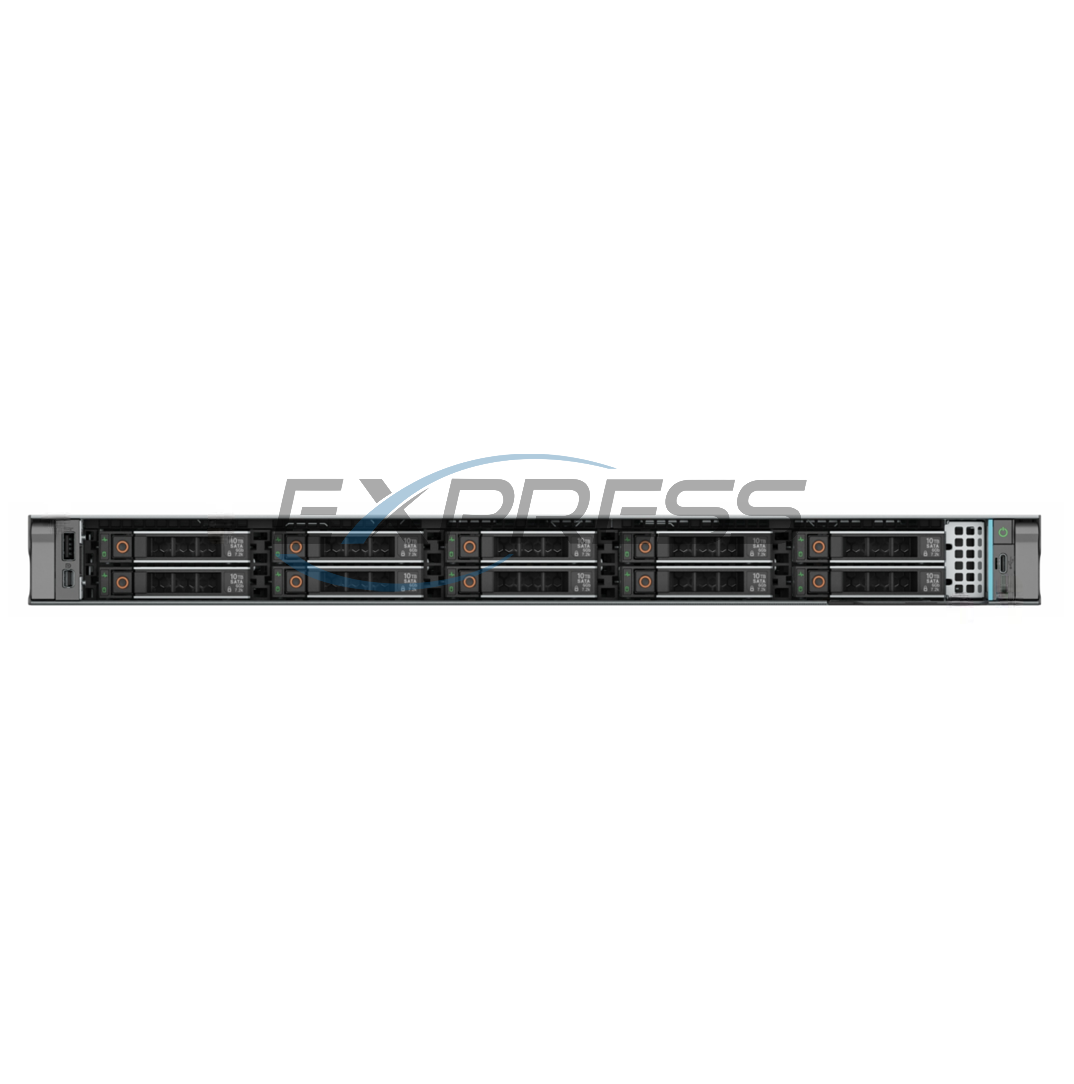

10x 2.5" (SAS/SATA/NVMe)
8x EDSFF E3.S NVMe (G5) Max: 122.88TB

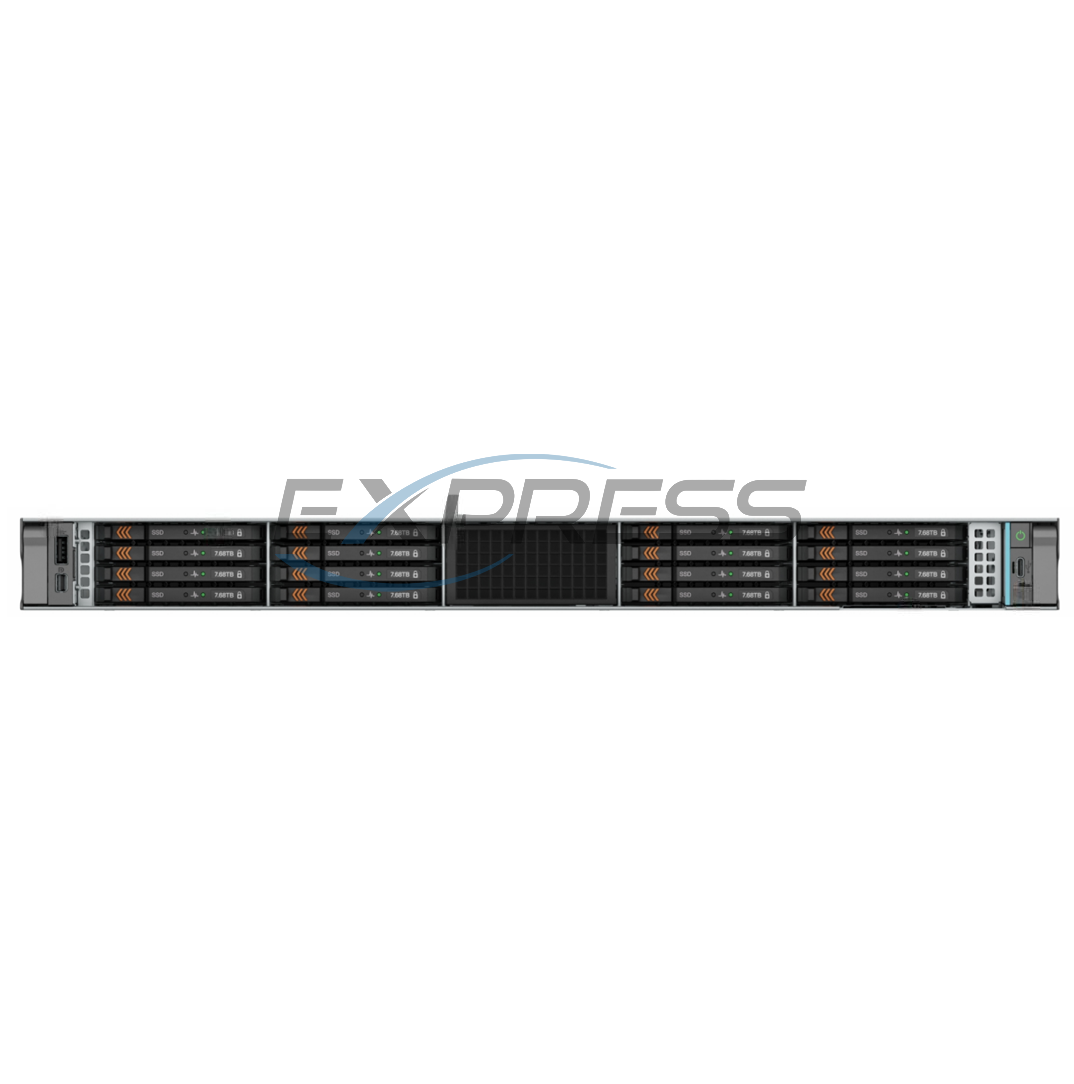

16x EDSFF E3.S NVMe (G5) Max: 245.76TB

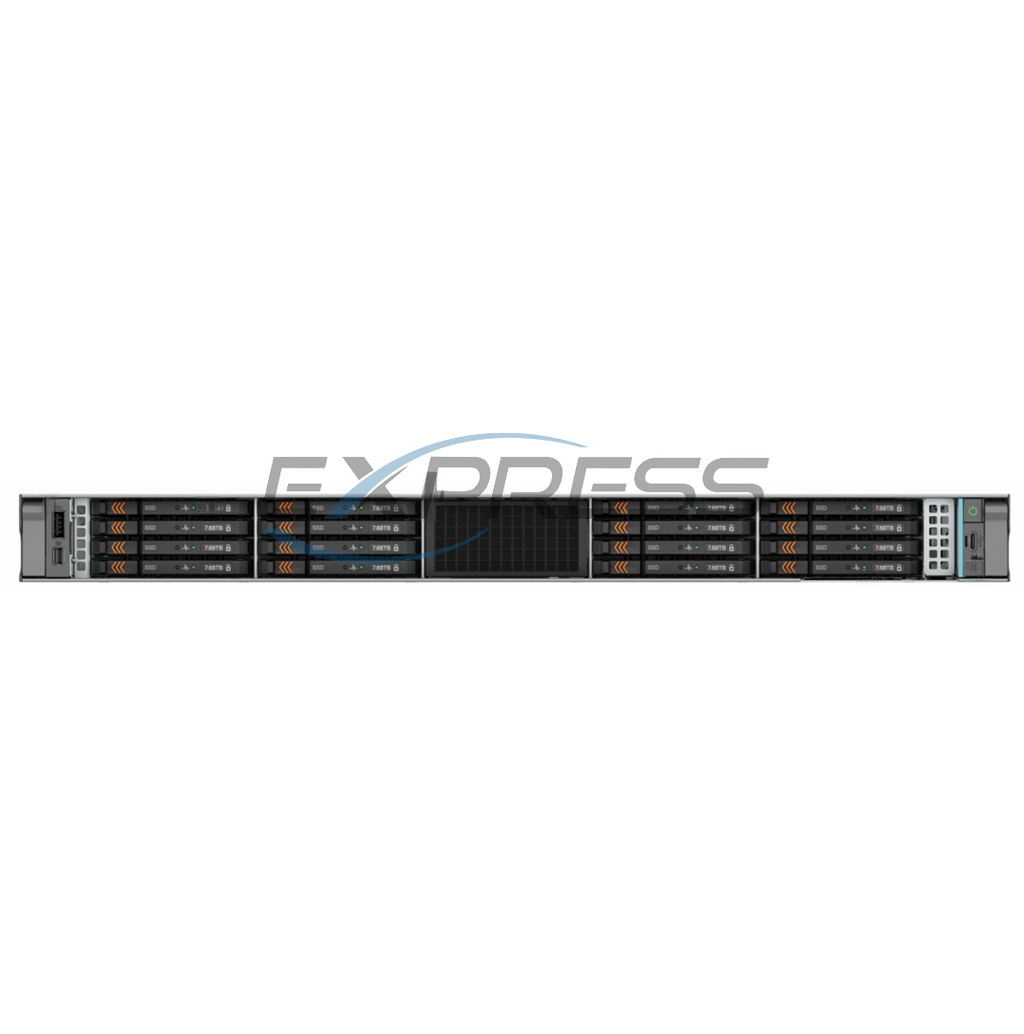

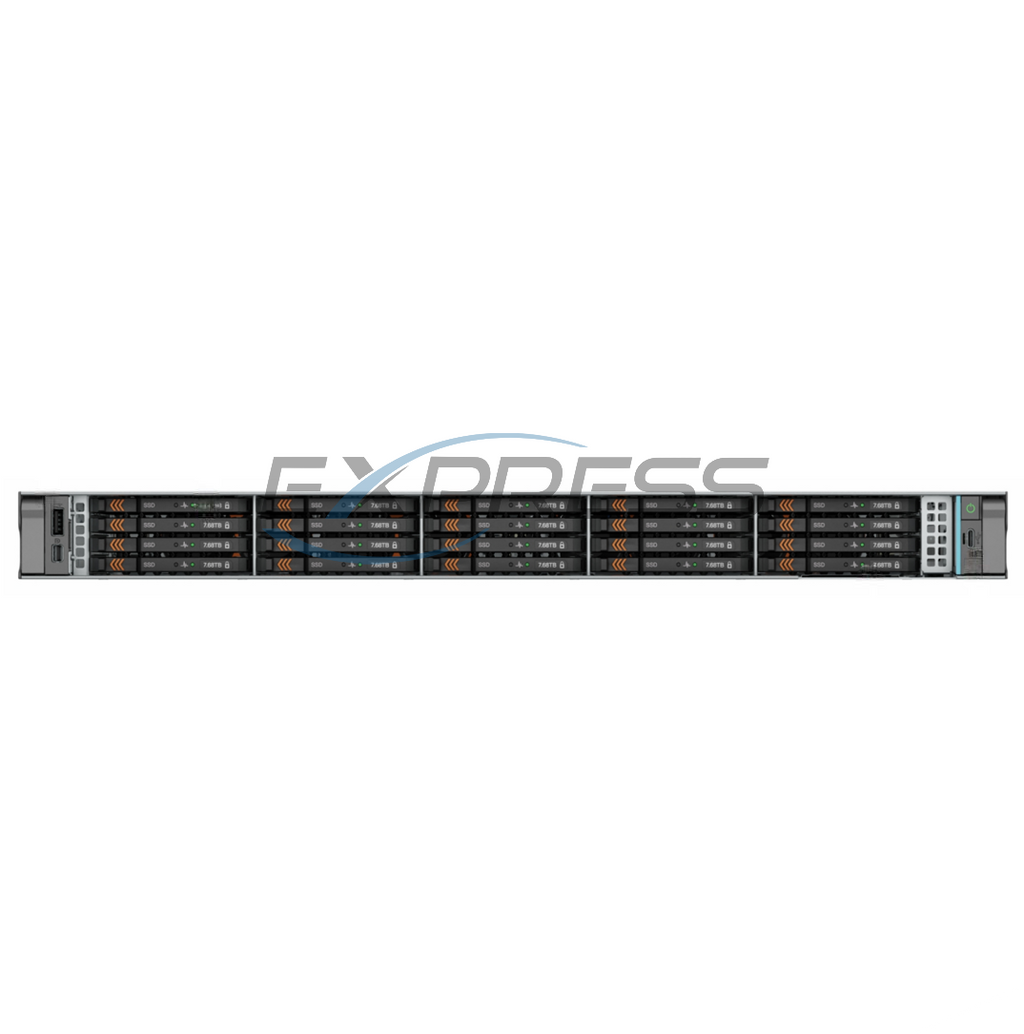

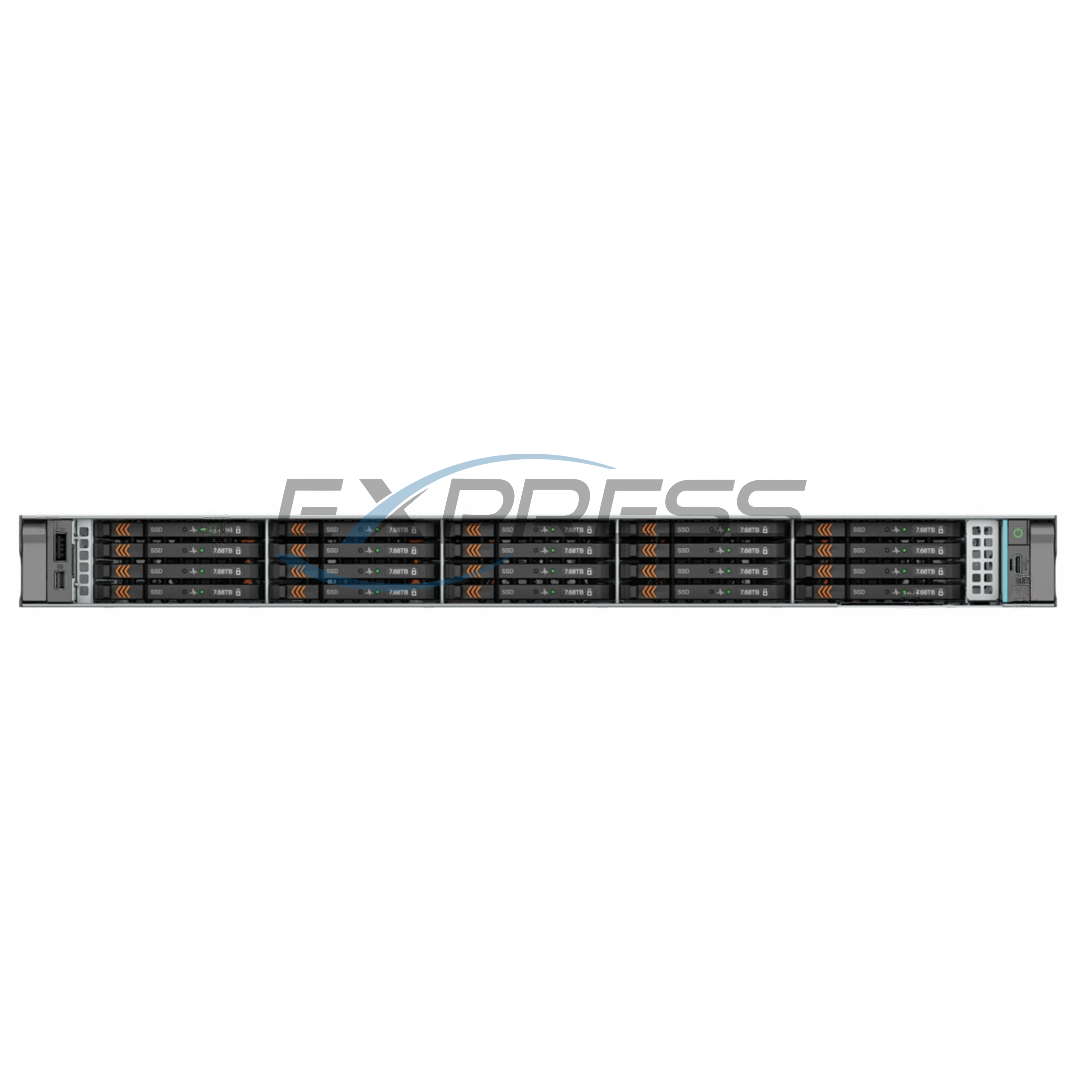

20x EDSFF E3.S NVMe (G5) Max: 307.2TB
Up to 2 x EDSFF E3.S Gen5 NVMe (20 EDSFF Chassis Only)
Storage Controller:H365i, H965i, H975i
H965e, HBA465e
BOSS-N1
BOSS-N1 DC-MHS
USB

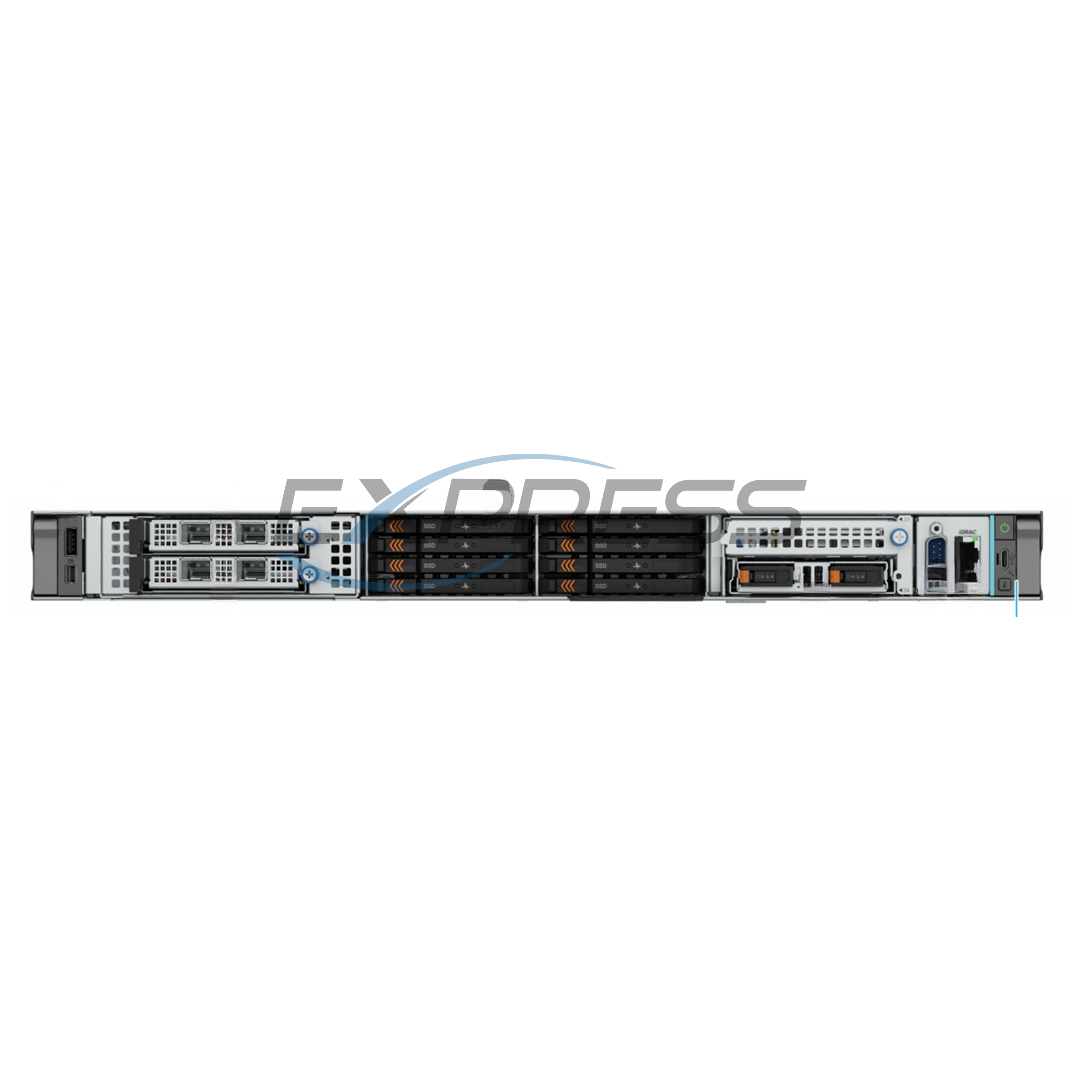

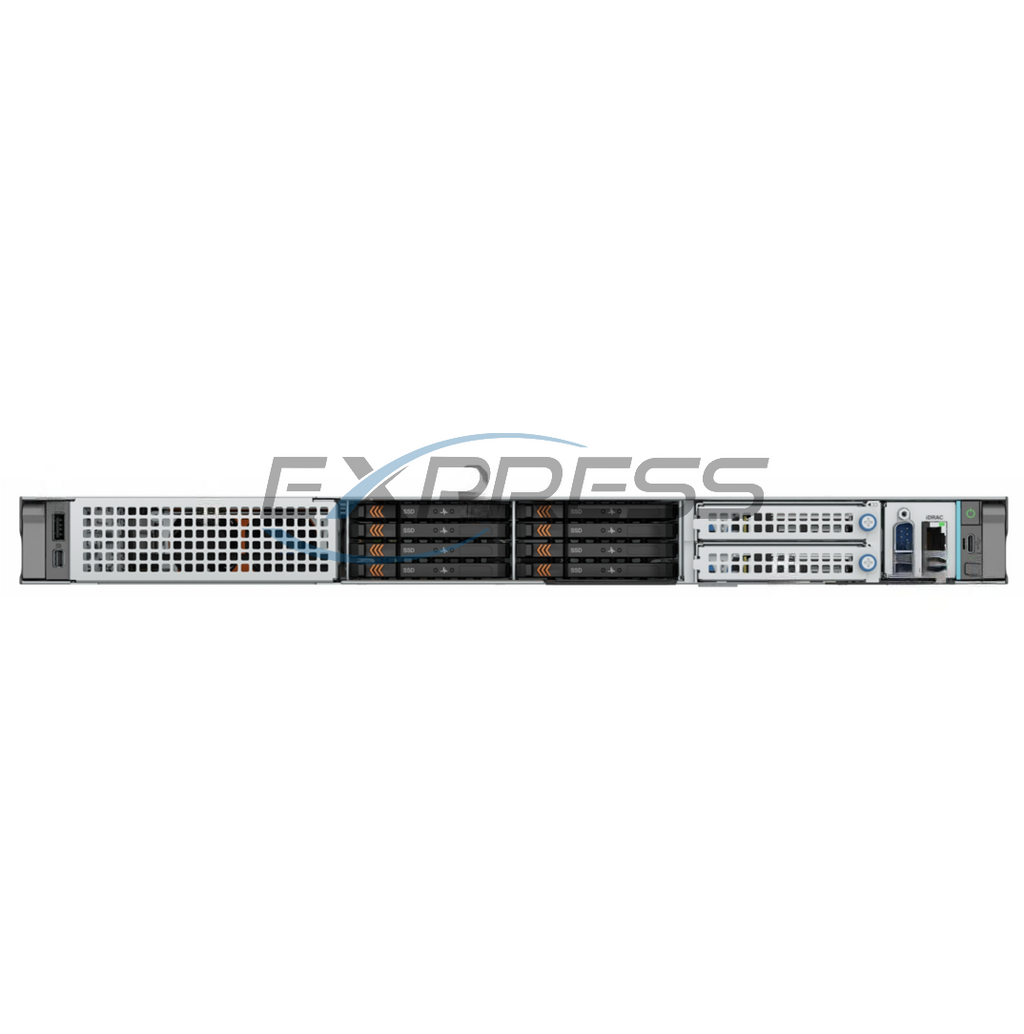

Front I/O supports 2x OCP 3.0

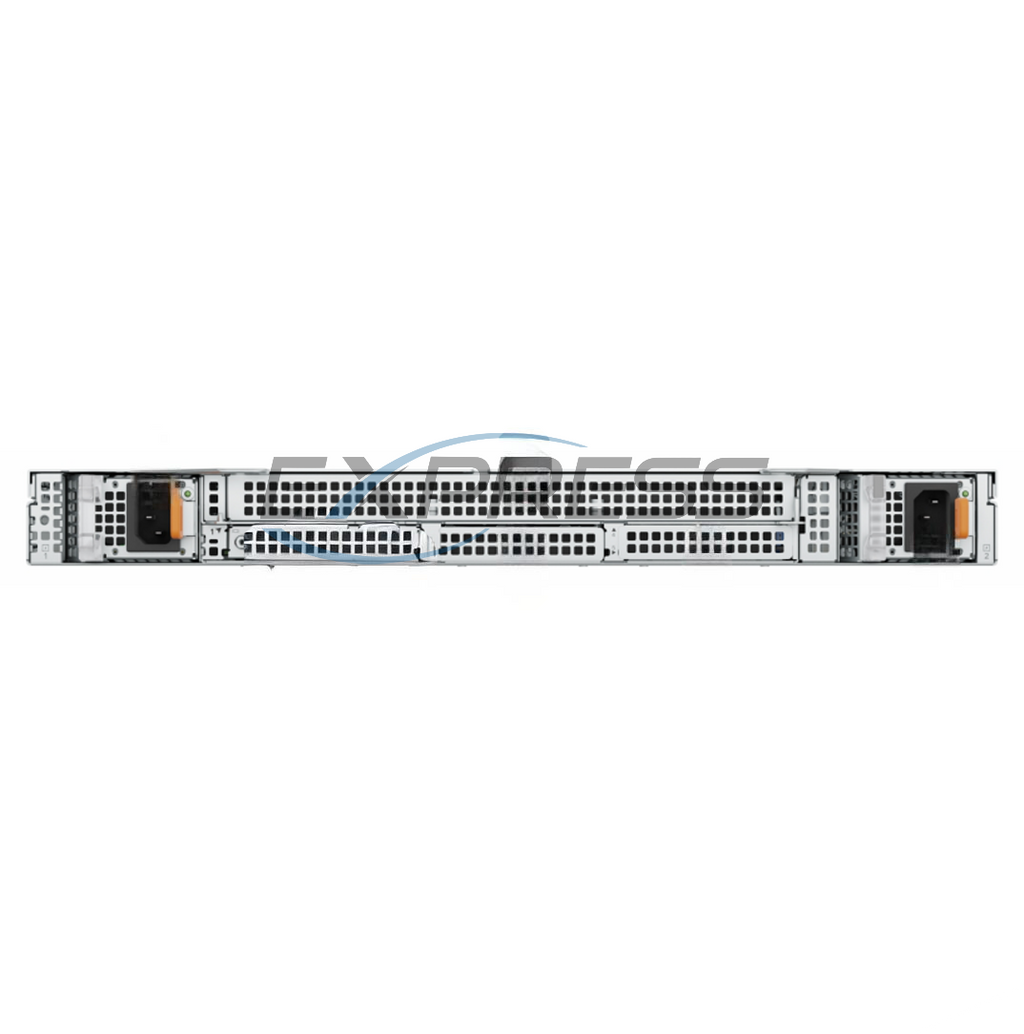

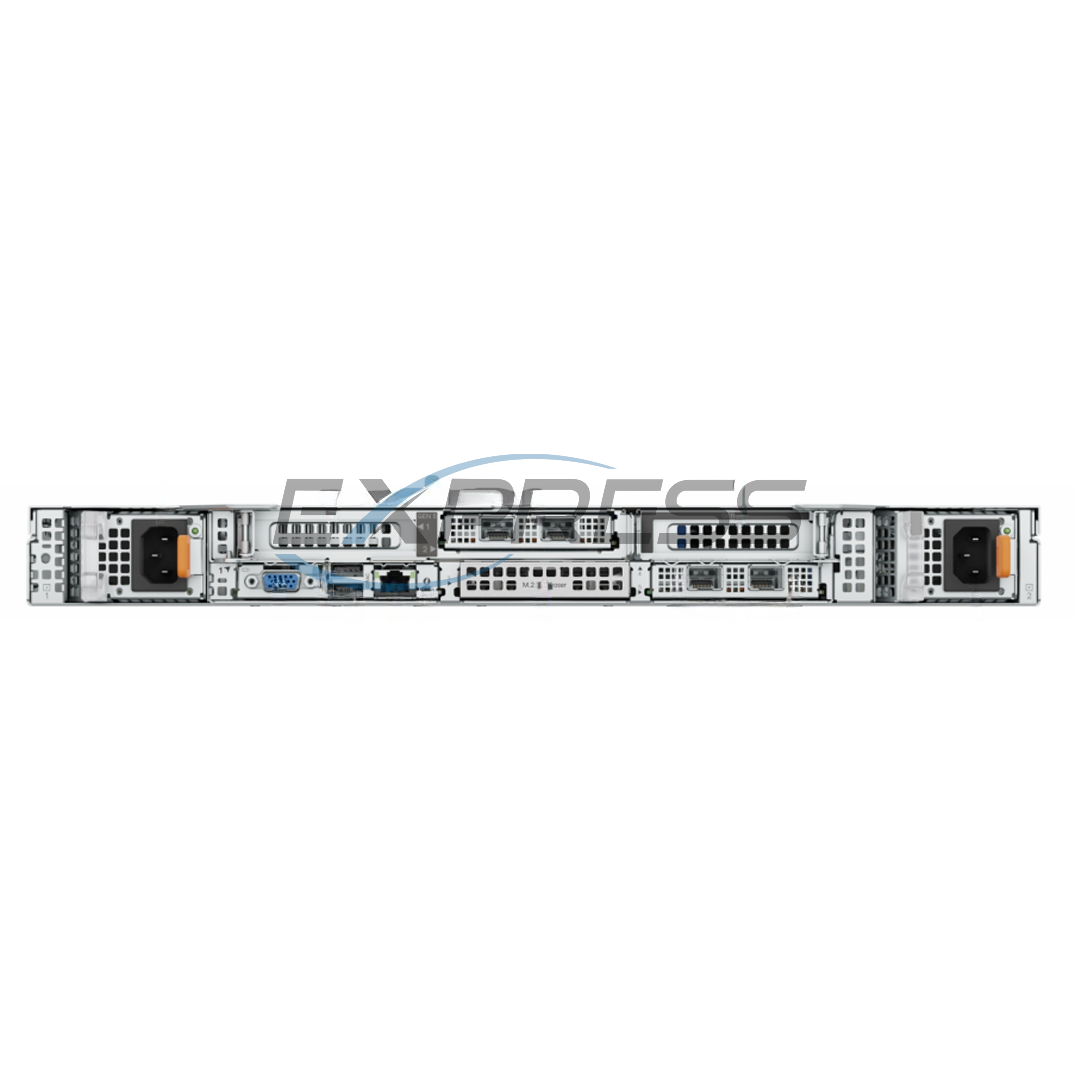

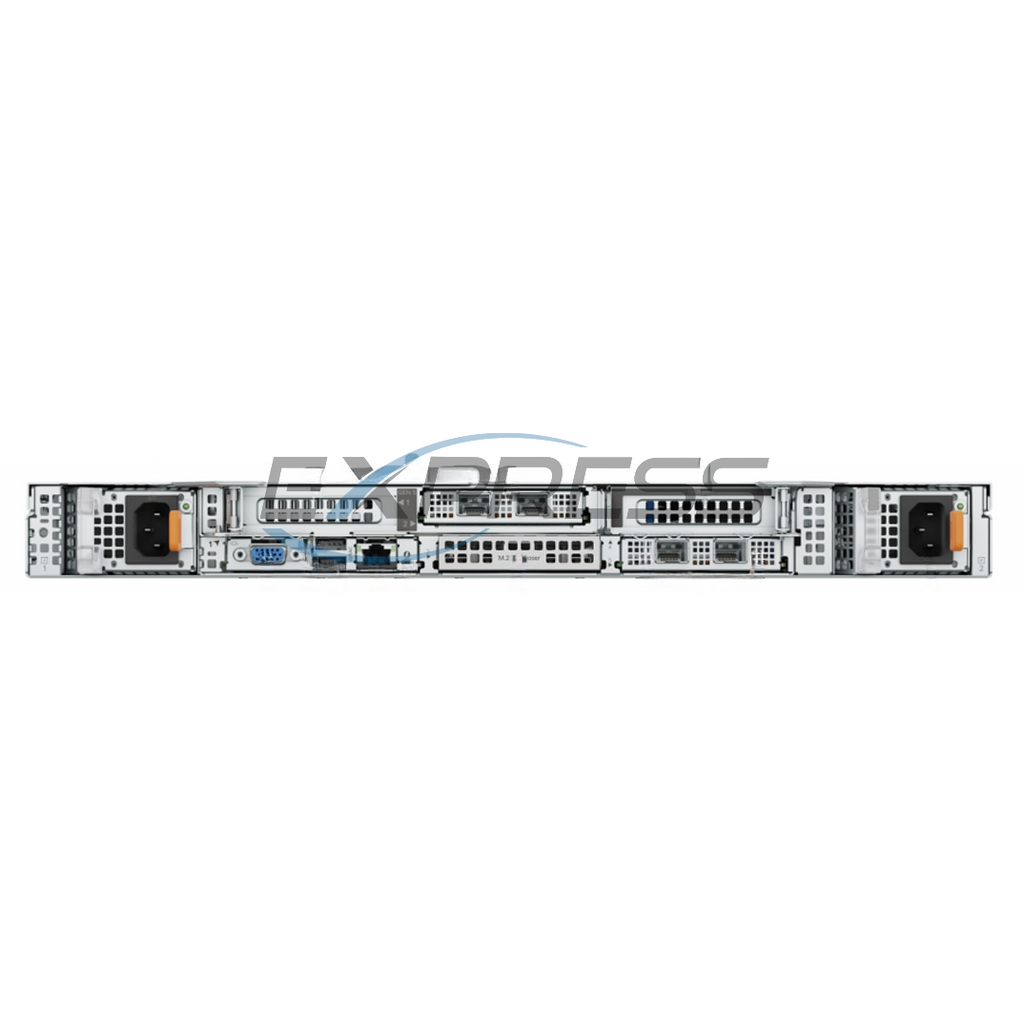

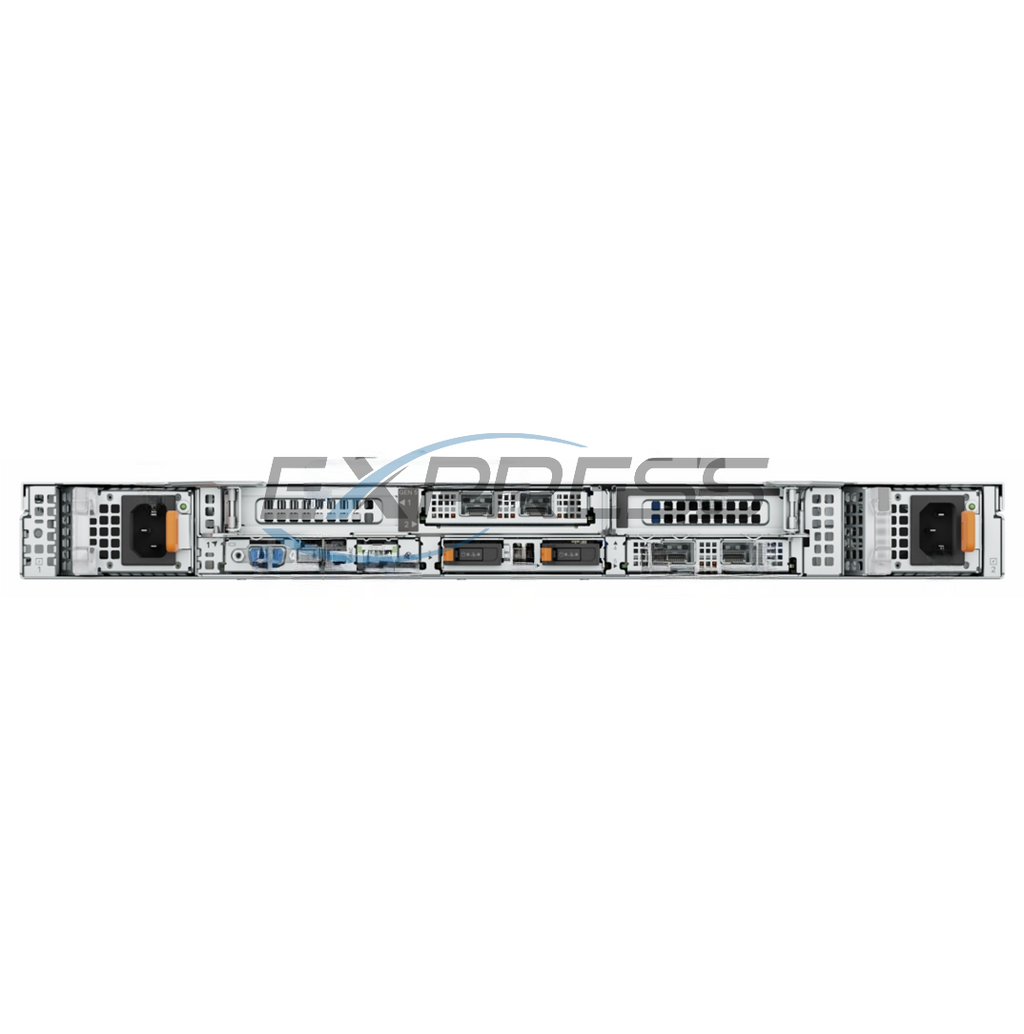

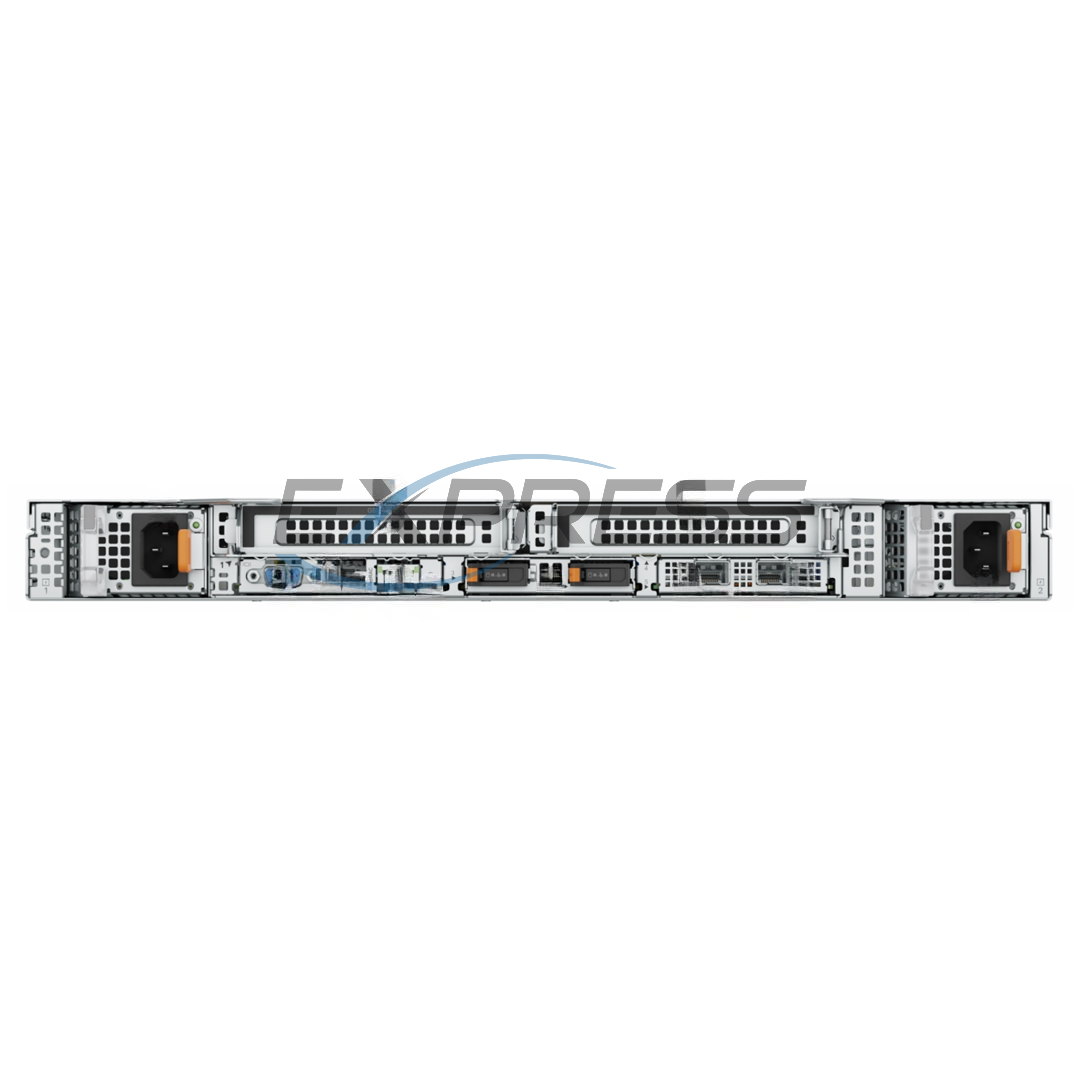

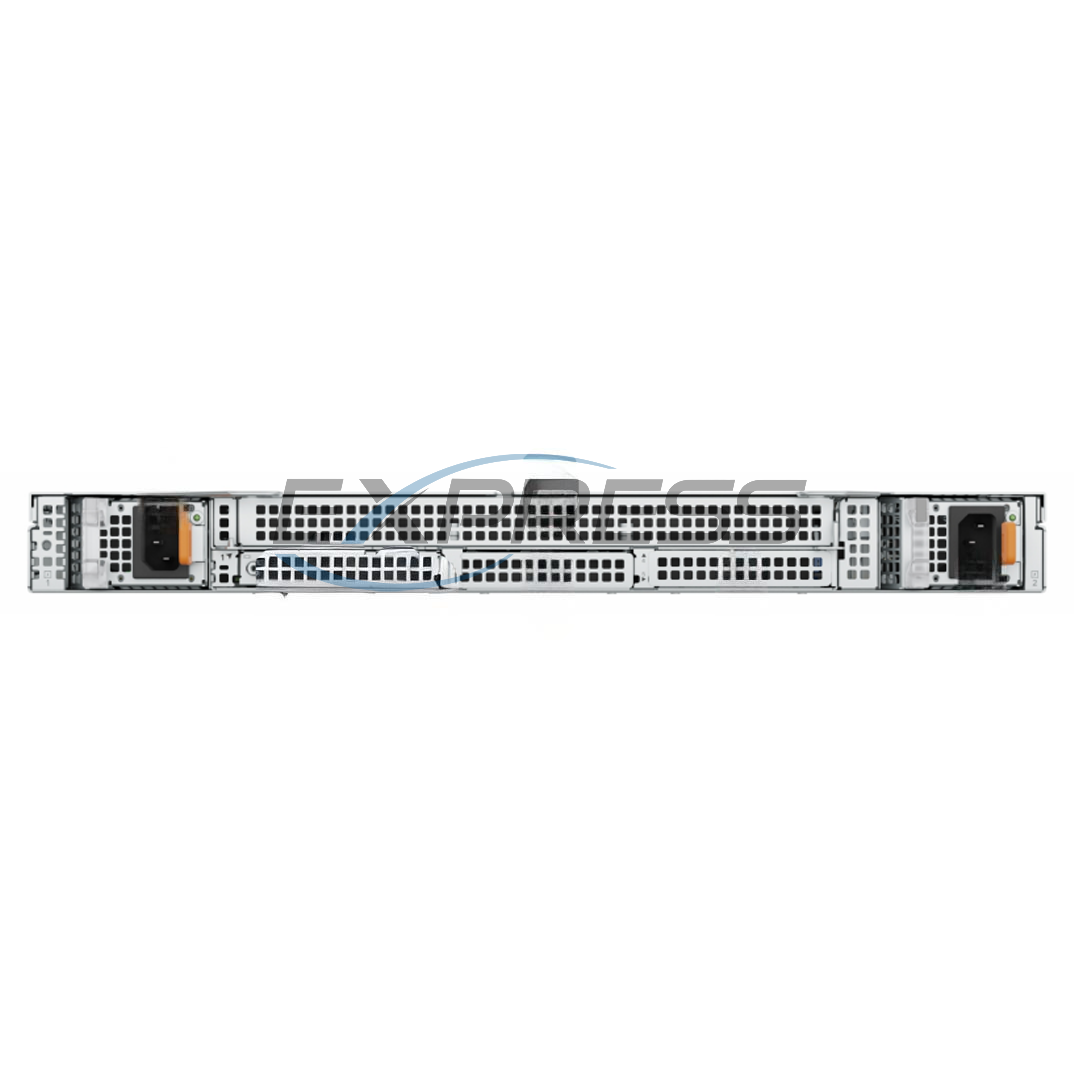

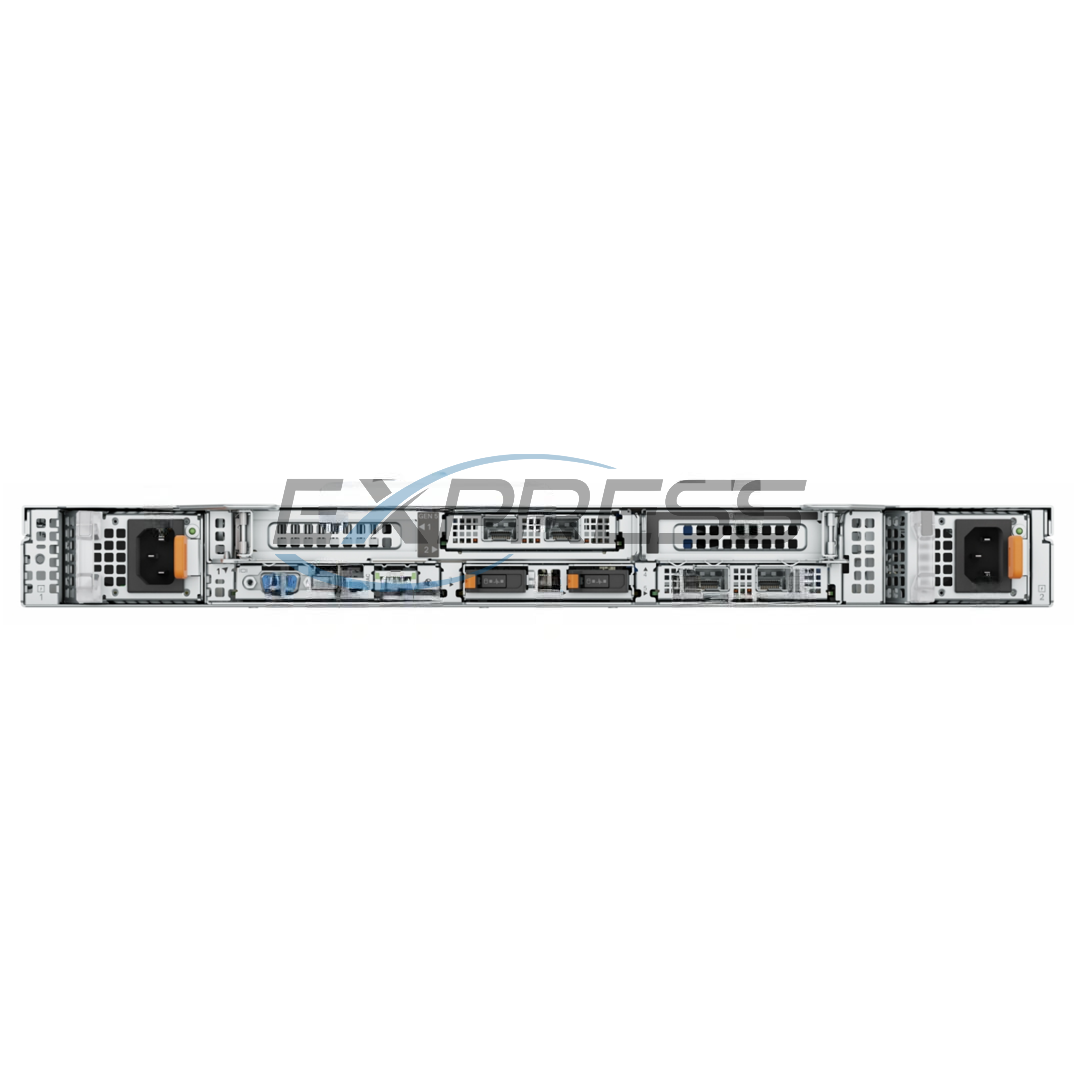

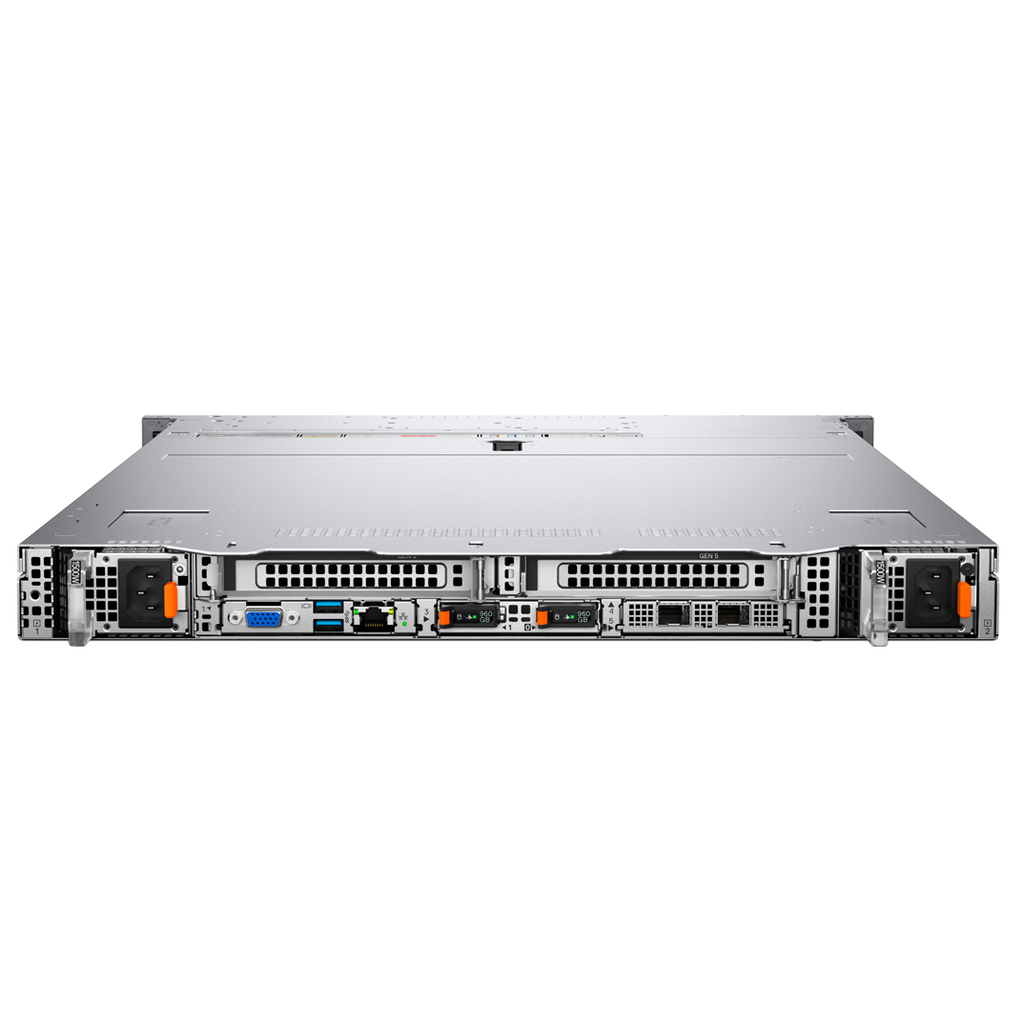

Rear I/O Supports 2x OCP 3.0 + 2x 1GbE LOM
iDRAC10
PCIe Slots:Front I/O, 2 x16 (G5)
3 x16 (G5) or 2 x8 (G5)
Up to 3 x 75 W SW
- Dell PowerEdge R610
- Dell PowerEdge R620
- Dell PowerEdge R630
- Dell PowerEdge R640
- Dell PowerEdge R6415
- Dell PowerEdge R650
- Dell PowerEdge R650XS
- Dell PowerEdge R6515
- Dell PowerEdge R6525
- Dell PowerEdge R660
- Dell PowerEdge R660XS
- Dell PowerEdge R6615
- Dell PowerEdge R6625
- Dell PowerEdge R670
(Click to View)
Ideal for:
- Cloud-Native Applications
- Database
- Virtualization

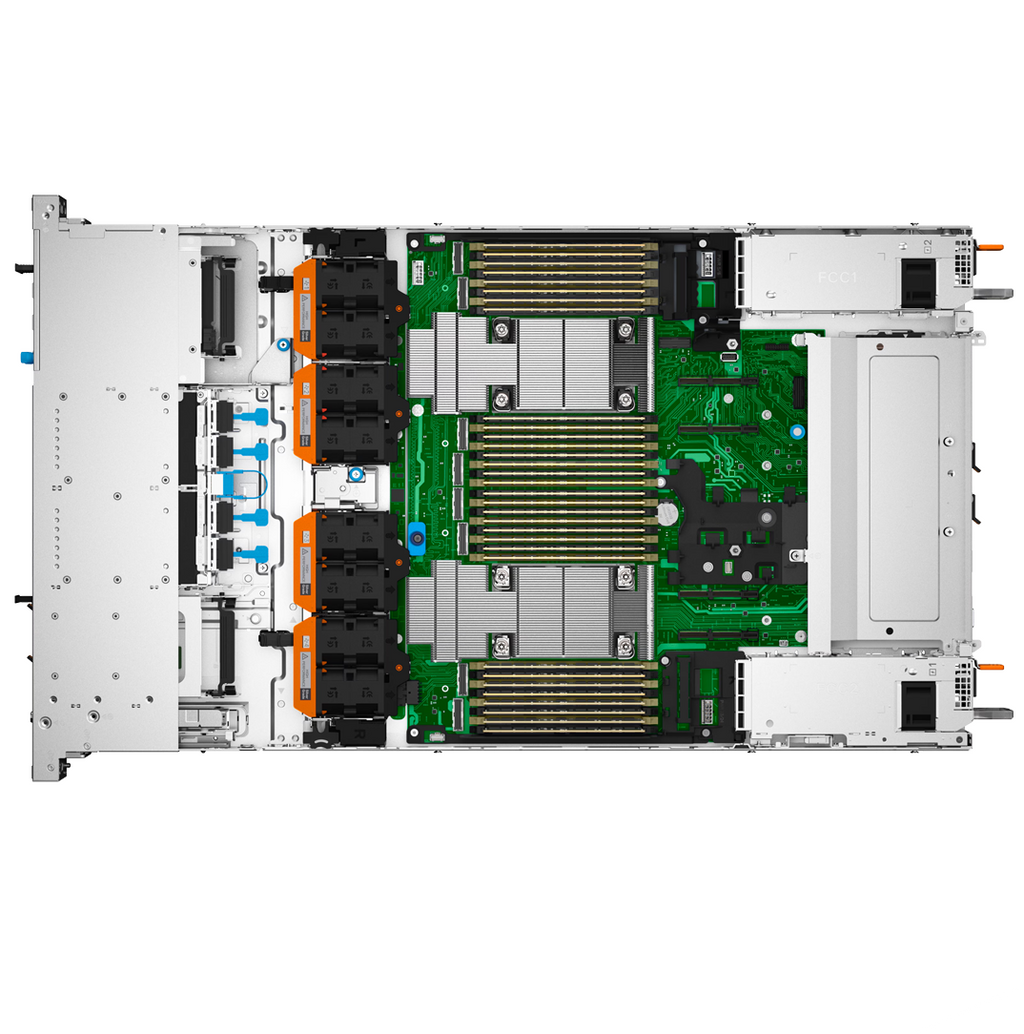

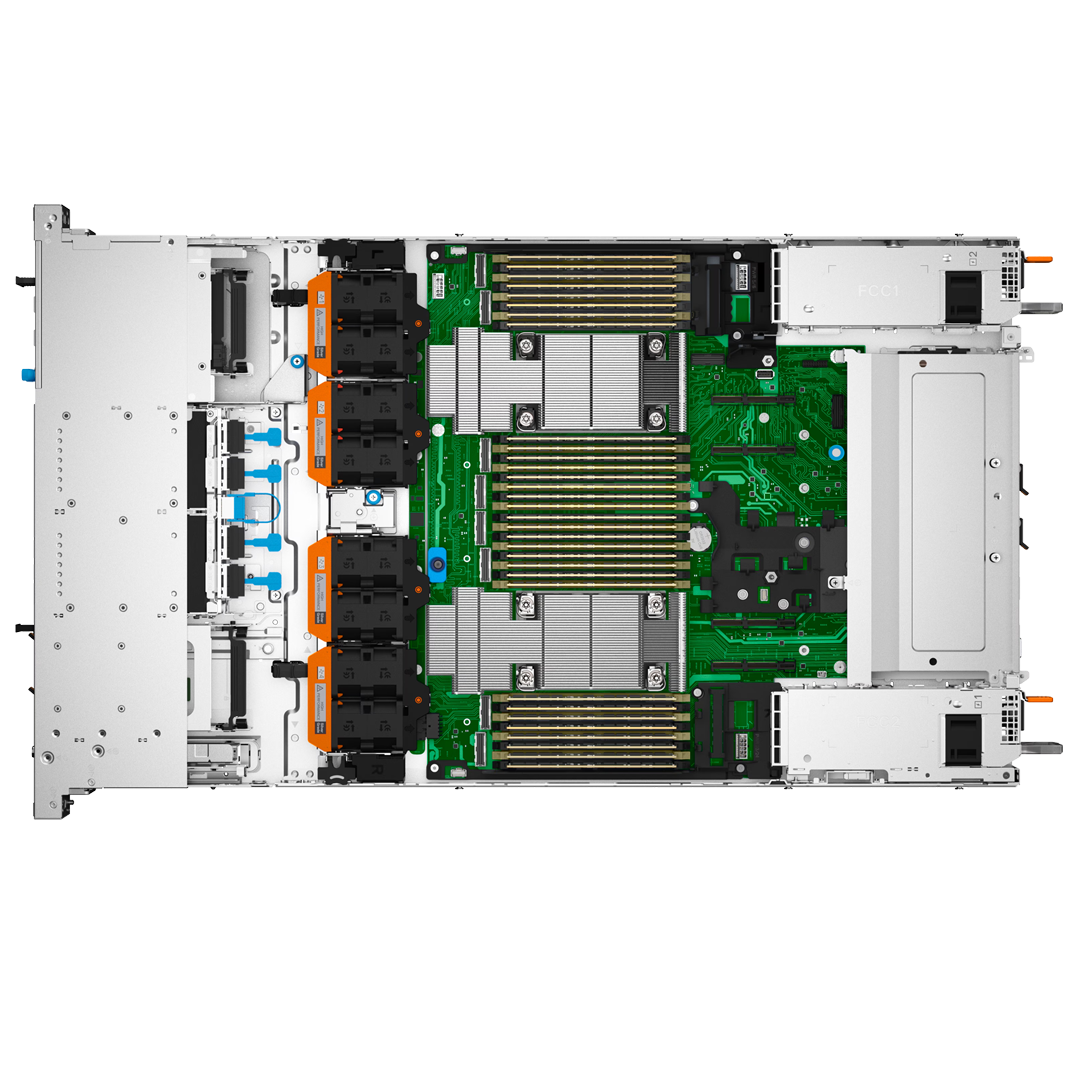

The Dell PowerEdge R670 server is a high-performance 1U dual-socket rack server built for modern enterprise data centers, offering optimal power efficiency and balanced performance to boost productivity. This versatile, energy-efficient server solution is well-suited for virtualization, cloud-native applications, all-flash SDS, hyperscale workloads, and scale-out databases — ideal for businesses looking to scale and modernize their IT infrastructure.
The Intel® Xeon® 6 series of processors offers both E-Core and P-Core processors. Mixing of CPUs is not supported.
Xeon E-CoresThe Intel® Xeon® 6 series single threaded processor stack is comprised entirely of efficiency cores (E-Cores) providing ultra-high core counts optimized for power efficient operations.
• Optimized for single-threaded workloads
• Up to 144 cores at 330 W TDP
• 6400 MT/s DDR5 memory
• Up to four 24 GT/s UPI 2.0
• PCIe 5.0 with up to 88 lanes per CPU
• Security features (SGX)
Xeon P-CoresThe Intel® Xeon® 6 series processor stack is comprised entirely of performance cores (P-Cores), providing high core counts optimized for power and performance.
• Optimized for multi-threaded applications and workloads
• Up to 86 cores at 350 W TDP
• 6400 MT/s DDR5 memory
• Up to four 24 GT/s UPI 2.0
• PCIe 5.0 with up to 88 lanes per CPU
• Security features (SGX)
1U Heatsink | TDP < 270 W
L-Type Heatsink | TDP >= 270 W

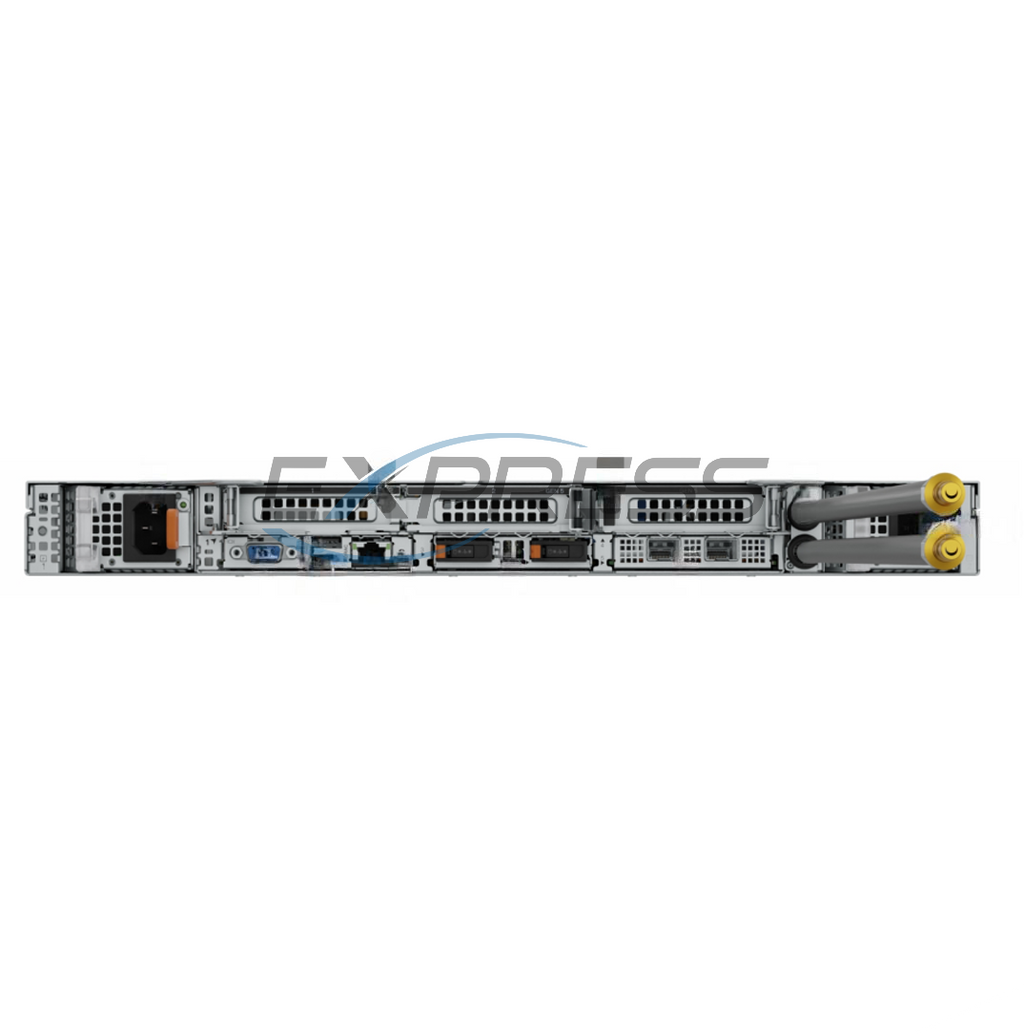

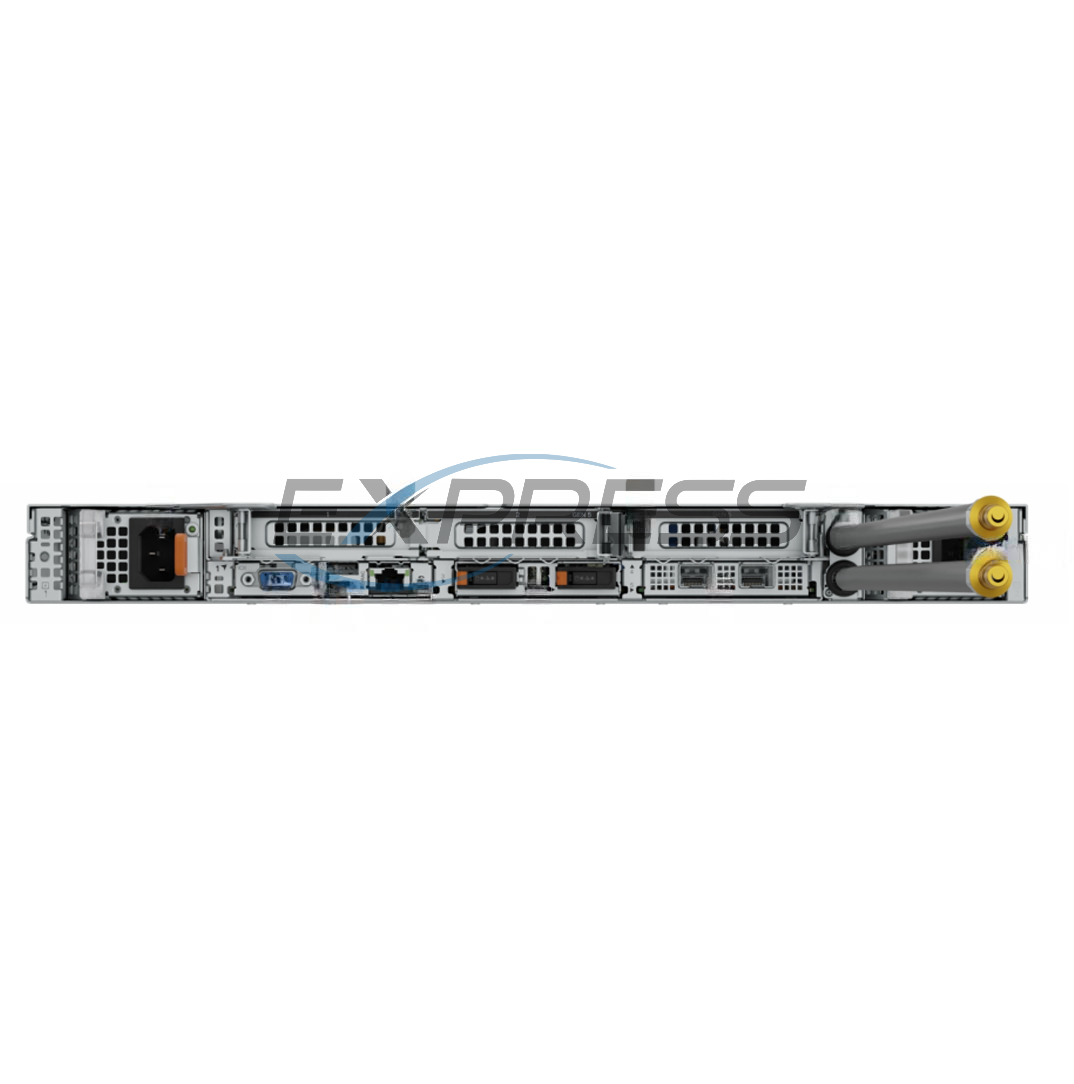

Liquid Cooling (DLC)
- Supports up to 4 set Standard (STD) hot-swappable cooling fans, each consisting of a dual fan module.
- Supports up to 4 set high-performance silver (HPR SLVR) hot-swappable cooling fans, each consisting of a dual fan module.
Please view the "Table 54. Thermal restriction matrix" in the tech manual below for more details.
The Dell PowerEdge R760 holds up to 32x DDR5 DIMMs
| DIMM type | Rank | Capacity | DIMM voltage and speed | E-core processor | P-core processor | ||
|---|---|---|---|---|---|---|---|
| 1 DIMM per channel (DPC) | 2 DIMM per channel (DPC) | 1 DIMM per channel (DPC) | 2 DIMM per channel (DPC) | ||||
| RDIMM | 1R | 16 GB | DDR5 (1.1 V), 6400 MT/s | N/A | N/A | Up to 6400 MT/s | N/A |
| 2R | 32 GB | DDR5 (1.1 V), 6400 MT/s | Up to 6400 MT/s | N/A | Up to 6400 MT/s | Up to 5200 MT/s | |
| RDIMM | 2R | 64 GB | DDR5 (1.1 V), 6400 MT/s | Up to 6400 MT/s | Up to 5200 MT/s | Up to 6400 MT/s | Up to 5200 MT/s |
| 96 GB | DDR5 (1.1 V), 6400 MT/s | N/A | N/A | Up to 6400 MT/s | Up to 5200 MT/s | ||
| 128 GB | DDR5 (1.1 V), 6400 MT/s | N/A | N/A | Up to 6400 MT/s | Up to 5200 MT/s | ||
| 256 GB | DDR5 (1.1 V), 6400 MT/s | N/A | N/A | N/A | Up to 5200 MT/s | ||
Front H965i DC-MHS- RAID: 0, 1, 5, 6, 10, 50, and 60
- Non–RAID: Yes
- Host bus type: PCIe 4.0 x16
- Processor: Broadcom RAID-on-chip, SAS4116W chipset
- Power Backup unit: Battery
- Cache memory: 8 GB DDR4 3200 MT/s cache
- Cache function: Write-back, read-ahead, write-through, always write-back, no read-ahead
- Supported Drive Types: 22.5 Gbps SAS, 12 Gbps SAS, and 6 Gbps SATA/SAS. Gen3 (8 GT/s) and Gen4 (16 GT/s) NVMe
-
maximum SAS/SATA: w/o SAS Expander: 16 drives per controller
With SAS Expander: 240 SAS/SATA -
maximum NVMe: w/o PCIe Switch Expander: 8 drives per controller
With PCIe Switch Expander: 24 NVMe
Front H975i DC-MHS- RAID: 0, 1, 5, 6, 10, 50, and 60
- Non–RAID: Yes
- Host bus type: PCIe 5.0 x16
- Processor: Broadcom RAID-on-chip, SAS5132W chipset
- Power Backup unit: Supercapacitor
- Cache memory: Integrated RAID cache
- Cache function: Write-back, write-through, always write-back, no read-ahead
- Supported Drive Types: Gen3 (8 GT/s), Gen4 (16 GT/s), and Gen5 (32 GT/s) NVMe
- maximum SAS/SATA: Not supported
- maximum NVMe: 32 drives
Front H365i DC-MHS- RAID: 0, 1, and 10
- Non–RAID: Yes
- Host bus type: PCIe 4.0 x8 @ 16Gbps
- Processor: Broadcom RAID-on-chip, SAS4016 chipset
- Power Backup unit: No
- Cache memory: No
- Cache function: Write-through
- Supported Drive Types: 22.5 Gbps SAS, 12 Gbps SAS, and 6 Gbps SATA/SAS. Gen3 (8 GT/s) and Gen4 (16 GT/s) NVMe
-
Maximum SAS/SATA: w/o SAS Expander: 16 drives
w/ SAS Expander: Depends on your PowerEdge server model. -
Maximum NVMe: w/o PCIe Switch Expander: 8/16 drives
w/ PCIe Switch Expander: 32 drives

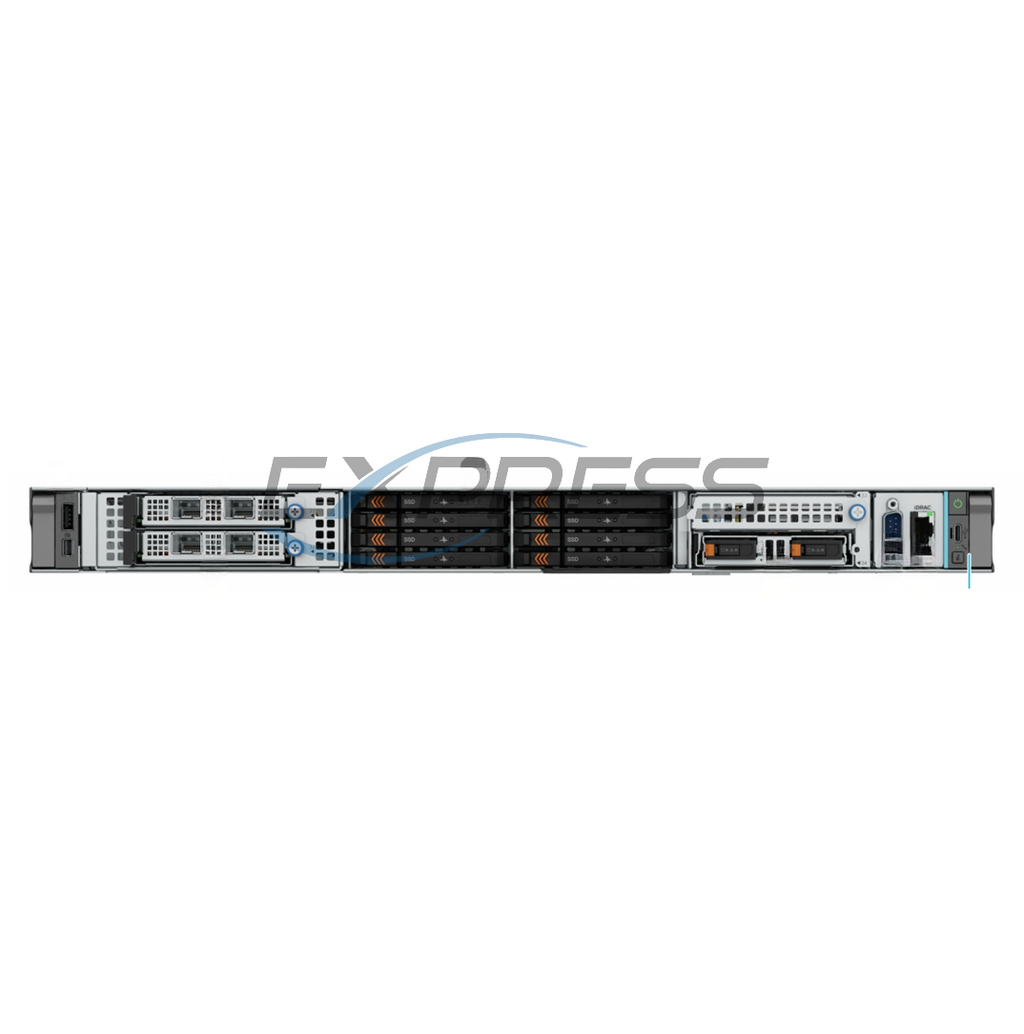

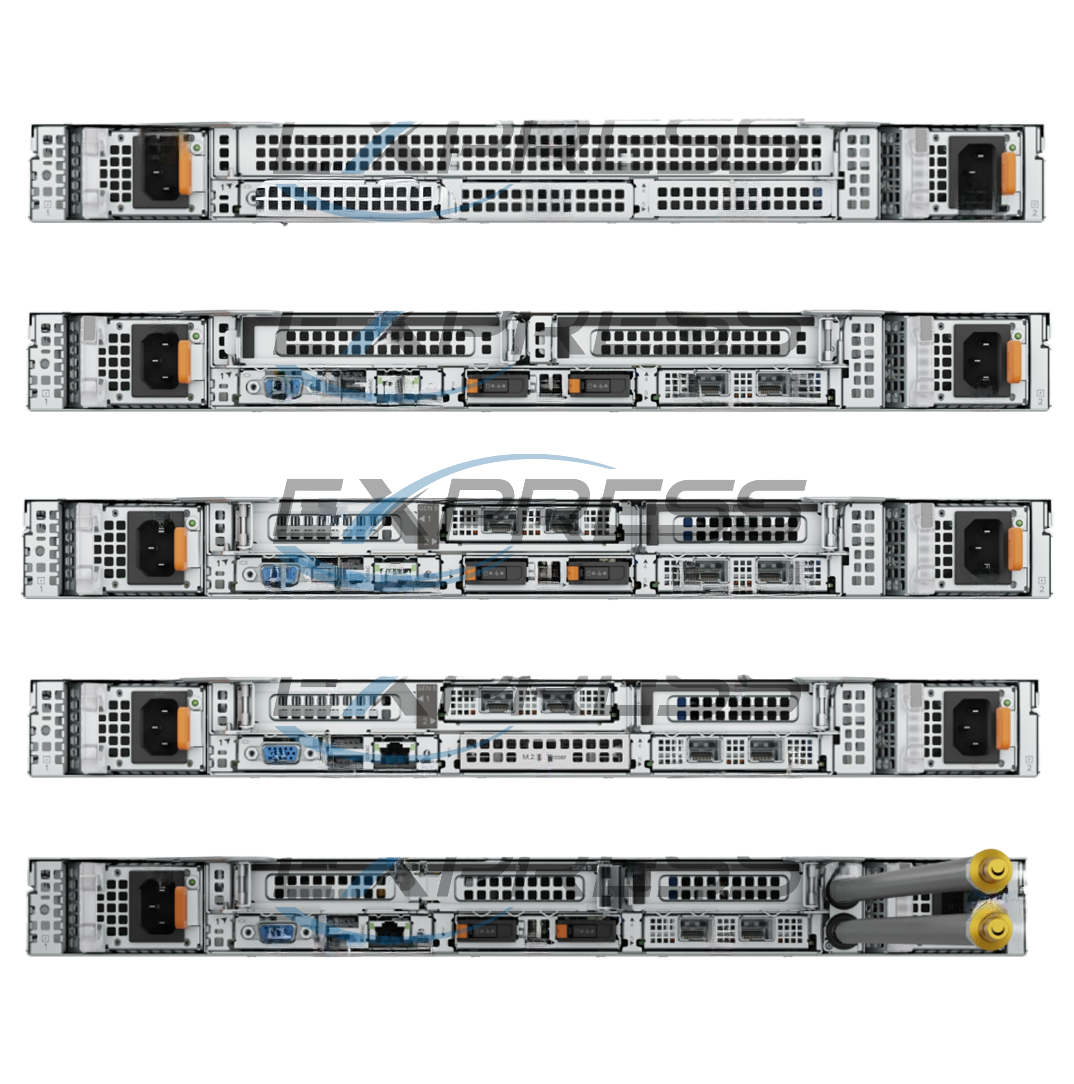

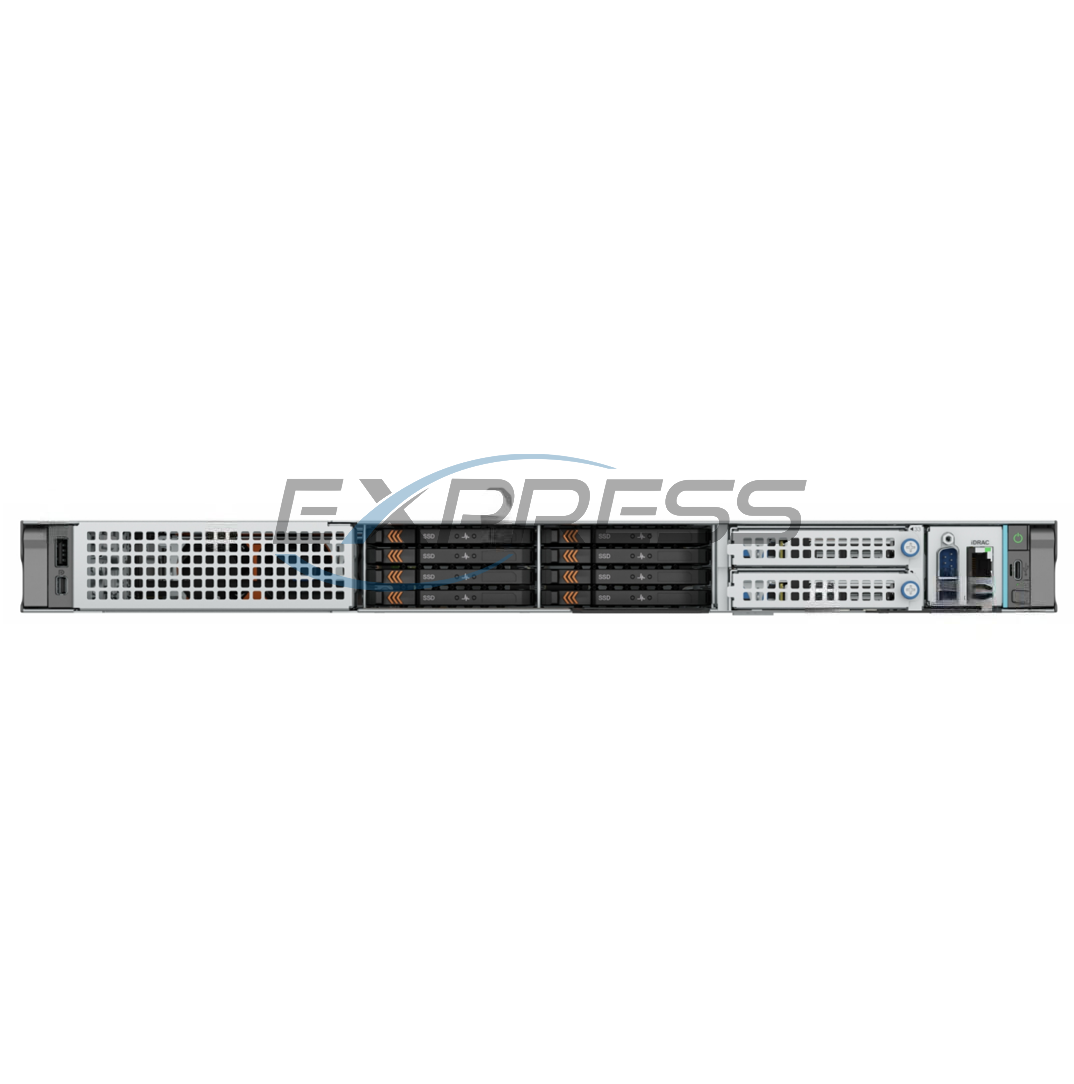

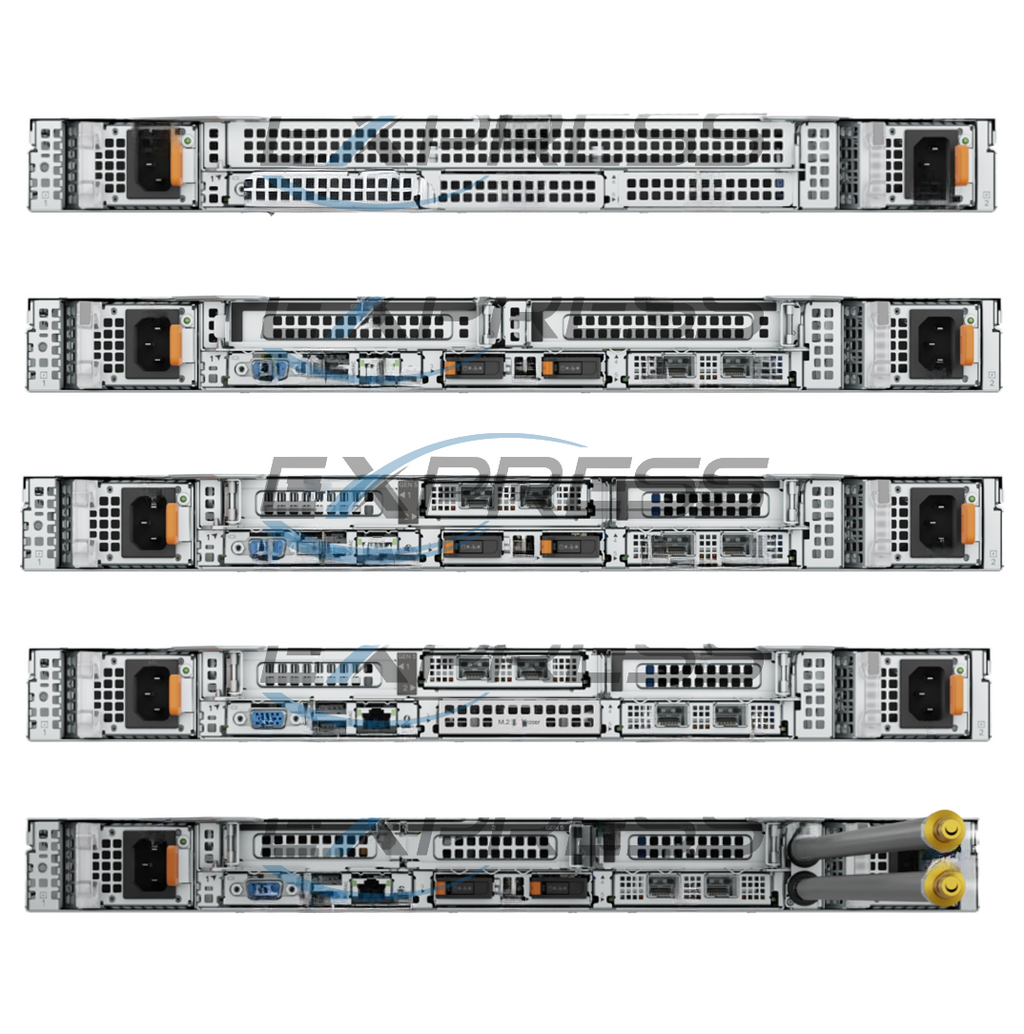

The system supports either Front I/O configuration (system with front risers) or Rear I/O configuration (system with rear risers).
RF1a
RF1b
R2b Riser
R2c Riser
R2e Riser
R2f Riser
R2g Riser
R4a Riser
R4b Riser| Riser configurations (RC) | Expansion card risers | PCIe Slots | Form factor | Controlling processor | Slot's electrical physical/bandwidth connector |
|---|---|---|---|---|---|
| RC0: 1x8(x16) + OCP(3)x1xBOSS |
OCP | 5 | OCP | Processor 0 | PCIe Gen5 x16 (OCP 4C+ connector) |
| BOSS | 3 | BOSS | Processor 0 | PCIe Gen3 x4 (IC connector) | |
| RC1 (front): 2x16FH(G5) |
RF1a | 31 | Full height | Processor 0 | PCIe Gen5 x16 (x16 connector) |
| 32 | Full height | Processor 1 | PCIe Gen5 x16 (x16 connector) | ||
| BOSS | 34 | BOSS | Processor 0 | PCIe Gen3 x4 4 (1C connector) | |
| RC2 (front): 2x16OCP(G5) |
RF1b | 31 | OCP | Processor 0 | PCIe Gen5 x16 (OCP 4C+ connector) |
| 32 | OCP | Processor 1 | PCIe Gen5 x16 (OCP 4C+ connector) | ||
| BOSS | 34 | BOSS | Processor 0 | PCIe Gen3 x4 (IC connector) | |

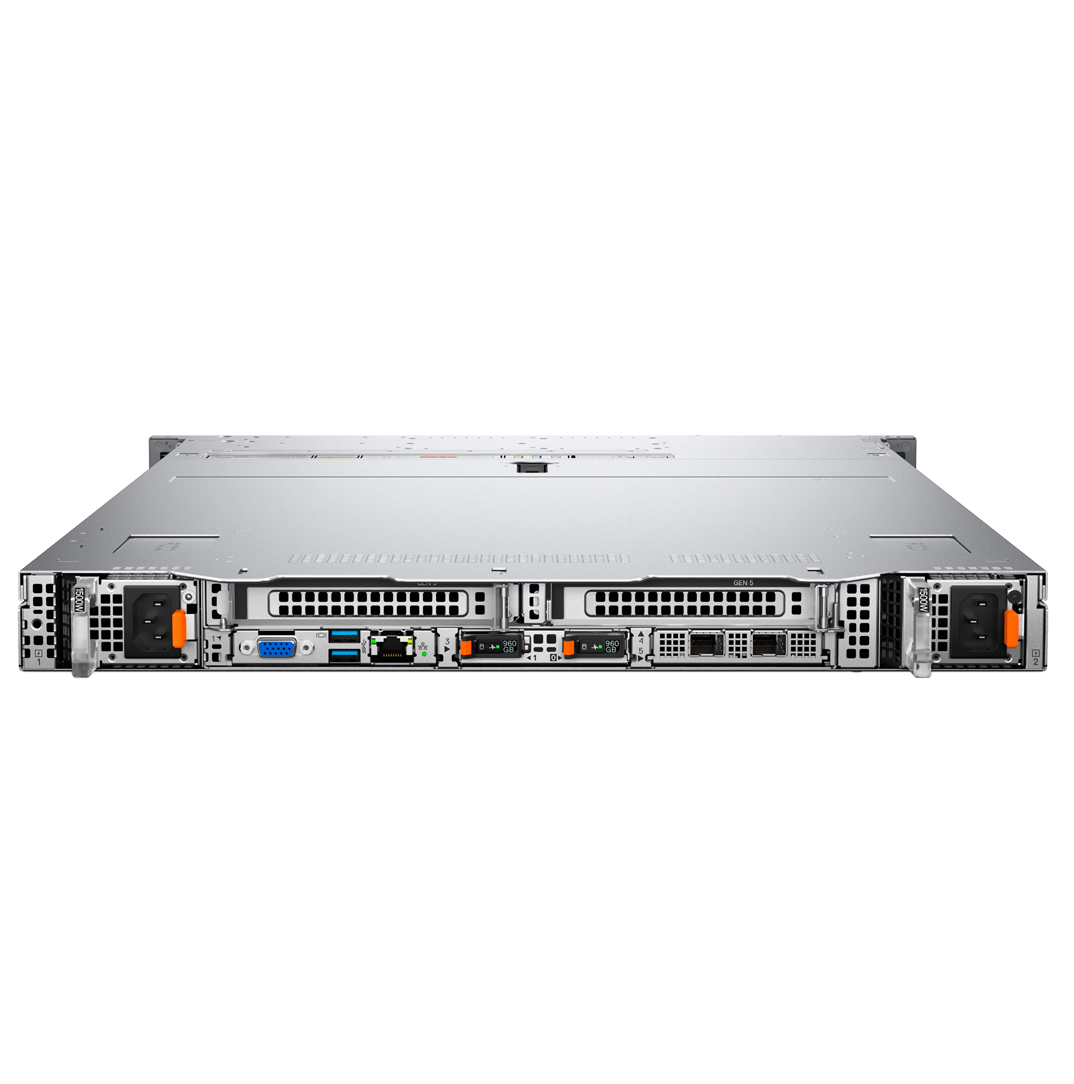

| RC5 (rear): 2x16FH(G5) + 1(x8 / x16 OCP) |
R2b | 1 | Full height | Processor 1 | PCIe Gen5 x16 (x16 connector) |
| R4b | 4 | Full height | Processor 0 | PCIe Gen5 x16 (x16 connector) | |
| BOSS | 3 | BOSS | Processor 0 | PCIe Gen3 x4 (1C connector) | |
| OCP | 5 | OCP | Processor 0 | PCIe Gen5 x16 (OCP 4C+ connector) | |
| RC6 (rear): 2x16LP(G5) + 1x16OCP(G5) + 1 x8/x16 OCP(G5) |
R2f | 1 | Low Profile | Processor 1 | PCIe Gen5 x16 (x16 connector) ) |
| 2 | OCP | Processor 1 | PCIe Gen5 x16 (OCP 4C+ connector) | ||
| R4a | 4 | Low Profile | Processor 0 | PCIe Gen5 x16 (x16 connector) | |
| BOSS | 3 | BOSS | Processor 0 | PCIe Gen3 x4 (1C connector) | |
| OCP | 5 | OCP | Processor 0 | PCIe Gen5 x16 (OCP 4C+ connector) | |
| RC8: 3x16LP(G5) + 1x8/x16 OCP(G5) + 1xBOSS |
R2c | 1 | Low Profile | Processor 1 | PCIe Gen5 x16 (x16 connector) |
| 2 | Low Profile | Processor 1 | PCIe Gen5 x16 (x16 connector) | ||
| BOSS | 3 | BOSS | Processor 0 | PCIe Gen3 x4 (1C connector) | |
| R4a | 4 | Low Profile | Processor 0 | PCIe Gen5 x16 (x16 connector) | |
| OCP | 5 | OCP | Processor 0 | PCIe Gen5 x16 (OCP 4C+ connector) | |
| RC10: 2x16LP(G5) + 1x8/x16 OCP(G5) +1xBOSS |
R2e | 1 | Low Profile | Processor 1 | PCIe Gen5 x16 (x16 connector) |
| BOSS | 3 | BOSS | Processor 0 | PCIe Gen3 x4 (1C connector) | |
| R4a | 4 | Low Profile | Processor 0 | PCIe Gen5 x16 (x16 connector) | |
| OCP | 5 | OCP | Processor 0 | PCIe Gen5 x16 (OCP 4C+ connector) |
- Riser RF1b support up to 2x OCP 3.0 slots
- Install OCP Blank or Riser Blank if the R1Fb is not installed.
- 1 Dedicated Slot
- Riser R2f supplys one more OCP 3.0 Slot
- 1 GbE x 4
- 10 GbE x 2 or 4
- 25 GbE x 2 or 4
- 100 GbE x 2
- 200 GbE x 2
I/O Supports either front or back, not both.
OCP is also supported in front of the system for some configurations, called the Floating OCP Paddle Card (FLOP). Additionally, the Front I/O OCP supports both internal latch and thumbscrew versions, providing flexibility in installation and maintenance.
BOSS-N1 DC-MHS
BOSS-N1 Interposer
Internal USB Boot

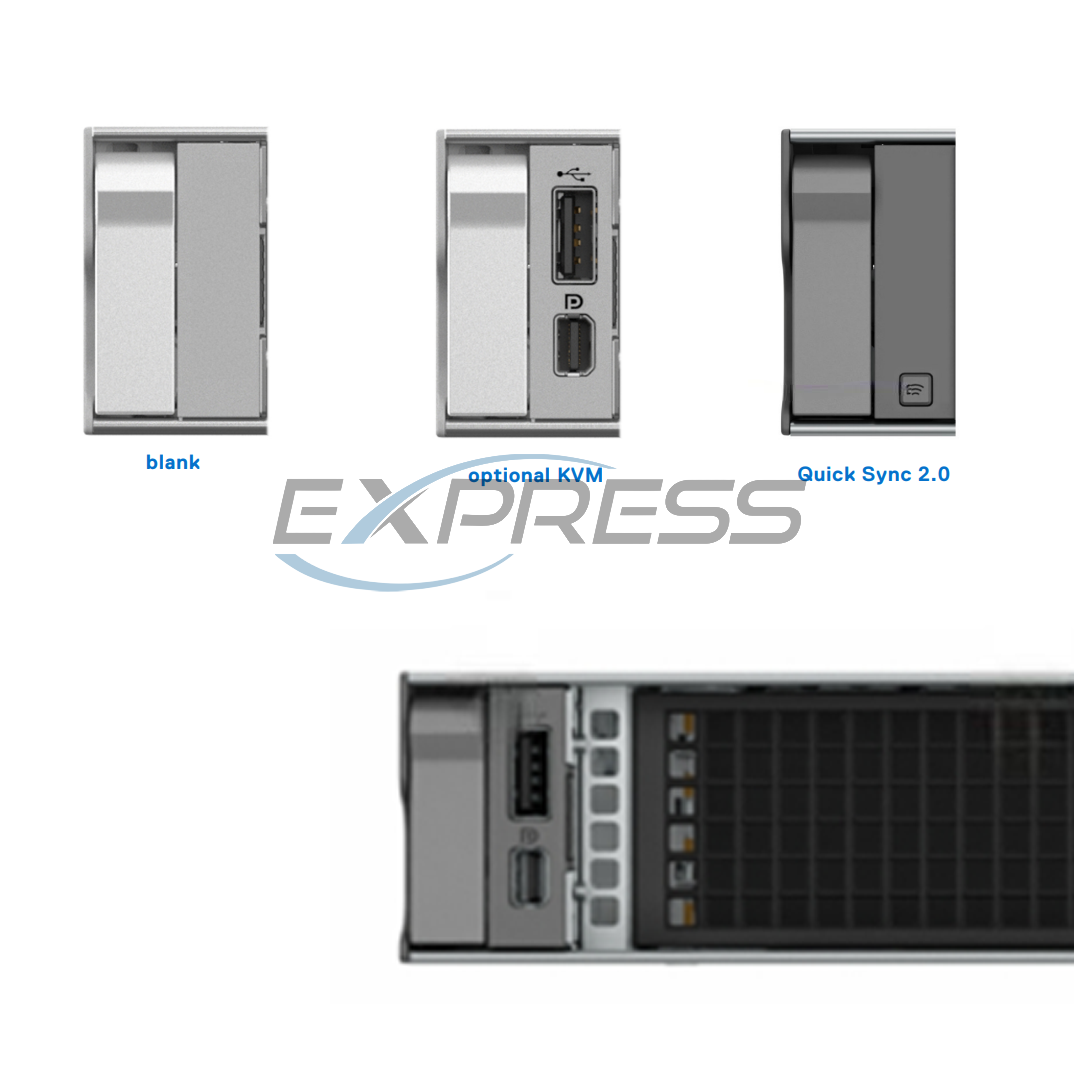

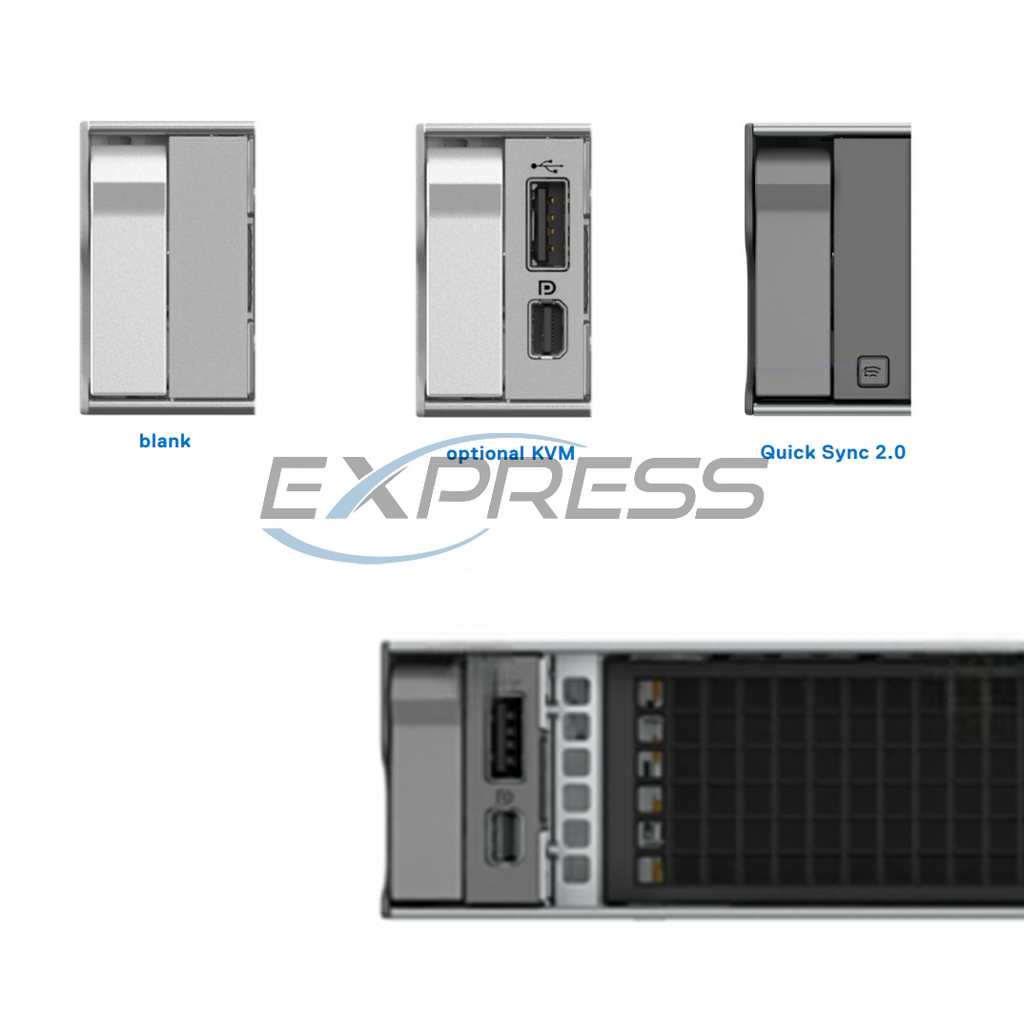

Secondary blank (Default)
Secondary with optional KVM Secondary with optional Quick Sync 2.0Not sure what power supply to use. Dell has a calculator for you
| Form factor | Output | Power cord |
|---|---|---|
| 60 mm | 800 W mixed mode | C13 |
| 1100 W mixed mode | C13 | |
| 1400 W -48 VDC | Lotes RN5T2 | |
| 1500 W mixed mode | C13 | |
| 1500 W mixed mode 277Vac & HVDC | APP/Saf-D-Grid | |
| 1800 W mixed mode | C13 |
- Width: 18.98"
- Length: 30.95"
- Height: 1.69"
- 8 x EDSFF E3.S 20.42 kg (45.02 pound)
- 8 x 2.5-inch SAS/SATA drives 19.26 kg (42.46 pound)
- 8 x 2.5-inch Universal 19.26 kg (42.46 pound)
- 10 x 2.5-inch SAS/SATA drives 19.7 kg (43.43 pound)
- 16 x EDSFF E3.S drives 19.58 kg (43.16 pound)
- 20 x EDSFF E3.S drives 20.18 kg (44.48 pound)

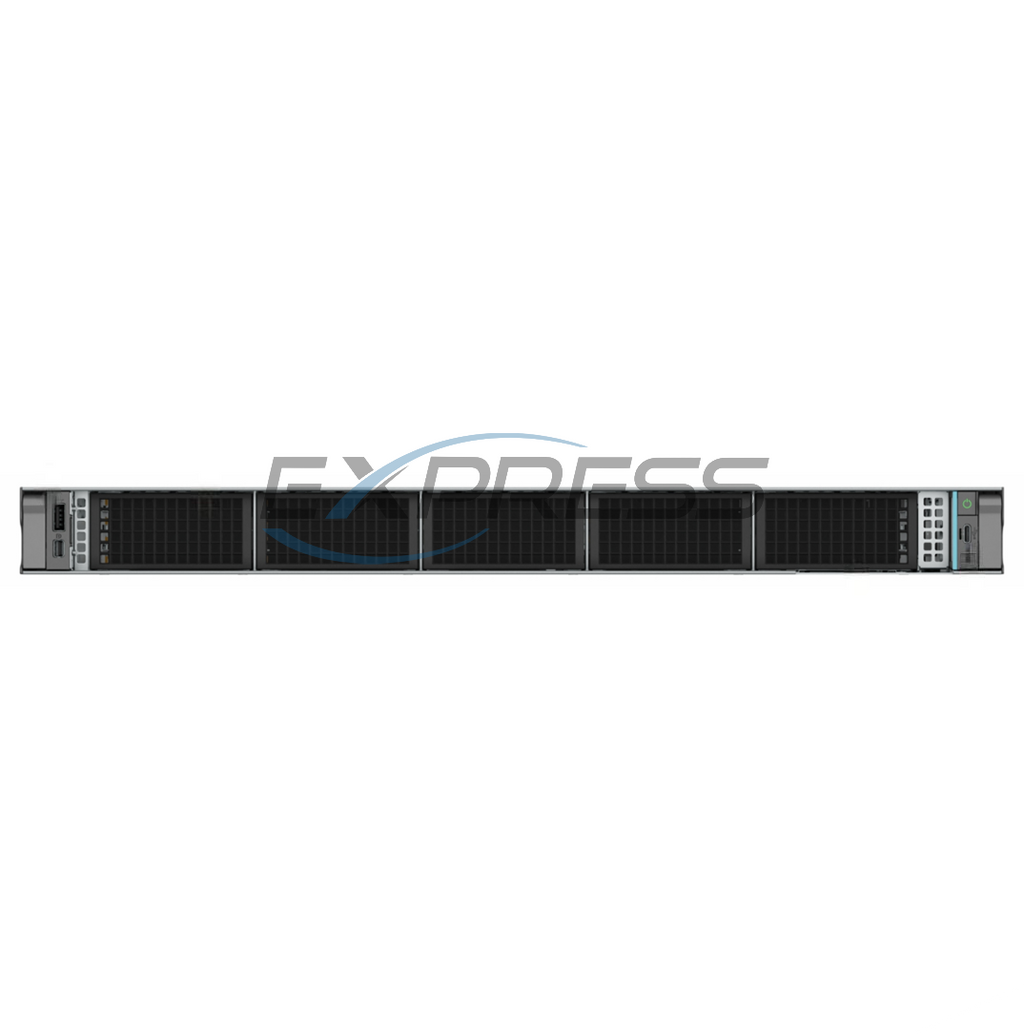

- 0 Drive 17.18 kg (37.87 pound)
